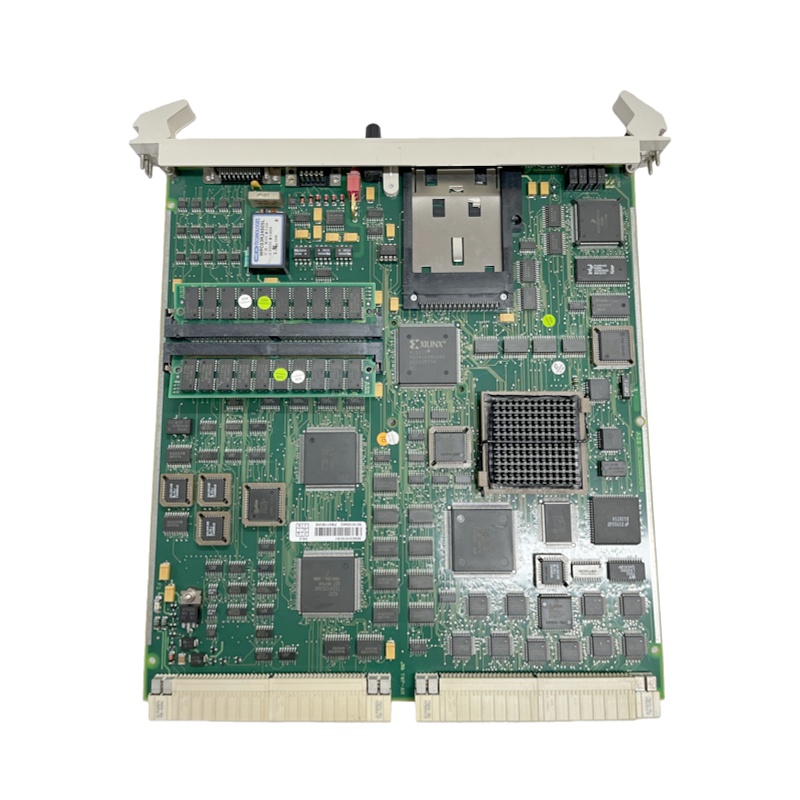

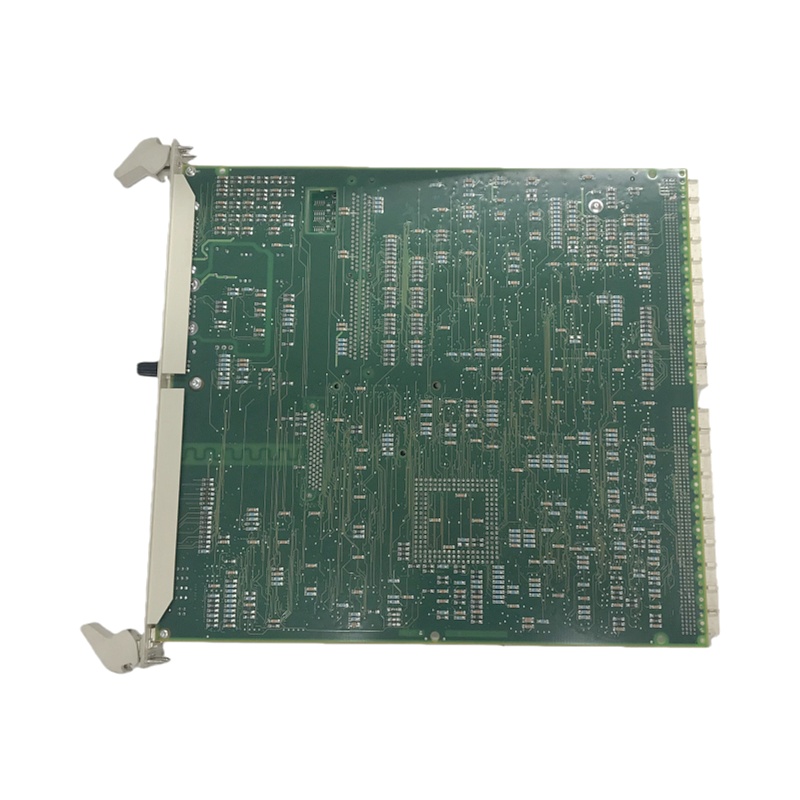

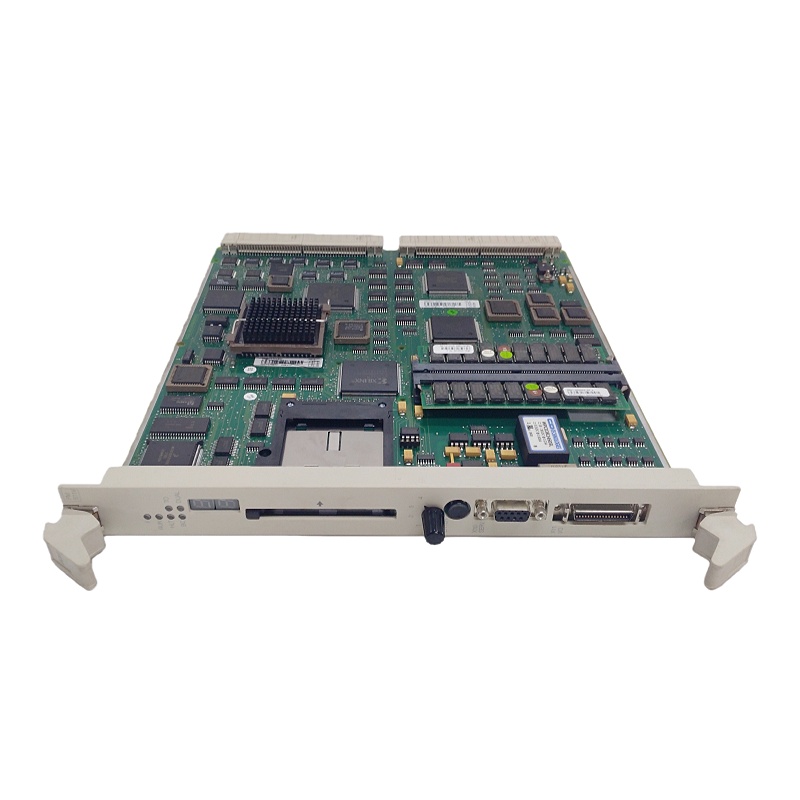

ABB 3BSE011180R1 SE04462921 PM511V08 Processor Module
ABB 3BSE011180R1 SE04462921 PM511V08
1. Overview
PM511V08 3BSE011180R1 is a high-performance processor module launched by ABB for its Advant OCS/Advant Master systems. Integrated with powerful data processing capabilities and a variety of communication interfaces, it is specially designed for the core control and monitoring of industrial automation and process control systems.
2. Main Parameters
- Model/Part Number: PM511V08 / 3BSE011180R1
- Processor: Motorola 68040 (high-performance)
- Memory: 8 MB ECC dynamic RAM
- Storage: PCMCIA slot for flash memory card
- Power Supply: 24 V DC, current about 0.5 A
- Dimensions: Approximately 100 mm × 50 mm × 30 mm
- Weight: Around 0.2 kg (about 200 g)
- Operating Temperature: -20 °C to +60 °C
- Communication Interfaces: Multi-protocol support including RS-232, Ethernet, Modbus RTU, Profibus DP, etc.
3. Product Features
- High Reliability: Adopting high-quality materials and ECC check memory, it can resist 30 g impact and 5 g vibration, making it suitable for harsh industrial environments.
- Multi-protocol Compatibility: Built-in with RS-232, Ethernet, Modbus RTU, Profibus DP and other interfaces, it can be flexibly connected to various fieldbuses and upper-level systems.
- Easy Maintenance: Modular design and plug-and-play PCMCIA card facilitate upgrade and maintenance, reducing downtime.
- Scalability: Supports expansion with additional function cards to meet specific requirements of different applications.
- Powerful Processing Capacity: Equipped with Motorola 68040 processor and 8 MB ECC RAM, it provides high-speed data processing and real-time control.
4. Structure and Composition
- Central Processing Unit (CPU + ECC RAM)
- PCMCIA Slot (for flash memory card or function expansion card)
- Power Supply Module (24 V DC input)
- Communication Interface Board (RS-232, Ethernet, Modbus RTU, etc.)
- Heat Dissipation and Protective Housing (complying with industrial protection grades)
5. Application Fields
- Power Industry: Key processes such as boiler control, steam turbine monitoring, and generator synchronization in power plants and substations.
- Oil and Gas: Control of refining, pipeline transportation, pumping stations and compressors, improving safety and efficiency.
- Process Control: Real-time monitoring and regulation of continuous production processes in chemical, metallurgical, papermaking and other industries.
- Smart Grid and Power Distribution: Realizing highly reliable distributed control and data acquisition.
————————————————————————————————————-
