ABB 81AB03 81AB03D-E

Overview
The ABB 81AB03 (also designated 81AB03D-E, order code GJR2392500R1210) is a high-resolution analog input module originally designed for the ABB Procontic and S100 distributed I/O systems. This module accepts standard analog field signals — including 0–20 mA, 4–20 mA, 0–10 V, and ±10 V — and converts them to digital values for PLC or DCS processing. Built for industrial longevity, the 81AB03 series remains widely used in legacy ABB installations, power plants, and process automation retrofits where reliability and signal integrity are paramount. The “D-E” suffix indicates an enhanced revision with improved noise filtering and extended temperature tolerance.

Key Features

• 8 differential or 16 single-ended analog input channels (jumper selectable)
• Input ranges: 0–20 mA, 4–20 mA, 0–10 V, ±10 V, ±5 V, 0–5 V
• 12-bit resolution (11 bits + sign for bipolar ranges)
• Conversion time: 2 ms per channel (typical)
• High common-mode rejection ratio (CMRR): >86 dB at 50/60 Hz
• Galvanic isolation: 500 V AC between field and system logic
• LED indicators per channel for overrange/underrange detection
• Compatible with Procontic S100, Advant OCS, and select MOD 300 systems
• Removable front connector (screw-type) for easy field wiring

Parameters (Plain Text Format)

• Number of inputs: 8 differential / 16 single-ended (user configurable)
• Analog input ranges (selectable):
  • Current: 0–20 mA, 4–20 mA
  • Voltage: 0–5 V, 0–10 V, ±5 V, ±10 V
• Resolution: 12 bits (4096 counts) for unipolar; 11 bits + sign for bipolar
• Accuracy: ±0.1% of full scale at 25°C; ±0.3% over full temperature range
• Temperature drift: ±50 ppm/°C (gain) , ±30 μV/°C (offset)
• Input impedance: 250 Ω (current mode) , >1 MΩ (voltage mode)
• Maximum input voltage: ±30 V DC (without damage)
• Maximum input current: 40 mA (current mode, protected)
• Common mode voltage: ±10 V maximum
• CMRR: >86 dB at 50 Hz, >90 dB at DC
• Conversion method: Successive approximation (SAR)
• Power supply: 5 V DC from backplane (120 mA typical) + 24 V DC field supply (80 mA)
• Operating temperature: 0°C to +60°C (32°F to 140°F)
• Storage temperature: -25°C to +85°C
• Dimensions (Height × Width × Depth): 100 mm × 30 mm × 120 mm (approx.)
• Weight: 0.18 kg

Structure & Composition

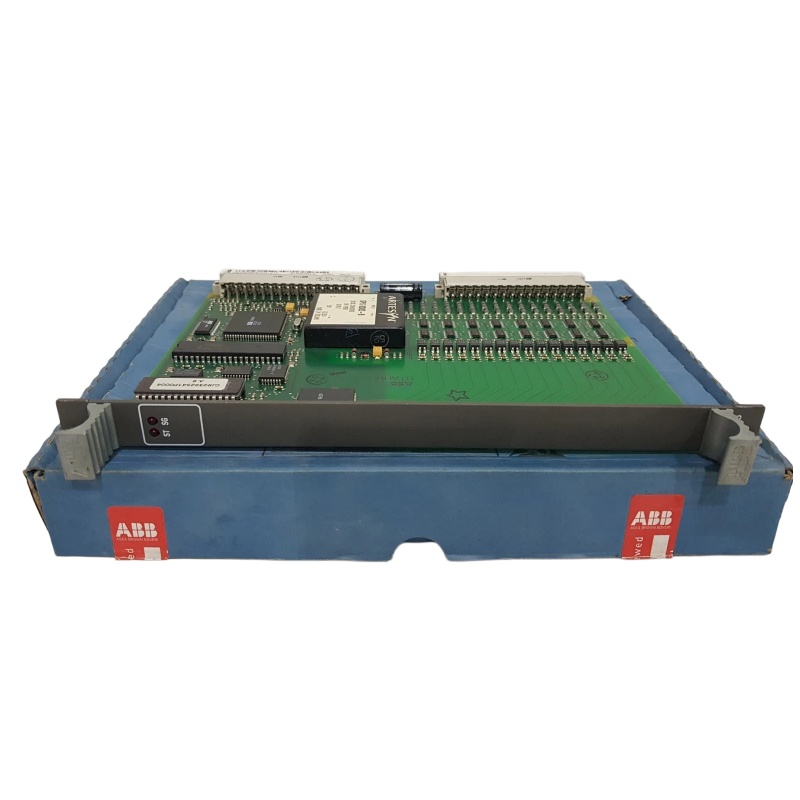

The 81AB03 module uses a single-slot Eurocard format (100 mm × 160 mm PCB) with a rigid metal ejector handle. The front panel houses a 25-pin D-sub female connector for field wiring (mating plug included) and eight red/green status LEDs. Internally, the board is organized into three functional zones:

• Analog front end: Precision voltage references, programmable gain amplifiers (PGAs), and input protection diodes for each channel
• Conversion section: 12-bit SAR ADC (Analog Devices AD574 or equivalent) with sample-and-hold circuit
• Isolation barrier: Three-port galvanic isolation using optocouplers and DC-DC converter (500 V AC)
• Backplane interface: 96-pin DIN 41612 male connector (type C) for Procontic/S100 bus communication
  A ground plane layer separates analog and digital sections to minimize crosstalk. The “D-E” revision adds ferrite beads on each input line for enhanced EMI suppression.

Applications

• Power plant monitoring (boiler feedwater flow, steam pressure transmitters)
• Chemical reactor temperature measurement (thermocouples with external converters)
• Water and wastewater treatment (pH sensors, dissolved oxygen probes)
• Legacy ABB Procontic system expansions or spare part replacements
• Retrofit projects where field wiring must remain unchanged but controller is upgraded
• Test bench data acquisition (load cells, strain gauges via signal conditioning)

Installation & Maintenance

• Mounting:
  • Insert module into any free slot of a Procontic S100 or Advant OCS rack
  • Ensure backplane power is OFF before insertion/removal
  • Secure with top and bottom ejector clips (push to lock)
• Wiring:
  • Use shielded twisted-pair cables (Belden 8760 or equivalent)
  • For current loops (4–20 mA): Connect signal + to channel input, signal – to common (AGND)
  • For voltage inputs: Connect signal + to channel input, signal – to AGND; tie shield to earth ground at one end only
  • Torque terminals on D-sub: 0.5 N·m (4.4 lb-in)
• Configuration:
  • Set input range via jumpers on the PCB (refer to manual 1KGT 150 733)
  • Configure channel mode (differential/single-ended) using DIP switch bank S1
  • In software (ABB MasterPiece 200 or MOD 300), map module address and scaling factors
• Maintenance:
  • Verify LED status: Green = normal operation; Red = input overrange (>105% of range) or underrange (<0% or -5%)
  • Clean the module annually using isopropyl alcohol and a soft brush (no compressed air into potentiometers)
  • Recalibration recommended every 24 months using a precision calibrator (e.g., Fluke 789)
  • Calibration procedure: Apply 0% and 100% signals, adjust onboard trimpots (R1 = gain, R2 = offset per bank)
• Troubleshooting:
  • Erratic readings → check shield grounding and 24 V field supply ripple (<50 mV)
  • All channels reading zero → verify backplane 5 V and field power; check if module is addressed in controller configuration
  • No communication → clean DIN 41612 pins with contact cleaner

Additional Information

• Part number breakdown:
  • 81AB03 = Base analog input module (8 diff/16 SE)
  • D = Enhanced revision (D = improved EMC filtering)
  • -E = Extended temperature range (tested to -25°C storage)
  • GJR2392500R1210 = ABB internal ordering code (replaces older GJR codes)
• Compatibility list:
  • Procontic S100 (all CPU versions)
  • Advant OCS 110, 210, 410
  • MOD 300 (with adapter bracket)
  • Not compatible with AC500 or System 800xA without gateway module (CI854)
• Certifications: CE marked (EMC Directive 2014/30/EU), UL 508 (pending verification for older lots), RoHS compliant (lead-free since 2006 production)
• Obsolete status: Phased out in 2012; new-old-stock (NOS) and refurbished units available through ABB Global Parts (service code: ABB-CSM-81AB03). For new designs, replace with ABB AI810 or AI880 (System 800xA).
• Warranty: 12 months for refurbished units (30 days for NOS electromechanical components)
• Accessories included:
  • 25-pin D-sub female connector with screw terminals (part# 3BSE013850R1)
  • Strain relief clamp
  • Identification label sheet
• Documentation references:
  • User manual: 1KGT 150 733 (English, 48 pages)
  • Procontic I/O Hardware Guide: 3BSE020923
  • Calibration instruction: 1KGT 150 734
