1. Overview

2. Specifications

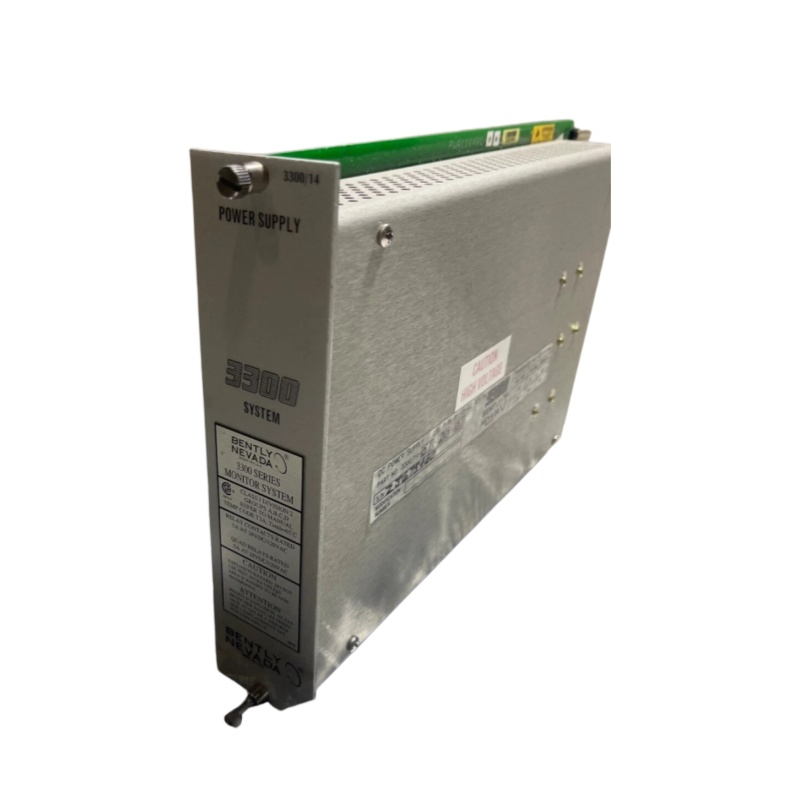

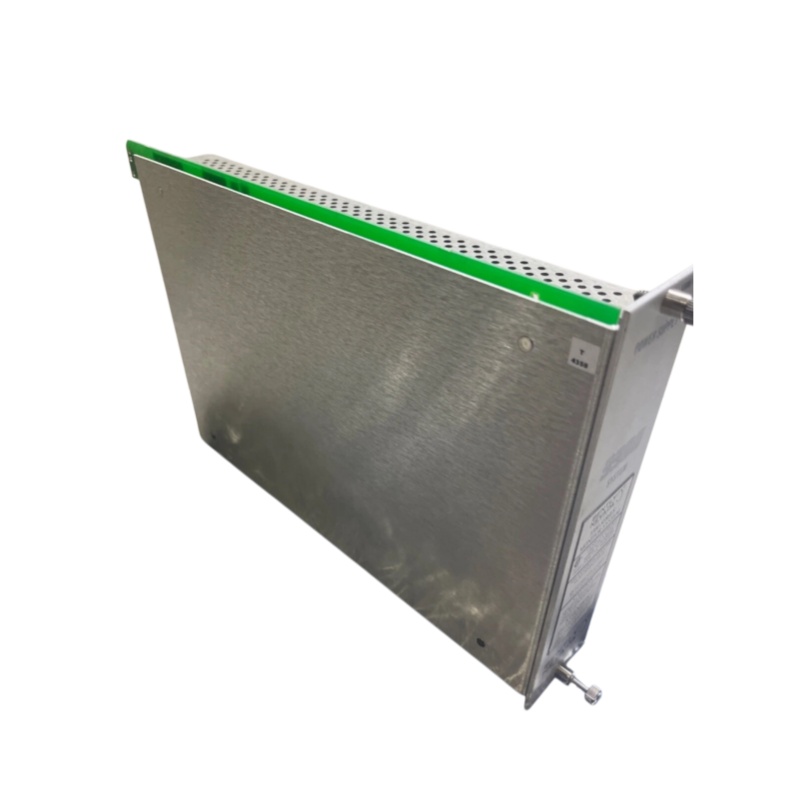

• Model: 3300-14-01-20-01
• Power Supply Specifications: Specifically designed for industrial automation systems to provide stable power output
• Dimensions: 2.0″ x 8.0″ x 13.0″ (5.1 cm x 20.3 cm x 33.0 cm)
• Weight: Approximately 5 lbs (2.3 kg)
• Operating Temperature Range: Suitable for industrial environments (specific values refer to the detailed specification sheet)

3. Product Features

• High Reliability: Adopting Bently Nevada’s advanced technology to ensure continuous and stable operation in harsh industrial environments.
• High Precision: Providing accurate power support to guarantee the precision of vibration monitoring sensors.
• Easy Installation: Standardized design, compatible with other modules of the Bently Nevada 3300 system, and simple to install.
• Modular Design: Facilitating system expansion and maintenance, supporting quick replacement and upgrading.

4. Structure and Composition

• Power Transformer and Rectifier: Convert input voltage into stable DC power required by the system.
• Filtering and Voltage Stabilizing Circuit: Ensure the purity and stability of output voltage, preventing voltage fluctuations from affecting sensor data.
• Interface Panel: Provide electrical connection interfaces with the system host and sensors.
• Heat Dissipation System: Built-in heat dissipation devices (such as heat sinks) to ensure temperature control during long-term operation.

5. Application Fields

• Petrochemical Industry: Provide monitoring power for key mechanical equipment to prevent failures.
• Power Plants: Monitor the operating status of large rotating machinery to ensure the safe operation of power stations.
• Aerospace: Provide power support in environments with high precision requirements.
• Manufacturing Industry: Widely used in vibration monitoring systems in various industrial facilities.

6. Installation and Maintenance

• Installation: Usually installed in a standard 19-inch rack, used with other modules of the 3300 series, and rack installation specifications must be followed.
• Maintenance: The modular design makes maintenance relatively simple. It is recommended to regularly check the power output voltage and connection status to ensure no looseness or corrosion.
• Environmental Adaptation: Extreme humidity and high-temperature environments should be avoided, and the heat dissipation device should be kept well-ventilated.
