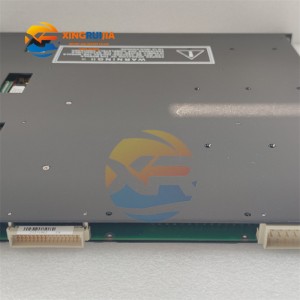

The modules of the safety control system of TRICONEX 3703E

Short Description:

The TRICONEX 3703E is a high-performance module designed for industrial automation and safety control systems. Featuring Triple Modular Redundancy (TMR) technology, it ensures continuous operation even in the event of a single module failure. Its modular design and robust performance make it widely applicable in industries requiring high reliability and safety, such as oil and gas, power generation, nuclear energy, chemical processing, and more.

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Brand: TRICONEX

Manager: Jinny

E-mail: sales5@xrjdcs.com

Tel: + 86-15359273791

( WhatsApp )Wechat: + 86-15359273791

warranty: one year

In stock: In stock

Send email to us Download as PDF

Product Detail

Product Tags

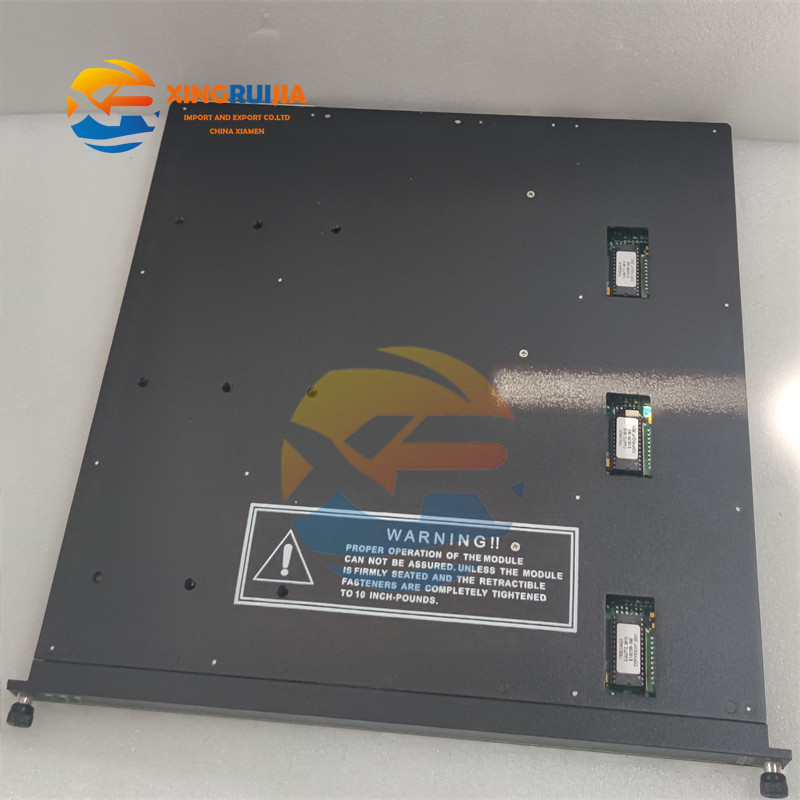

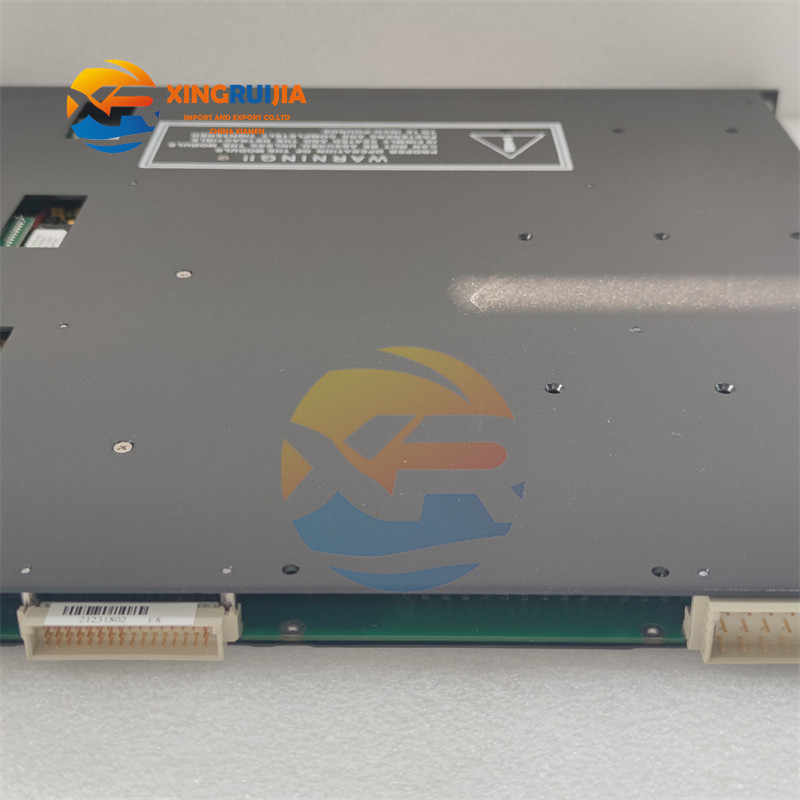

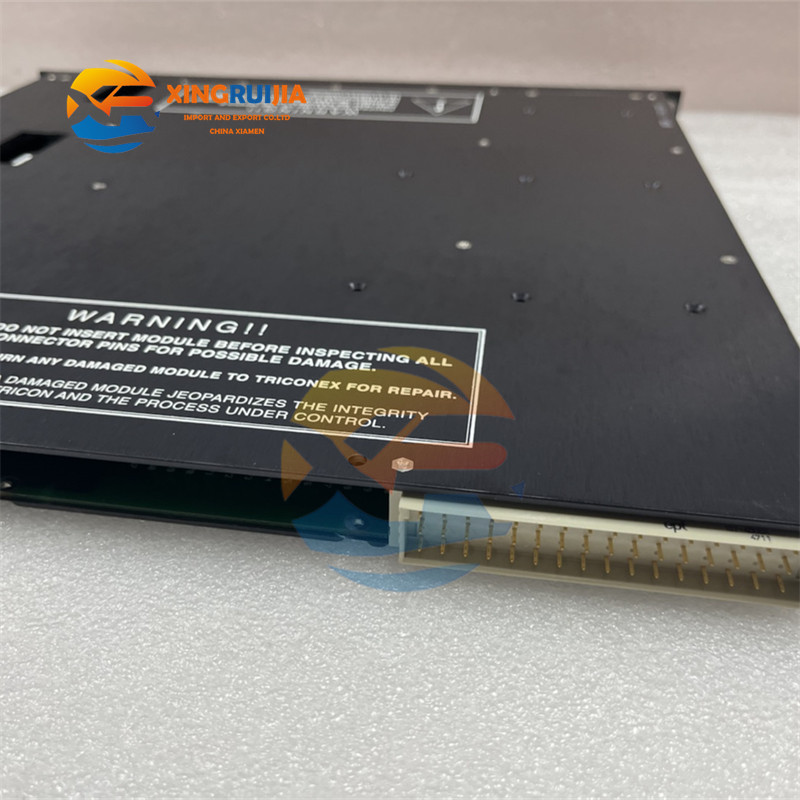

TRICONEX 3703E

1. Overview

2. Technical Parameters

Parameter	Specification
Input Voltage	24V DC, supports 0-5V or 0-10V analog signal input
Operating Temperature	-40°C to 70°C (suitable for harsh environments)
Input Channels	Up to 16 analog input channels (supports differential and isolated inputs)
Resolution	12-bit (accuracy up to 0.05%)
Input Update Rate	50 ms
Input Impedance	Min. 30 MΩ (DC), isolation resistance of 20 kΩ
Communication Interfaces	RS232, RS485, HART, Modbus, Ethernet
Processor	32-bit RISC processor with 1MB–16MB memory, supports SSD/HDD storage

3. Key Features

High Reliability: TMR design ensures fault tolerance and continuous operation.
Safety Compliance: Certified for IEC 61508 SIL 3, ideal for safety-critical applications.
Modular Design: Easy expansion and maintenance with flexible configurations.
Versatility: Supports multiple communication protocols for diverse industrial needs.
User-Friendly: Simplified programming with broad industrial standard compatibility.

4. Structure and Components

Physical Design: Rack-mounted module, compatible with Tricon safety system chassis and DIN rail installation.
Internal Components: Includes analog input module, signal conditioning, ADC (Analog-to-Digital Converter), microprocessor, and communication module.
Redundancy: TMR technology enhances fault tolerance and system reliability.
Isolation: Analog inputs feature isolation to minimize electromagnetic interference and improve accuracy.

5. Applications

The TRICONEX 3703E is widely used in:

Oil & Gas: Monitoring and controlling critical processes for operational safety.
Power Industry: Ensuring reliability in power generation and distribution.
Chemical Processing: Safeguarding temperature, pressure, and flow monitoring.
Nuclear Energy: Critical safety monitoring in nuclear power plants.
Rail Transportation: Safety-critical control in rail systems.
Other Industries: Including metallurgy, mining, and paper manufacturing where high safety standards are required.

————————————————————————————————————————–
