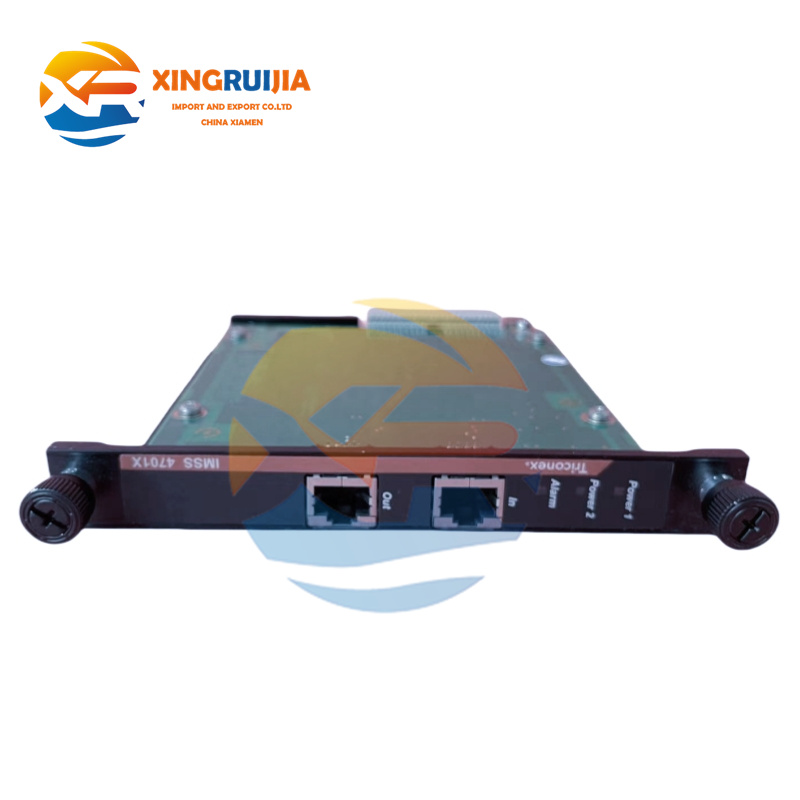

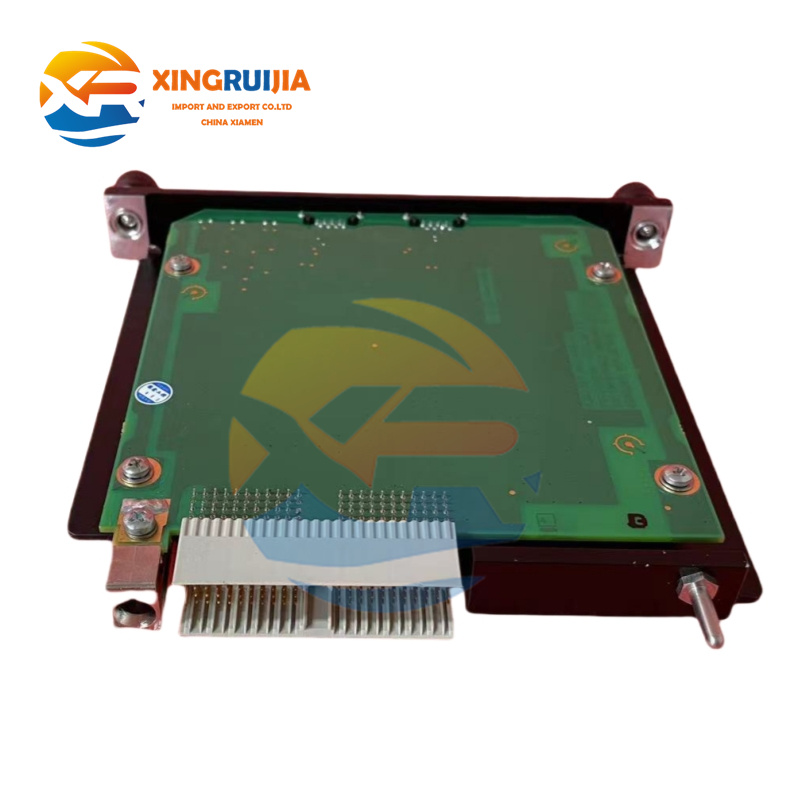

TRICONEX IMSS 4701X

The TRICONEX IMSS 4701X is a specialized I/O bus interface module designed for Triconex Safety Instrumented Systems (SIS). Its primary function is to connect field devices for signal acquisition and control. Featuring a Triple Modular Redundancy (TMR) architecture, the module ensures high reliability and availability. It supports multiple I/O types (digital and analog input/output), provides comprehensive online diagnostics, allows hot-swap maintenance, and is compatible with other Triconex system modules.

Product Parameters

Key Features

• High Reliability & Availability: TMR architecture ensures continuous operation even during failures.
• Multi-I/O Support: Compatible with digital and analog signals for diverse industrial applications.
• Real-Time Diagnostics: Monitors module status and detects faults proactively.
• Hot-Swap Maintenance: Enables seamless replacement without system shutdown.
• Strong Compatibility: Integrates seamlessly with other Triconex modules.
• Anti-Interference Design: Robust electronics ensure stability in harsh environments.
• Fast Response: Processes sensor signals in real time for precise control.
• Programmable Flexibility: Customizable to meet specific control requirements.

Structure & Components

The TRICONEX IMSS 4701X comprises:

1. Main Processor: Executes system diagnostics and user-programmed control logic.
2. Communication Module: Supports protocols like Ethernet/IP, Modbus, TCP for data exchange.
3. Interface Module: Connects HART smart devices to PC-based host software.
4. I/O Modules: Includes digital/analog input/output modules for signal processing.
5. Power Module: Supplies logic power to the chassis.
6. Chassis: Accommodates modules (main/expansion/RXM types).

Applications

The TRICONEX IMSS 4701X is widely used in high-safety industries, including:

• Oil & Gas: Refining and chemical processing in hazardous environments.
• Power Generation: Automation control for enhanced safety and efficiency.
• Nuclear: SIS for reactor safety in nuclear plants.
• Pharmaceutical: Precision automation in drug manufacturing.
• Transportation: Rail and aerospace control systems.
• Energy/Metallurgy/Paper/Textile/Water: Automation for productivity and safety.

————————————————————————————————————————–
