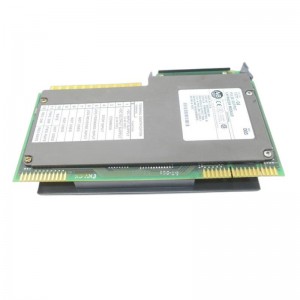

Allen-Bradley 1336-B010-EAD-F Digital Control Board
Allen-Bradley 1336-B010-EAD-F
1. Overview
The Allen-Bradley 1336-B010-EAD-F is part of the 1336 Series drives under Rockwell Automation. Renowned for its modular design, easy integration, and reliable performance, this series of drives is commonly used to power AC motors, enabling speed regulation and energy efficiency management.
2. Specifications
|
Parameter
|
Specification
|
|---|---|
|
Model Number
|
1336-B010-EAD-F
|
|
Output Power
|
10 HP (approximately 7.5 kW)
|
|
Voltage Rating
|
380/415/460 V AC
|
|
Output Frequency Range
|
0-250 Hz
|
|
Power Factor
|
0.92 (approximate value)
|
|
Efficiency
|
96.5% (approximate value)
|
|
Operating Temperature Range
|
-25℃ – 55℃
|
|
Cooling Method
|
Forced Air Cooling
|
|
Communication Interface
|
Supports Ethernet/IP and RS-232/RS-485
|
|
Control Modes
|
Speed Control, Torque Control, Position Control
|
3. Product Features
- High Energy Efficiency: Optimized power conversion efficiency effectively reduces energy loss.
- Wide Frequency Output Range: Supports a wide output range of 0-250Hz to meet various speed requirements.
- Modular Design: Easy to integrate into existing PLC systems and supports hot-swapping.
- High Robustness: Designed for harsh industrial environments with strong anti-interference capability.
4. Structure and Composition
- Power Module: Responsible for efficient power conversion and output.
- Control Module: Built-in microprocessor for executing control algorithms.
- Communication Interface: Includes Ethernet/IP ports for easy data exchange with PLCs.
- Cooling System: Integrated fan for heat dissipation, ensuring long-term stable operation of the equipment.
5. Application Areas
- Industrial Automation: Used in CNC machine tools, packaging machinery, conveyor belts, etc.
- Building Automation: Adjusts the speed of fans and pumps to achieve energy-saving control.
- Water Treatment Systems: Drives water pumps to realize variable frequency speed regulation.
- Energy Management: Used in energy equipment that requires precise speed control.
6. Installation and Maintenance
Installation
It is recommended to install in a well-ventilated environment away from direct sunlight. Strictly follow the electrical drawings during wiring.
Maintenance
Regularly check if there is dust accumulation on the cooling fan and heat sink, and clean the air vents to prevent overheating. Inspect the connection reliability of wiring terminals and communication interfaces.
Troubleshooting
Utilize the built-in diagnostic function to quickly locate faults by reading fault codes through HMI or PLC.
————————————————————————————————————-
