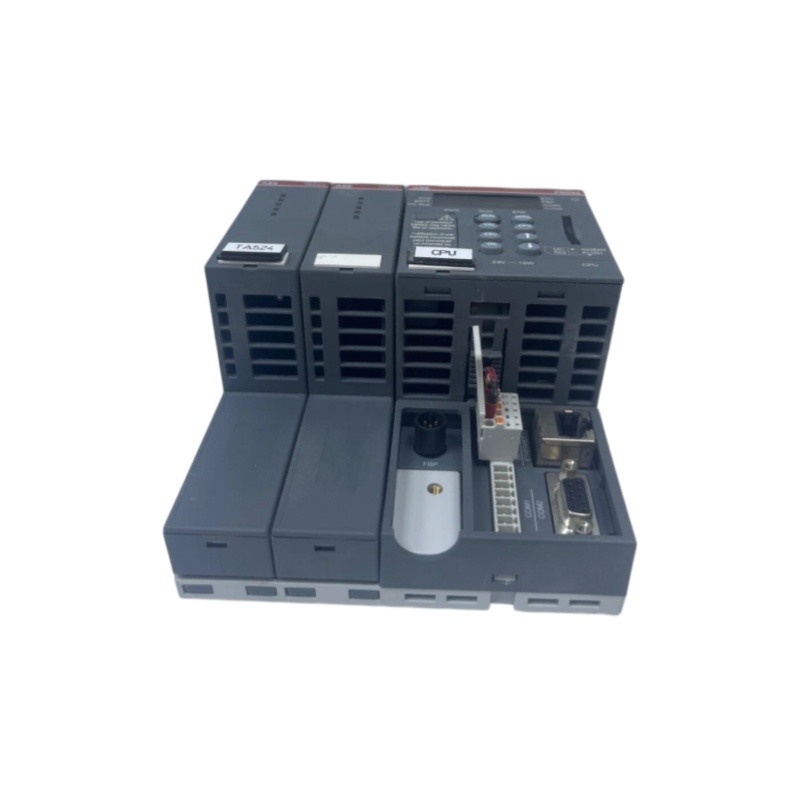

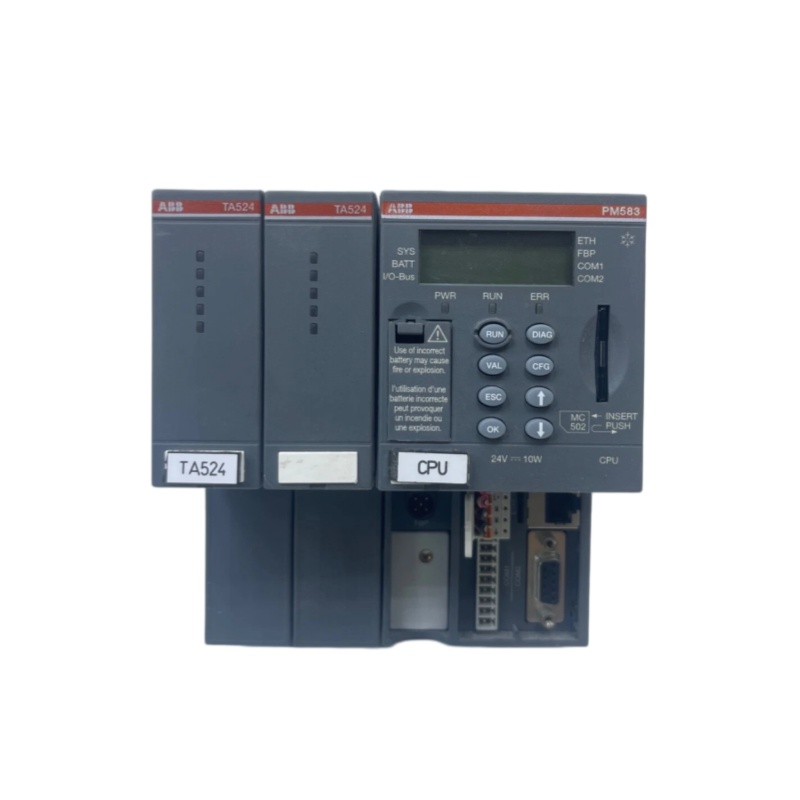

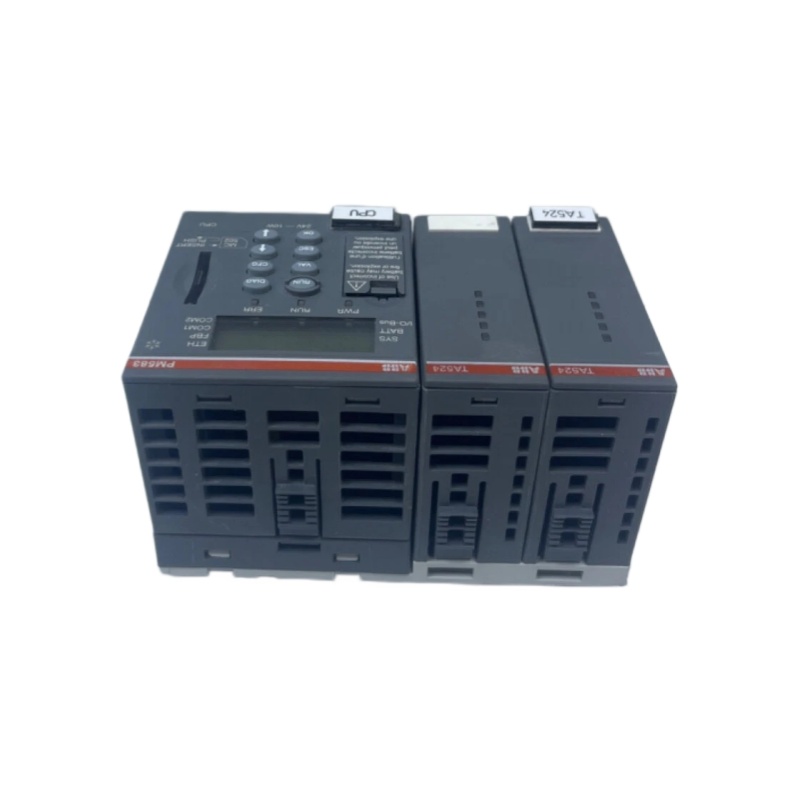

ABB PM583-ETH-XC 1SAP340300R0271 TA524 Processor Module
ABB PM583-ETH-XC 1SAP340300R0271 TA524
1. Product Overview
1.1 ABB PM583-ETH-XC 1SAP340300R0271
ABB PM583-ETH-XC is a programmable logic controller (PLC) processor module belonging to the AC500 series. As the core CPU component of the AC500 product family, this module is specially developed for industrial automation control scenarios, delivering flexible and reliable control solutions for industrial sites.
1.2 TA524
TA524 is a matched dummy coupler module for the AC500 series. It is mainly applied to cover unused communication module slots on the terminal base, protecting the terminal base from dust intrusion and accidental physical contact. As a standard component in packaged assemblies, TA524 is generally supplied together with the PM583-ETH-XC module.
2. Technical Specifications
2.1 PM583-ETH-XC 1SAP340300R0271
|
Parameter Item
|
Specification Value
|
|---|---|
|
Model Number
|
PM583-ETH-XC 1SAP340300R0271
|
|
Total Memory Capacity
|
1 MB (9728 kB total storage)
|
|
User Program Memory
|
6144 kB
|
|
User Data Memory
|
1024 kB
|
|
Processor Clock Frequency
|
84 MHz
|
|
Power Supply Voltage
|
24 V DC
|
|
Interfaces
|
Ethernet, 2×RS232/485, FBP
|
|
Display Unit
|
LCD screen with 8 function keys
|
|
Storage Expansion
|
SD card slot
|
|
Mounting Type
|
DIN rail mounting (15 mm / 7.5 mm)
|
2.2 TA524 Dummy Coupler Module
|
Parameter Item
|
Specification Value
|
|---|---|
|
Model Number
|
TA524
|
|
Function
|
Cover unused communication module slots
|
|
Ingress Protection Rating
|
IP20
|
|
Operating Temperature
|
0℃ ~ +60℃
|
|
Storage Temperature
|
-40℃ ~ +70℃
|
|
Max. Operating Altitude
|
2000 m
|
|
Product Weight
|
Approx. 0.08–0.12 kg
|
|
Supported Programming Software
|
PS501-PROG Control Builder Plus
|
3. Product Features
3.1 Features of PM583-ETH-XC
- Multi-communication Interfaces: Equipped with 2 integrated RS-232/RS-485 serial ports and 1 Ethernet port, supporting convenient connection with operator stations, engineering stations and external peripheral devices.
- High-performance Processing: Built-in 84 MHz processor delivers fast response performance; the controller processing time reaches 0.000002 ms (refer to PM592 official data).
- Redundant Operation Design: The Ethernet port supports redundant mode configuration to improve overall industrial system availability and operational stability.
- LCD Diagnosis Function: Configured with an LCD display and 8 physical function keys for real-time system status monitoring and on-site fault diagnosis.
- XC Extreme Environment Version: The XC variant is customized for harsh industrial environments, enabling stable operation under extreme temperature fluctuation and mechanical vibration conditions.
- Powerful Expandability: Supports centralized expansion of up to 10 I/O modules, with a maximum of 320 I/O points for system expansion.
3.2 Features of TA524
- IP20 Ingress Protection: Realizes standard IP20 protection level for idle module slots on the terminal base.
- Physical Safety Protection: Avoids accidental physical contact with unused slots and prevents secondary damage to electrical equipment.
- Dustproof Mechanical Cover: As an official AC500 system accessory, it isolates terminal bases from industrial dust and particulate contamination.
- Standard Matching Component: A standard packaged accessory, sold and applied matched with the PM583-ETH-XC processor module for complete system assembly.
4. Structure & System Composition
4.1 Physical Structure
4.1.1 Component Composition of PM583-ETH-XC
- CPU processing unit
- LCD display screen
- Ethernet port (RJ45 connector)
- Serial communication port (RS-232/RS-485, DB9 connector)
- FBP fieldbus interface
- SD card expansion slot
- Terminal connection interface
- DIN rail mounting buckle
4.1.2 Component Composition of TA524
- Integrated plastic housing cover
- Fixed clamping buckle structure
- Filler module for covering idle communication slots
4.2 System Matching Relationship
The PM583-ETH-XC module supports compatible assembly with the following official ABB accessories to build a complete control system:
- Communication Modules: CM579-ETHCAT and other Ethernet communication cards
- Terminal Bases: TB511-ETH-XC and other matched terminal modules
- Power Supply Modules: PE1315A and other DC power supply modules
- I/O Modules: S500 / S500-eCo series digital and analog I/O modules
5. Application Fields
This series of modules is widely deployed in full-scenario industrial automation fields, covering the following mainstream industries:
- Renewable Energy: Wind power generation control, solar power station monitoring
- Water Treatment Industry: Water supply system automation, water supply safety monitoring and guarantee
- Construction Machinery: Engineering machinery control, lifting equipment automatic operation
- Mining Industry: Mining equipment monitoring, roadway ventilation automatic control
- Power System: Substation automation, power distribution monitoring and control
- Marine & Port Industry: Port machinery control, ship integrated automation system
- Tunnel & Railway Transportation: Tunnel intelligent lighting control, railway signal linkage system
- Robotics Industry: Controller unit for industrial robots
- General Industrial Automation: Mechanical manufacturing, full-process production line automatic control
————————————————————————————————————-
