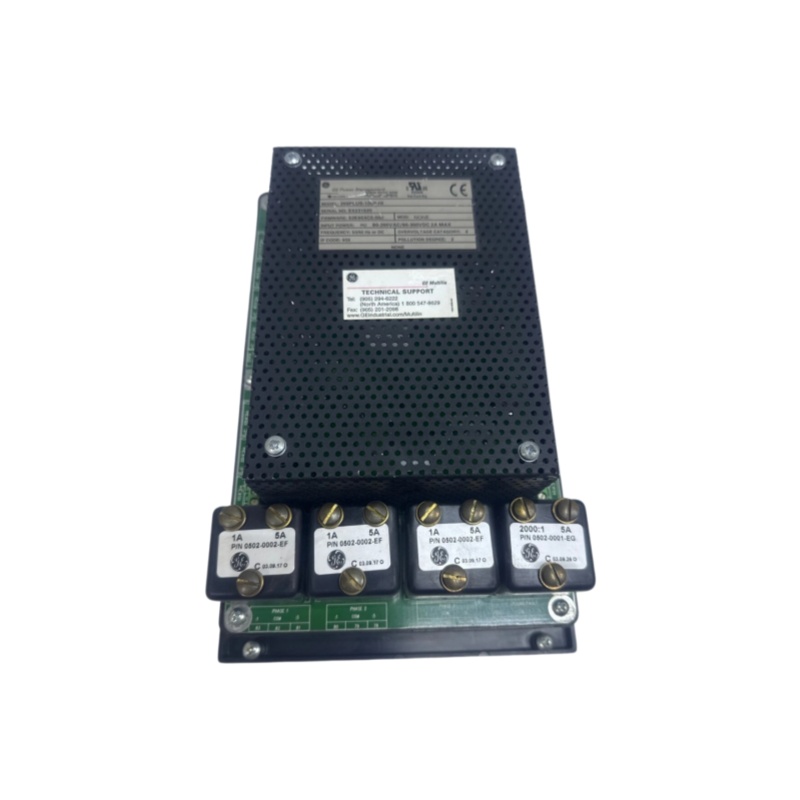

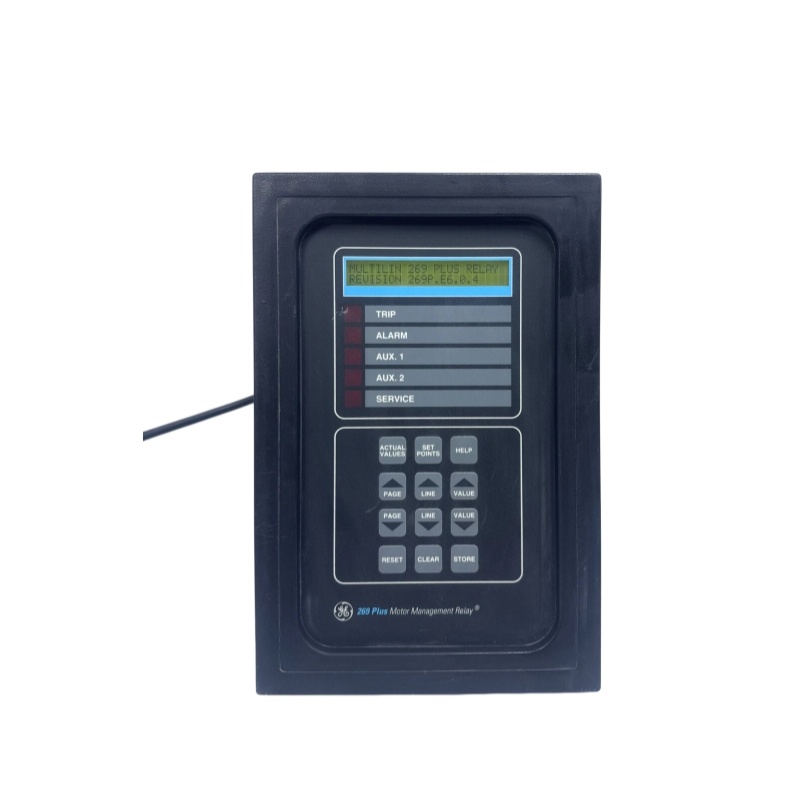

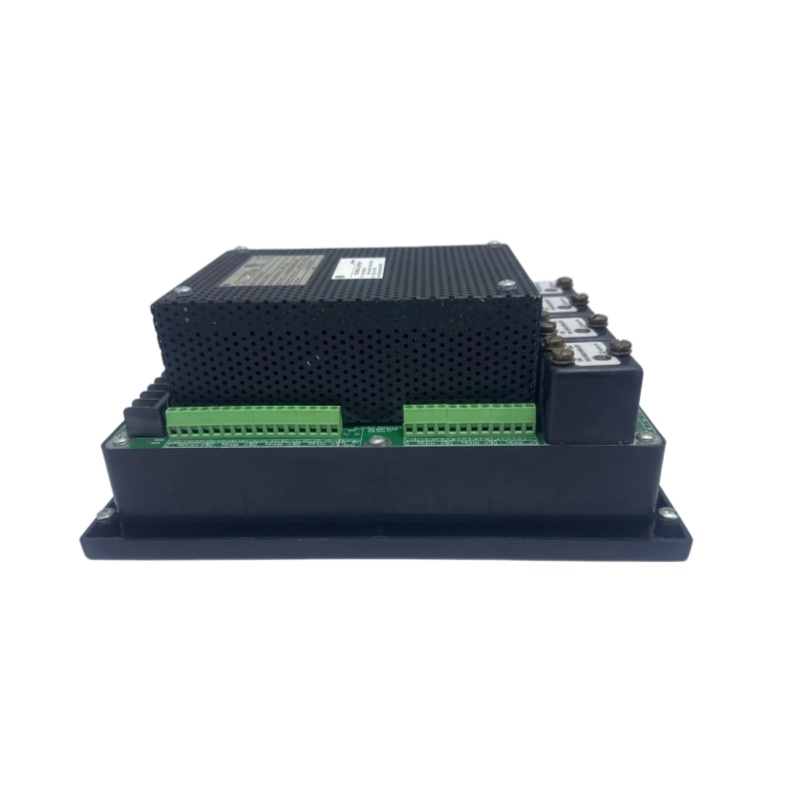

GE 269PLUS-100P-HI Motor Management Relay

Short Description:

The GE 269PLUS-100P-HI is a high-performance motor management relay manufactured by GE Multilin, specially designed for the protection of medium-sized AC motors.

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Brand: GE

Manager: Jinny

E-mail: sales5@xrjdcs.com

Tel: + 86-15359273791

( WhatsApp )Wechat: + 86-15359273791

Warranty: one year

In stock: In stock

Send email to us Download as PDF

Product Detail

Product Tags

GE 269PLUS-100P-HI

1. Overview

The GE 269PLUS-100P-HI is a high-performance motor management relay manufactured by GE Multilin, specially designed for the protection of medium-sized AC motors. Featuring comprehensive motor protection functions and flexible configuration options, this product is widely applied in the field of industrial automation. The relay is equipped with 100-ohm Platinum Resistance Temperature Detectors (RTD) to monitor the real-time temperature status of motors.

2. Technical Specifications

Parameter Item	Specification
Input Signal Type	Platinum Thermal Resistance
Output Signal Type	0-10 V, 4-20 mA
Resolution	16-bit
Sampling Frequency	100 Hz
Power Supply Voltage	90-300 VDC / 80-265 VAC
Rated Voltage	100 V AC
Rated Current	100 A
Operating Temperature Range	-25°C to +60°C
Ingress Protection Rating	IP65
Product Dimensions	11.40 in × 7.50 in × 16.00 in (Width × Height × Depth)
Weight	7.75 lbs
Warranty Period	3 Years

3. Product Features

3.1 Protection Functions

Overload Protection: Supports 8 standard overload curves or custom overload curve configuration via the FlexCurve function
Short Circuit Protection
Ground Fault Protection
Locked Rotor Protection
Stall Protection
Under Voltage Protection
Overheating Protection (Based on RTD temperature detection)
Phase Loss Protection
Mechanical Jam Detection
Start Time Limitation
Operation Time Limitation
Phase Reversal Protection

3.2 Control Functions

Equipped with multiple precise control functions including soft start, soft stop, speed limiting and reverse operation. It supports two working modes: Actual Value Mode for viewing real-time motor operating parameters, and Setpoint Mode for viewing and modifying device setting parameters.

3.3 Configuration Capabilities

12 programmable RTD inputs
5 factory preset digital inputs
1 programmable analog input
4 output relays
Local operation and setting via physical buttons

4. Structure and Composition

4.1 Input Interfaces

The device is equipped with complete input terminals and detection components, including instrument communication port, spare input, differential relay input, speed switch input, programming access jumper/key switch, external reset button, emergency restart key switch, 6 stator RTDs, 4 additional RTDs (12 programmable RTDs in total), ground fault current transformer (CT) and phase current transformer (CT), as well as power terminals.

4.2 Output Interfaces

4 output relays
RS-232 communication interface
RS-485 communication interface

4.3 Physical Structure

Housing Material: Aluminum alloy
Optional Configuration: Conformal coating for harsh environment adaptation
Installation Method: DIN rail mounting

5. Application Fields

Application Field	Specific Applications
Industrial Automation	Pump stations, fans, conveyors, compressors, machine tools
Energy Industry	Mining, metallurgy, oil and gas, electric power, water conservancy
Heavy Equipment	Control of high-voltage equipment such as high-pressure blowers, pumps and rolling mills
Aerospace	Aerospace motor protection
Medical Equipment	Surgical equipment, monitors, diagnostic equipment
Commercial Display	Advertising machines, information release screens, conference display screens
Education and Training	Teaching equipment, training systems, demonstration systems
