GE 531X305NTBAPG1 NTB/3TB

Product Overview

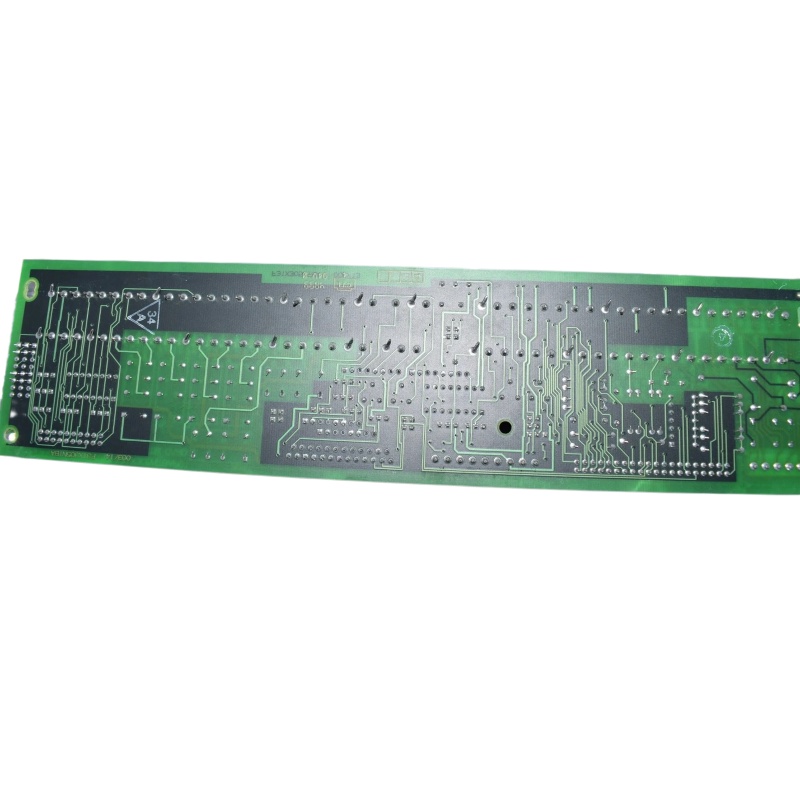

The GE 531X305NTBAPG1 is an NTB/3TB terminal board associated with GE’s EX2000 excitation system and 531X-series drive equipment. It is installed within the drive or exciter cabinet and provides connection points for a range of external signal-level I/O, together with passive interface circuitry.

As an interface-oriented board, the 531X305NTBAPG1 helps organize connections between the control electronics, power supply circuits, encoder devices, and external equipment. It is also identified in product documentation and catalogs as an AC/DC2000 terminal board.

Technical Parameters

The detailed electrical configuration should always be checked against the applicable GE manual and the exact installation before replacement.

Key Features

• Designed for signal-level I/O termination within compatible GE drive or excitation cabinets.
• Provides an interface between external equipment and control-system electronics.
• Supports a differential A-quad-B encoder interface with a marker channel.
• Jumper configuration allows encoder applications using different supply levels, including 5 V and 15 V configurations.
• Provides multiple power outputs for external circuit requirements.
• Includes passive interface circuitry for signal connection and conditioning.
• Supports serial communication connections identified as RS-232C/RS-422.

Structure and Connections

The 531X305NTBAPG1 is built as a circuit-board-level terminal interface assembly rather than a standalone controller. Its main functional areas include terminal connections, passive interface circuitry, power-output circuits, encoder interface circuitry, and configurable signal-conditioning elements.

Within an EX2000 installation, connections can involve the drive control board, power supply board, terminal board, and external equipment. This arrangement allows field wiring and internal control-system connections to be organized through the terminal board.

Applications

Typical applications include industrial drive systems, excitation equipment, motor-control cabinets, and legacy GE EX2000 installations where the 531X terminal-board architecture is used. The board is particularly useful where multiple external signals, encoder feedback, auxiliary power, and control connections must be integrated into a cabinet-level system.

For replacement projects, the complete part number 531X305NTBAPG1 should be matched with the existing board revision, system configuration, wiring, and jumper settings before installation.

Installation and Maintenance

Installation should be performed by qualified personnel familiar with industrial drive and excitation equipment. Power should be isolated according to the site’s approved electrical safety procedure before accessing the board.

When replacing the board, carefully record existing wiring, jumper positions, connectors, and configuration settings. Inspect terminals and connectors for corrosion, looseness, contamination, or physical damage. Proper storage and handling are also important because circuit-board assemblies can be affected by electrostatic discharge.

The relevant GE documentation should be used for terminal identification, jumper configuration, wiring, and replacement procedures. Third-party listings identify GEI-100020B and other 531X documentation as associated technical references.
