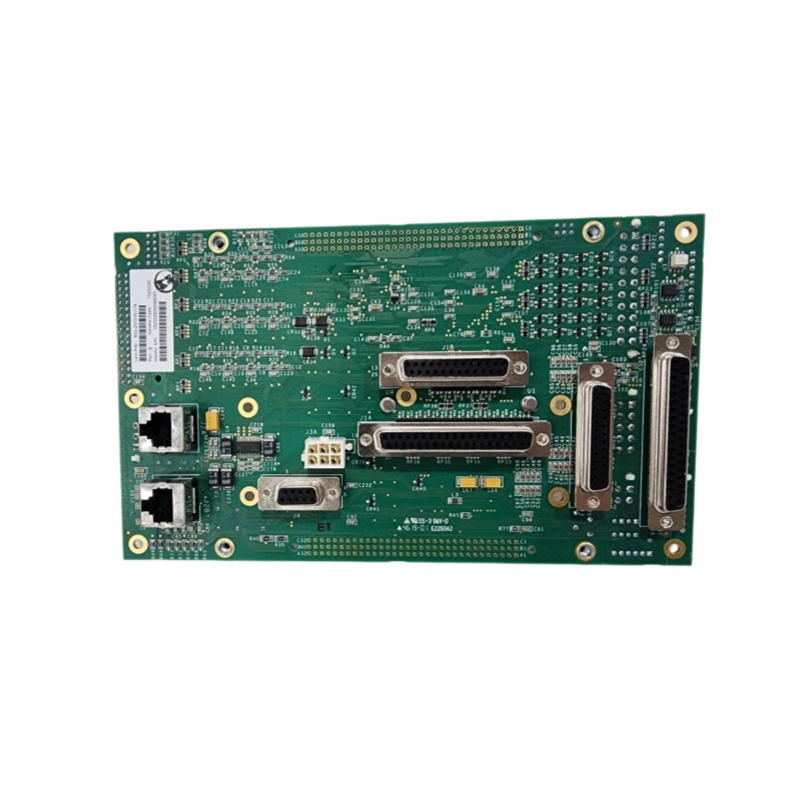

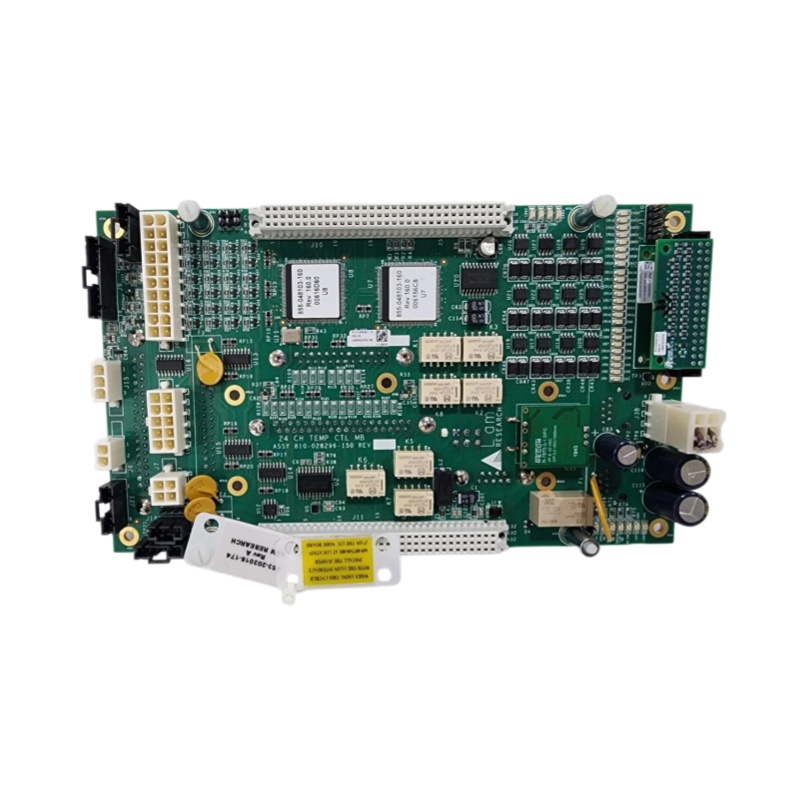

Lam Research 810-028296-150 Channel Temperature Control Motherboard
Lam Research 810-028296-150
Product Overview
The Lam Research 810-028296-150 is a specialized PCB assembly used as a 24-channel temperature control motherboard in Lam Research semiconductor manufacturing equipment. Industry equipment-part listings identify the assembly as “PCB ASSY, 24 CH TEMP CTL MB”, with 810-028296-150 as the primary board number.
This board is designed for integration into Lam Research process equipment where multiple temperature-related signals must be monitored and controlled. As an equipment-specific motherboard, it works together with other control boards, sensors, interfaces, and system electronics rather than functioning as a standalone PLC module.
Product Identification and Specifications
The available core product information is summarized as follows:
- Manufacturer: Lam Research
- Part Number: 810-028296-150
- Product Type: PCB Assembly / Motherboard
- Functional Description: 24-Channel Temperature Control Motherboard
- Application: Semiconductor manufacturing equipment
- Primary Function: Multi-channel temperature control and monitoring
- Equipment Category: Wafer processing equipment
- Board Architecture: Equipment-specific control electronics
- Related Part: 810-028296-174 (correspondingly matched with 810-028296-150 assembly)
Detailed electrical specifications such as operating voltage, connector pin assignments, temperature sensor types, communication interfaces, and channel accuracy are not consistently available in public sources. These parameters should therefore be verified against the equipment documentation and the identification markings on the installed board.
Temperature Control Architecture
The 24-channel configuration makes this board suitable for managing multiple temperature points within semiconductor processing equipment. Precise thermal control is important in wafer-processing environments because temperature can directly influence process stability and equipment performance.
The 810-028296-150 functions as part of a distributed electronic control architecture. It may interact with temperature sensors, control circuits, power electronics, communication assemblies, and other Lam Research boards to coordinate temperature-related functions.
Its motherboard designation also indicates that it can serve as an important interconnection and control platform within the equipment. Consequently, correct hardware revision and system compatibility are essential when replacing the board.
Semiconductor Industry Applications
The board is tailored for specialized Lam Research semiconductor manufacturing equipment, and is officially defined as a 24-channel temperature-control motherboard for supporting wafer processing and thermal management operations. Its typical lifecycle-support application scenarios are as follows:
- Semiconductor wafer processing
- Process temperature management
- Multi-point temperature monitoring
- Thermal equipment control
- Semiconductor equipment refurbishment
- Preventive maintenance
- PCB replacement and repair
- Legacy Lam Research equipment support
For semiconductor production facilities, maintaining suitable spare control boards can help reduce equipment downtime when a critical electronic assembly fails, ensuring continuous and stable production operations.
Hardware Design and Maintenance
As a dedicated and specialized PCB assembly, the 810-028296-150 requires standardized inspection and maintenance operations. Before installation, technicians must verify the complete part number, and check whether the board revision, connector arrangement, component configuration and matching assemblies are consistent with the original equipment unit.
ESD (Electrostatic Discharge) precautions must be strictly implemented during the disassembly, transportation, inspection and installation of the board. The PCB shall be stored in qualified antistatic packaging, and isolated from excessive moisture, dust, vibration and mechanical impact to avoid component damage.
When temperature control abnormalities occur, technicians should conduct comprehensive troubleshooting covering connected sensors, cables, connectors, power supplies and supporting control boards. Abnormal temperature readings do not equate to a failure of the motherboard itself.
After board replacement, all associated temperature channels need to be fully tested, and the monitored data shall be compared with the standard equipment readings. The system can only be restored to formal production after all indexes are normal.
Replacement and Procurement
The Lam Research 810-028296-150 is a dedicated spare part for semiconductor manufacturing equipment. Its specific configuration parameters must be confirmed prior to procurement. In the aftermarket, this part is categorized as a 24-channel temperature-control motherboard, with supporting inventories including other boards and assemblies in the 810-028296 series.
To obtain an accurate quotation, it is recommended to provide complete information including the full part number 810-028296-150, photos of the existing PCB, board revision details, and the applicable Lam Research equipment model.
For semiconductor equipment maintenance teams, procuring the authentic and compatible 810-028296-150 replacement board can accelerate fault troubleshooting, support equipment refurbishment, and quickly restore the normal operation of Lam Research process systems.
————————————————————————————————————-
