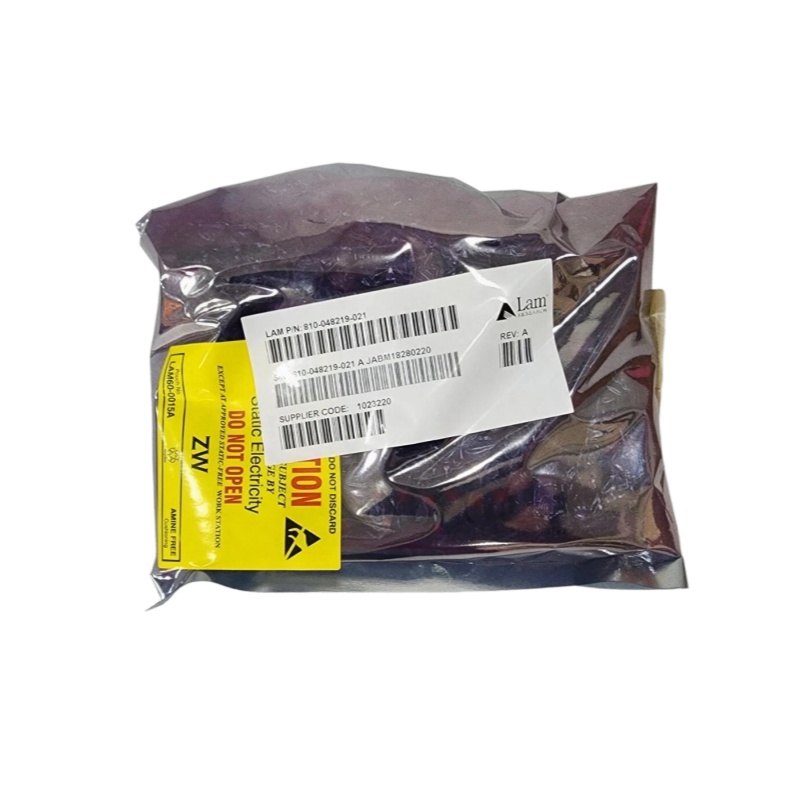

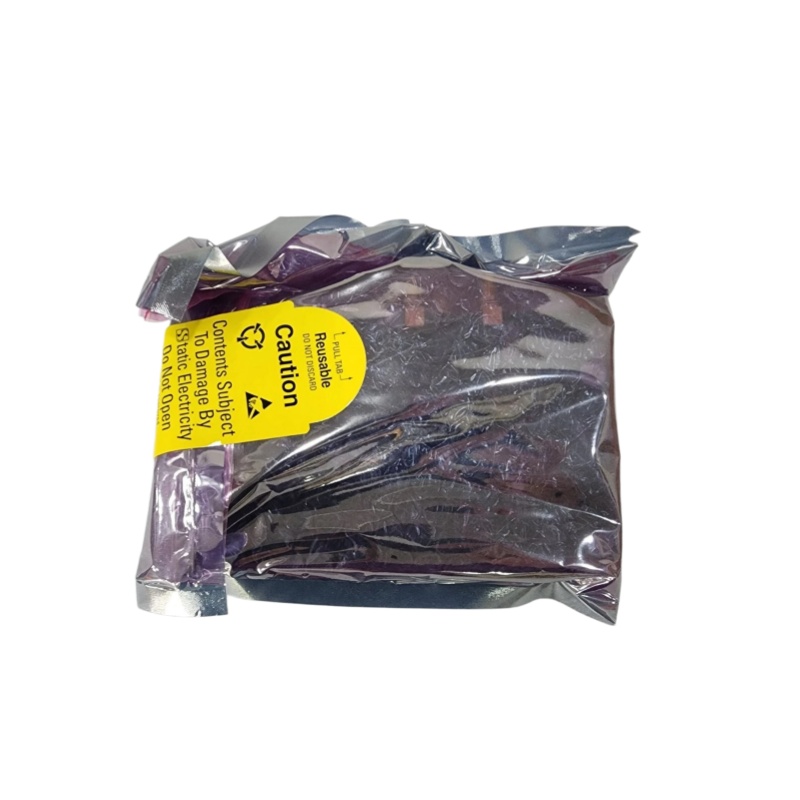

Lam Research 810-048219-021 Pulse Sample & Hold Module
Lam Research 810-048219-021
Product Overview
The Lam Research 810-048219-021 Pulse Sample & Hold Module is a specialized electronic control board designed for Lam Research semiconductor processing equipment. This module is responsible for high-precision pulse signal acquisition, sampling, and holding functions, providing accurate signal processing support for advanced wafer fabrication systems.
In semiconductor manufacturing equipment, precise timing and stable signal processing are essential for maintaining process repeatability and product quality. The 810-048219-021 helps ensure reliable communication between process control circuits and equipment subsystems by capturing and maintaining critical pulse signals during operation.
The module is commonly used as a spare or replacement component for Lam Research etching and wafer processing platforms, supporting semiconductor fabs in reducing equipment downtime and maintaining production continuity. The part number 810-048219-021 is identified as a “Pulse SMPL & Hold W/SYNC OUT” module in Lam Research spare part listings.
Functional Description
The primary function of the Lam Research 810-048219-021 is to perform pulse signal sampling and holding operations within semiconductor process equipment.
During equipment operation, the module receives high-speed pulse signals from related control circuits, captures important signal information at specific timing points, and maintains the sampled value for further processing.
Its core main functions are listed as follows:
- Pulse signal acquisition
- Timing synchronization support
- Signal stabilization
- Sample-and-hold processing
- Interface communication with equipment control circuits
- Supporting accurate process control operations
The module plays an important role in applications where precise timing control and repeatable signal processing are required.
Technical Specifications
|
Parameter
|
Description
|
|---|---|
|
Manufacturer
|
Lam Research
|
|
Model Number
|
810-048219-021
|
|
Product Type
|
Pulse Sample & Hold PCB Module
|
|
Description
|
Pulse SMPL & Hold W/SYNC OUT
|
|
Application
|
Semiconductor Manufacturing Equipment
|
|
Function
|
Pulse signal sampling and synchronization output
|
|
Board Type
|
Electronic PCB Assembly
|
|
Installation
|
Internal equipment control module
|
|
Signal Processing
|
Pulse acquisition, holding, and timing control
|
|
Compatible Equipment
|
Lam Research wafer processing platforms
|
|
Operating Environment
|
Semiconductor fabrication facility
|
|
Replacement Category
|
OEM spare / refurbished replacement part
|
Specifications may vary depending on the specific Lam Research equipment configuration.
Hardware Structure and Design
The 810-048219-021 is designed as a compact industrial PCB assembly optimized for semiconductor equipment applications. Its internal structure consists of multiple independent functional sections to ensure efficient and stable signal processing.
Pulse Processing Circuit
The pulse processing section captures input signals with high timing accuracy and prepares them for downstream control functions, laying a foundation for subsequent sampling and synchronization operations.
Sample and Hold Circuit
As the core functional unit of the module, the sample-and-hold circuitry temporarily stores real-time signal values, enabling the equipment controller to obtain stable and continuous data for operational analysis and control.
Synchronization Output Circuit
The built-in SYNC OUT function outputs precise timing signals to coordinate the collaborative operation of different functional modules of the equipment, ensuring the overall consistency of the production process.
Signal Conditioning Components
The board is equipped with complete electronic components to guarantee operational stability, including:
- Integrated circuits
- Resistors
- Capacitors
- Professional signal processing components
- Anti-interference protection elements
These components effectively maintain signal integrity and reduce the interference of electrical noise in complex industrial environments.
Interface Connectors
High-quality dedicated connectors are adopted to ensure stable and reliable electrical connection and data communication with the host equipment system.
Key Features
- High-Precision Signal Processing: Delivers accurate pulse sampling and holding performance to support long-term stable operation of semiconductor processing.
- Reliable Timing Synchronization: The independent synchronization output function realizes accurate timing coordination among multiple equipment control units.
- Semiconductor-Grade Design: Customized for Lam Research professional process tools, fully meeting the high reliability requirements of precision semiconductor manufacturing environments.
- Improved Equipment Stability: Ensures consistent signal processing results, effectively improving equipment operation repeatability and process control accuracy.
- Easy Replacement: Standard dedicated part number simplifies factory spare parts inventory management and on-site replacement and maintenance procedures.
Installation Guidelines
Semiconductor processing equipment is equipped with sensitive precision electronic circuits, so standardized operation is required during module installation to avoid equipment damage. The recommended installation procedures are as follows:
- Verify the complete accuracy of the part number before installation
- Confirm the matching degree between the module and the target Lam Research equipment model
- Completely power down the equipment before replacement operation
- Strictly follow ESD electrostatic protection operating procedures
- Inspect connectors for damage, oxidation or foreign matter before insertion
- Ensure the module is installed in the correct position and fixed firmly
- Complete system debugging and functional testing after installation
Standardized installation can effectively avoid equipment communication errors and significantly improve the overall operational reliability of the equipment.
Maintenance Recommendations
Scientific and regular maintenance can effectively extend the service life of the pulse sampling module and reduce failure rates. The daily maintenance specifications are as follows:
- Regularly inspect the PCB surface for contamination, scratches or structural damage
- Check the interface connectors for oxidation, looseness and poor contact
- Monitor equipment signal processing-related alarm information in real time
- Maintain constant temperature and humidity in the equipment operating environment
- Keep the equipment cabinet clean and dust-free to avoid circuit interference
- Record module replacement and maintenance history to support preventive maintenance arrangement
Early detection and elimination of potential signal faults can effectively avoid unexpected equipment downtime and ensure continuous production.
Replacement Considerations
Before replacing the Lam Research 810-048219-021 module, engineers need to complete the following verification work to ensure accurate matching and normal operation:
- Standard part number: 810-048219-021
- Module official description: Pulse SMPL & Hold W/SYNC OUT
- Compatibility of matched Lam Research equipment model
- Equipment hardware version revision requirements
- Interface connector configuration consistency
Selecting matching replacement components ensures seamless system integration and minimizes equipment downtime and recovery time.
Product Advantages
The 810-048219-021 pulse sampling and holding module has multiple core advantages in semiconductor industrial applications:
- High-precision and stable pulse signal processing capability
- Accurate and reliable timing synchronization output performance
- Stable support for long-term continuous operation of semiconductor equipment
- High compatibility with mainstream Lam Research wafer processing platforms
- Effective reduction of equipment maintenance frequency and downtime loss
- Long service life, reducing the overall operating cost of process equipment
Conclusion
The Lam Research 810-048219-021 Pulse Sample & Hold Module is a core essential electronic component for Lam Research semiconductor processing equipment. Relying on its high-precision pulse processing capability, industrial-grade reliable PCB design and perfect system compatibility, the module realizes accurate signal acquisition, stable holding and precise timing synchronization functions.
For semiconductor fabs equipped with Lam Research process tools, this module serves as a high-reliability spare part solution. It effectively improves equipment operational stability and availability, reduces unplanned production downtime, and provides solid technical support for the continuity and consistency of wafer manufacturing processes.
————————————————————————————————————-
