Product Overview

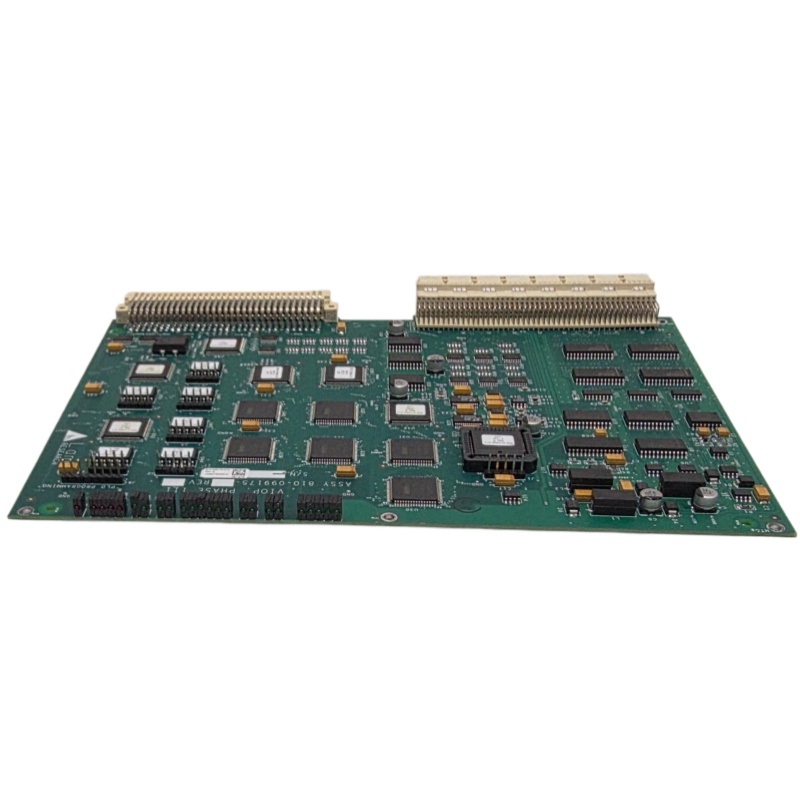

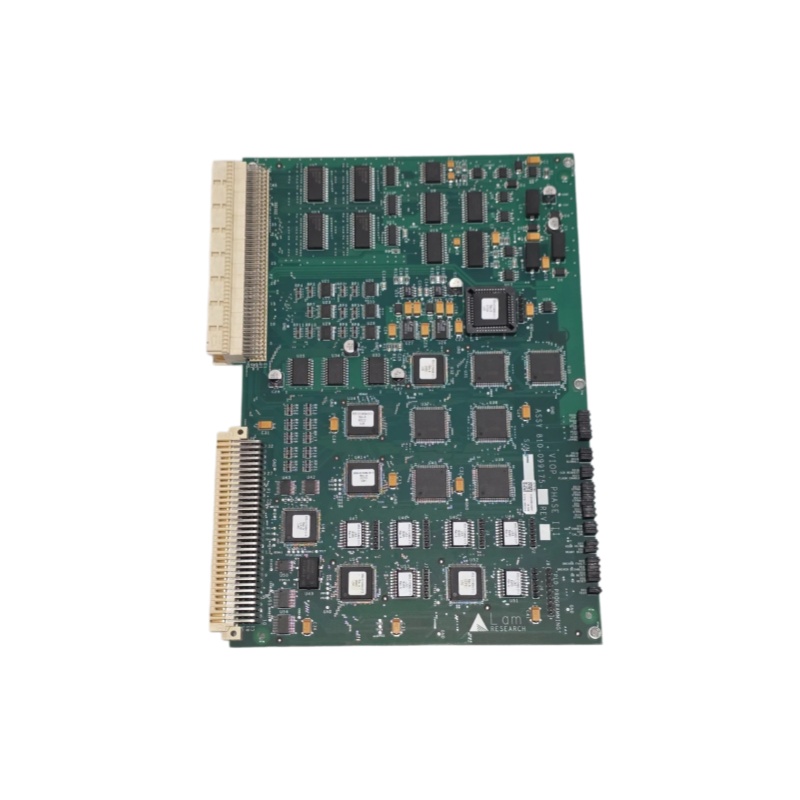

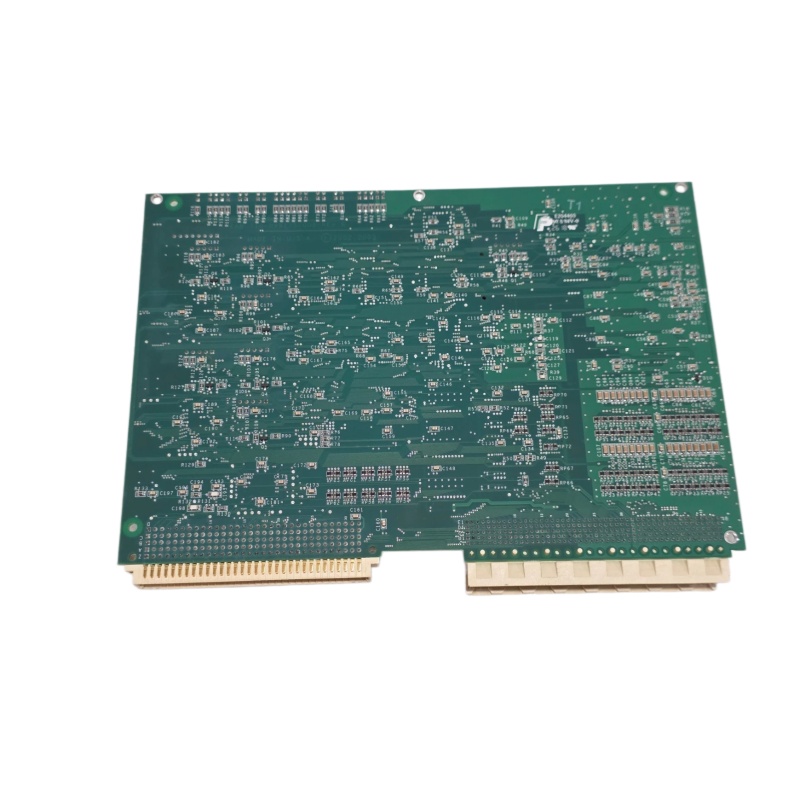

The Lam Research 810-099175-013 is a specialized printed circuit board associated with the VIOP Phase III assembly used in Lam Research semiconductor processing equipment. Available references identify this part as a VIOP Phase III PCB or PCBA, with Rev. B versions also documented.

The board is designed for integration into Lam Research equipment rather than general-purpose industrial automation systems. It forms part of the electronic control architecture responsible for interfacing and managing functions within the equipment. Because semiconductor processing tools require highly coordinated electrical and motion control, dependable circuit-board performance is important for maintaining equipment stability and repeatability.

The 810-099175-013 is therefore a useful replacement component for maintenance teams supporting compatible Lam Research systems, particularly when an original board has reached the end of its service life or requires replacement.

Product Identification

• Manufacturer: Lam Research
• Part Number: 810-099175-013
• Component Type: VIOP Phase III PCB / PCBA
• Revision: Rev. B versions are documented
• Application: Lam Research semiconductor processing equipment
• Related Equipment: VIOP / Phase III assemblies
• Board Function: Equipment control and interface circuitry
• Category: Semiconductor equipment spare part

Some industry listings additionally associate this part with Lam Research Flex-series equipment and VIOP-related assemblies. Because equipment configurations can vary, the exact machine compatibility should be verified against the equipment configuration and board revision before installation.

Main Features

The Lam Research 810-099175-013 offers several practical advantages for semiconductor equipment maintenance:

• Designed for integration with Lam Research equipment.
• Compact PCB architecture suitable for dedicated equipment assemblies.
• Supports electronic control and interface functions within the VIOP system.
• Available in documented Rev. B configurations.
• Suitable for replacement and maintenance applications.
• Helps reduce extended equipment downtime when a compatible replacement is available.
• Useful for maintaining older semiconductor manufacturing equipment where original spare parts may be difficult to source.

Construction and Components

As a dedicated semiconductor equipment PCB, the 810-099175-013 incorporates a circuit-board assembly with electronic components, connectors, signal-processing circuitry, and interface elements required by the associated VIOP architecture.

The board is not normally treated as an independent control system. Instead, it works as part of a larger equipment platform, communicating with and supporting other assemblies in the tool. Proper connector engagement, board seating, grounding, and compatibility with the surrounding hardware are therefore essential.

Available component references describe the 810-099175-013 as VIOP Phase III, while another industry listing identifies it as a VIOP Phase III PCB used with Lam Research etch equipment.

Typical Applications

The 810-099175-013 is primarily relevant to semiconductor manufacturing environments. Potential applications include maintenance of Lam Research processing equipment used in wafer fabrication and related material-processing operations.

Typical maintenance scenarios include:

• Replacement of a failed VIOP PCB
• Restoration of equipment after electronic faults
• Preventive spare-parts stocking
• Repair of legacy Lam Research equipment
• Replacement of boards affected by component aging
• Equipment refurbishment and service operations

For facilities operating multiple compatible Lam Research tools, keeping critical electronic boards available can also shorten troubleshooting and recovery time.

Installation and Maintenance

Installation should be performed by qualified semiconductor equipment technicians familiar with the applicable Lam Research platform.

Before installation, technicians should confirm the complete part number, board revision, connector configuration, and equipment compatibility. The original board should be removed with appropriate electrostatic-discharge precautions because exposed electronic circuitry can be sensitive to ESD.

After installation, the board should be inspected for proper seating and connector engagement. Equipment-level diagnostics should then be performed according to the applicable service procedure.

For long-term storage, keep the board in appropriate ESD-protective packaging and avoid excessive humidity, dust, contamination, and mechanical impact.

Replacement Considerations

When sourcing a Lam Research 810-099175-013, part-number accuracy is particularly important. Listings for this component may describe it as PCB VIOP Phase III, PCBA VIOP Phase, or VIOP Phase III FAB, while different listings may show different internal or assembly identifiers.

Therefore, customers should provide the complete part number and, when possible, the board revision and equipment information when requesting a replacement. This helps reduce the risk of supplying a visually similar but functionally different board.

Supply and Service

We supply industrial and semiconductor-equipment spare parts, including Lam Research electronic boards and assemblies. The Lam Research 810-099175-013 can be supplied for equipment maintenance, replacement, and spare-parts inventory requirements.

Before ordering, customers are encouraged to confirm the required revision, condition, and compatibility. Product availability and lead time can vary depending on sourcing and stock status.
