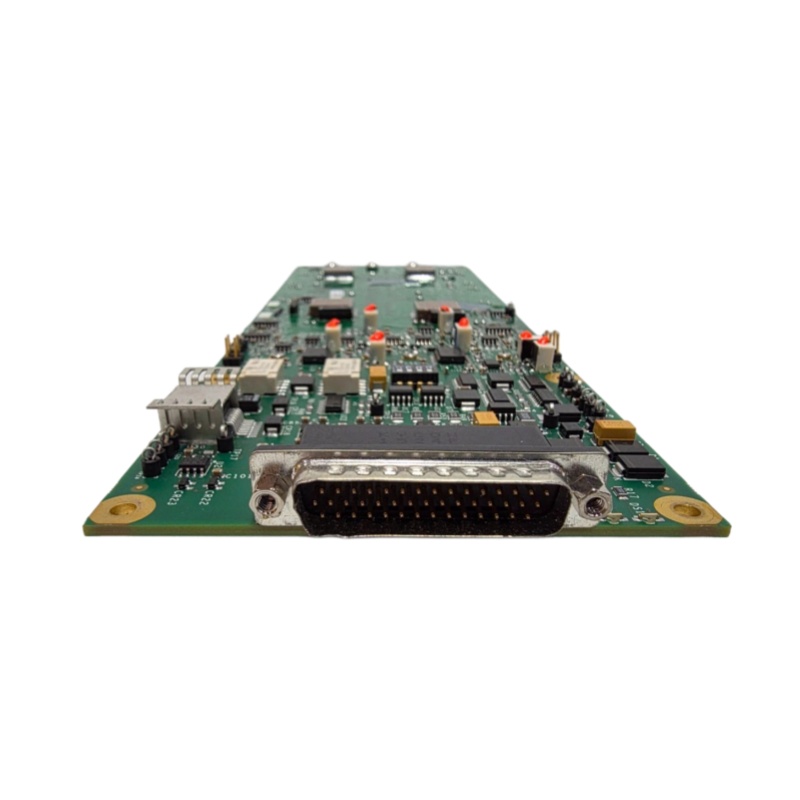

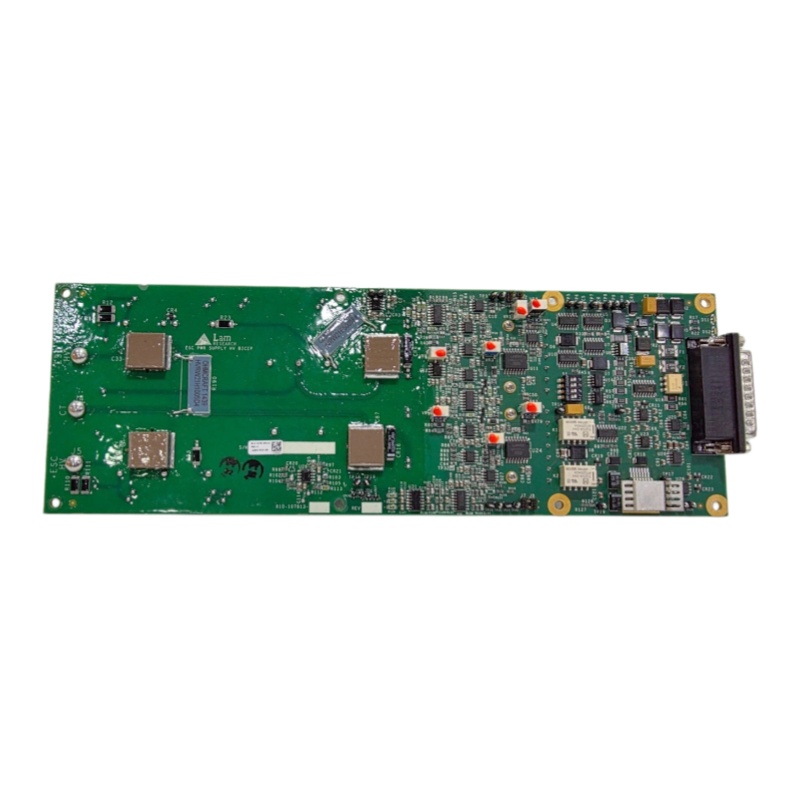

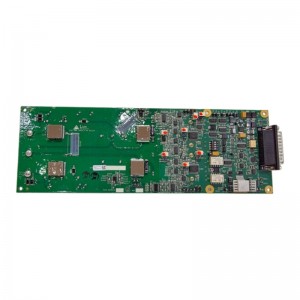

Lam Research 810-107813R014 Industrial Module
Lam Research 810-107813R014
Product Overview
The 810-107813R014 is a highly integrated Radio Frequency (RF) power transmission and impedance matching core component designed by Lam Research for advanced semiconductor manufacturing equipment. It serves as one of the key hardware units dedicated to specific etching and deposition tool platforms. This module undertakes the critical task of delivering high-frequency electrical energy generated by RF generators to the internal electrodes of process chambers with maximum efficiency and precision, forming the physical foundation for stable and uniform plasma generation.
In nanoscale semiconductor manufacturing processes, the performance stability of the 810-107813R014 directly determines the ion energy and density distribution on wafer surfaces, acting as a decisive factor affecting etching rate, process selectivity, and thin-film deposition quality.
The module’s design fully reflects Lam Research’s in-depth expertise in plasma physics and precision mechatronic engineering. Rather than a simple power divider, it functions as an intelligent matching system with rapid dynamic response capabilities. It can real-time perceive plasma impedance fluctuations caused by process chemical reactions or gas composition variations inside the chamber and achieve perfect matching between load impedance and RF source output impedance within milliseconds.
The operating status of the 810-107813R014 is a key indicator of successful process recipe execution. It ensures safe and controllable delivery of high-power RF energy for wafer fabrication, effectively protecting high-cost RF power supplies. As a core guarantee for yield stability and process repeatability in advanced semiconductor manufacturing, this component plays an indispensable role in the production of logic, memory, and power devices on both 200mm and 300mm wafers.
Product Specifications
|
Parameter Name
|
Parameter Value
|
|---|---|
|
Product Model
|
810-107813R014
|
|
Manufacturer
|
Lam Research
|
|
Product Type
|
RF Impedance Matching & Power Transmission Module
|
|
RF Frequency Range
|
Supports 13.56 MHz ISM band and customized frequency bands
|
|
Maximum RF Input Power
|
Typical peak power: 3 kW – 5 kW (tool configuration dependent)
|
|
Input/Output Impedance
|
50 Ω characteristic impedance
|
|
Cooling Solution
|
Forced liquid cooling (deionized water or dedicated coolant) combined with auxiliary air cooling
|
|
Control Interface
|
Lam Research proprietary high-speed digital bus (connects to system main controller)
|
|
Process Interface
|
Proprietary high-power RF connectors and vacuum feedthrough interfaces
|
|
Operating Temperature Range
|
15°C to 40°C (coolant flow rate and temperature dependent)
|
|
Physical Form Factor
|
Standard cabinet embedded module, compliant with Lam Research mechanical design specifications
|
Structure and Composition
The 810-107813R014 adopts a highly integrated and high-reliability structural design. Its enclosure is machined from aerospace-grade aluminum alloy with high thermal conductivity, integrating precision liquid cooling channels. This design delivers efficient thermal management for internal high-power components and provides excellent electromagnetic shielding performance. The module front panel is equipped with multi-color LED status indicators to display power supply status, matching status, fault alarms, and communication activity. A high-voltage interlock loop interface is configured to ensure operator safety. The rear side achieves electrical connection with the cabinet system via high-density backplane connectors and transmits high-power RF signals through dedicated coaxial interfaces.
Functionally, the module integrates three core units: power detection, impedance matching network, and control logic. The power detection unit adopts high-directivity broadband couplers to extract the amplitude and phase of forward and reflected RF signals in real time without signal loss. The impedance matching network consists of a tuning array composed of high-Q vacuum variable capacitors and precision inductors with excellent voltage and current endurance, driven by high-precision stepper motors or piezoelectric actuators.
The control logic unit is built on a high-performance Digital Signal Processor (DSP) running sophisticated fast matching algorithms. Based on real-time feedback from the power detection unit, it instantly calculates adjustment parameters and drives actuators to form a high-speed closed-loop control system. This highly coordinated hardware architecture endows the module with ultra-fast response capability.
Key Features and Advantages
With superior industrial-grade design, the 810-107813R014 delivers outstanding performance and unique advantages for rigorous high-volume semiconductor manufacturing environments.
Ultra-Fast Matching Speed and High Precision
Equipped with advanced dynamic matching algorithms and high-speed actuators, the module features exceptional impedance adaptation capabilities. It rapidly minimizes reflected power within an extremely short response time when facing drastic impedance fluctuations during plasma ignition and ongoing process variations. This ultra-high-speed and high-precision matching suppresses RF power fluctuations effectively, ensures the uniformity and repeatability of wafer Critical Dimension (CD), expands the process window significantly, and improves production yield.
Superior Thermal Management and High Reliability
To address heat dissipation challenges in high-power RF applications, the 810-107813R014 adopts an efficient liquid cooling architecture that rapidly dissipates heat generated by core components such as vacuum capacitors and power inductors. It ensures stable low-temperature operation of internal devices, greatly extending the service life of wearable components and improving the overall Mean Time Between Failures (MTBF). The design maintains long-term RF parameter stability under varying ambient temperatures and reduces process drift risks caused by thermal deviation.
In-Depth System Integration and Diagnostic Capabilities
As an integral part of the Lam Research equipment ecosystem, the module achieves deep integration with the main controller via a proprietary high-speed bus, supporting complex self-diagnosis and calibration sequences. It uploads real-time detailed operating logs, including working temperature, motor position, Voltage Standing Wave Ratio (VSWR), and other key parameters. The comprehensive data foundation supports predictive maintenance and root cause analysis, simplifying troubleshooting procedures and reducing the equipment Total Cost of Ownership (TCO).
Application Fields
The 810-107813R014 is primarily applied to plasma processing in front-end semiconductor manufacturing, serving as a core RF subsystem for Lam Research mainstream Capacitively Coupled Plasma (CCP) etchers and partial deposition equipment. It is widely deployed in high-volume 300mm wafer production for manufacturing logic chips (FinFET, GAA), memory chips (3D NAND, DRAM), power semiconductors, and Micro-Electro-Mechanical Systems (MEMS) devices.
The module plays a vital role in high-aspect-ratio (HAR) contact and trench etching for advanced memory devices. Its stable and repeatable RF power output is a prerequisite for perfect sidewall verticality and bottom morphology of deep holes. In logic chip fabrication, it supports critical processes including hard mask opening, gate etching, and metal interconnection formation. Its excellent uniformity control directly guarantees key electrical parameters such as device speed, power consumption, and leakage performance. It serves as an indispensable technical support for nanoscale pattern transfer of complex multi-layer stacked material structures, translating theoretical process recipes into practical manufacturing results.
Related Products
810-107813R013: Previous hardware version of the same series with identical core functions, featuring differentiated control circuits and matching algorithms. Suitable for tools with older firmware versions and available as a spare part alternative.
810-107813R015: Updated enhanced model in the same product sequence with upgraded power processing capability and extended impedance matching range, adapted for advanced process nodes and more stringent plasma process conditions.
810-194692-307: Another Lam Research RF matching module designed for dedicated tool platforms, with distinct differences in power rating, frequency support, and physical interfaces.
810-002945-001: Supporting high-power RF input cable assembly with customized length and standardized impedance, ensuring low-loss and low-standing-wave RF energy transmission.
810-800001-001: High-precision RF Voltage/Current (VI) probe, installed near chamber electrodes for direct RF parameter measurement, providing accurate feedback signals for the matching module.
810-900003-001: Dedicated firmware upgrade authorization and configuration software for the module, used for internal algorithm and parameter updates to adapt to new process requirements and resolve known technical issues.
Installation and Maintenance
Pre-Installation Preparation
Before installing the 810-107813R014, ensure the Lam Research tool is fully shut down, powered off, physically locked out, and completely discharged of residual electrical energy. Due to the module’s high-power RF and liquid cooling configuration, operators must complete official factory training and strictly comply with high-voltage and high-power operation safety regulations. Maintain ultra-high cleanliness of the installation environment, and inspect all liquid cooling joints, RF coaxial ports, and signal connectors for cleanliness and intactness. Prepare specialized torque wrenches and leak detection tools, and verify that coolant type, flow rate, and pressure fully comply with official technical specifications.
Maintenance Recommendations
Implement a rigorous periodic Preventive Maintenance (PM) plan for the 810-107813R014. Key maintenance items include regular inspection and recording of coolant loop status to eliminate leakage and blockage risks and ensure normal operation of flow sensors. Regularly calibrate the tightening torque of all RF connectors with professional tools to avoid arcing and overheating caused by vibration-induced poor contact. Clean and replace the air inlet filter periodically.
For fault troubleshooting, prioritize checking front-panel LED alarm codes and system operation logs. Common faults including matching timeout and excessive VSWR are generally associated with chamber contamination (e.g., polymer deposition) or cooling system abnormalities. All disassembly and maintenance involving internal high-voltage components must be performed by Lam Research authorized field service engineers.
————————————————————————————————————-
