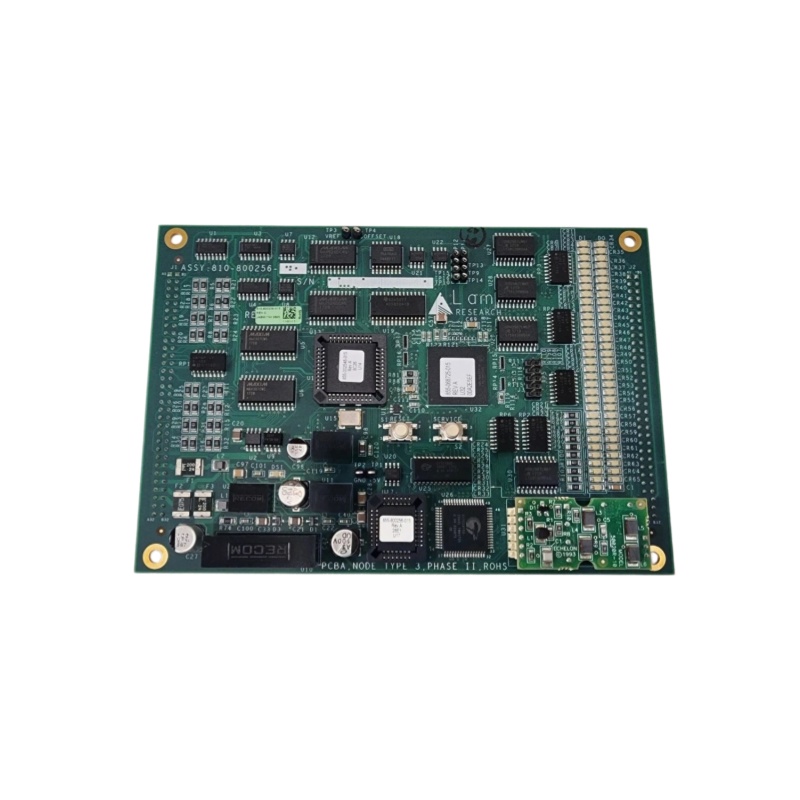

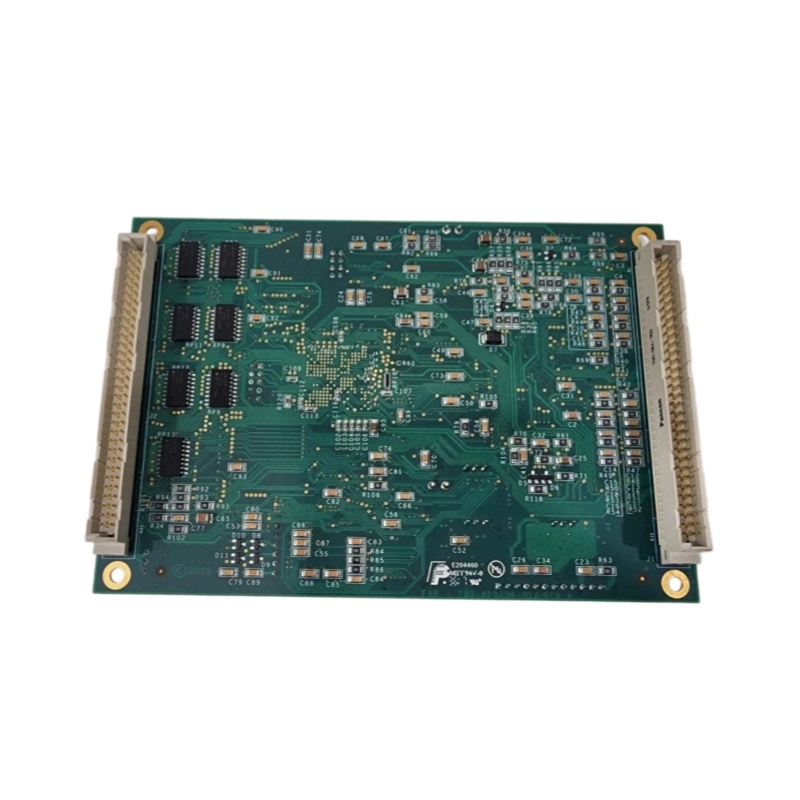

Lam Research 810-800256-015 Node Type 3 PCBA
Lam Research 810-800256-015
Product Overview
The Lam Research 810-800256-015 is a Node Type 3 Phase II PCBA designed for Lam Research semiconductor manufacturing equipment. Official equipment parts databases define this component as “PCBA, Node Type 3, Phase II, RoHS”, while mainstream industry catalogs uniformly classify it as a Node Type 3 PCB assembly.
As a dedicated board-level component, the 810-800256-015 is engineered to match the control and electronic architecture of exclusive Lam Research wafer-processing equipment. It is not a universal PLC module, and its operational functions are strictly customized for specific semiconductor processing platforms, unable to adapt to general industrial automation scenarios.
Given its equipment-specific attributes, accurate identification of the official part number is critical for spare part procurement and replacement.
Key Product Information
A complete set of standardized product parameters is sorted as follows, providing accurate identification criteria for component matching:
- Manufacturer: Lam Research
- Part Number: 810-800256-015
- Product Type: PCBA / Circuit Board Assembly
- Board Identification: Node Type 3
- Version: Phase II
- Compliance Reference: RoHS
- Application: Semiconductor manufacturing equipment
- Board Category: Equipment control/interface electronics
- Typical Condition in Spare-Parts Market: Used, refurbished, or surplus
- Origin: Lam Research equipment spare part
Multiple independent equipment catalogs have consistent identification records for 810-800256-015, which effectively distinguishes it from ordinary generic circuit boards and ensures accurate component recognition.
It should be noted that public available data lacks complete detailed electrical specifications of the product, including input/output voltage, current ratings, processor type, communication protocol and connector pin assignments. All electrical parameters must be verified against official Lam Research equipment documents prior to formal installation and commissioning.
Board Structure and Functional Role
The 810-800256-015 is a complete printed circuit board assembly that integrates multiple professional electronic components, exclusively supporting the operation of Lam Research semiconductor equipment.
The Node Type 3 and Phase II labels represent the specific generation and configuration of the equipment’s node architecture. This board cannot operate independently; it needs to coordinate with supporting controllers, interface boards, wiring assemblies and system software to realize complete system functions.
It serves as a core part of the equipment’s distributed control architecture, where independent electronic nodes undertake dedicated tasks such as data processing, signal communication, real-time monitoring and system interface docking. A standard Lam Research semiconductor equipment control architecture mainly includes the following modules:
- Controller and processor boards
- Node and interface PCBAs
- I/O circuitry
- Sensor interfaces
- Actuator control circuits
- Communication interfaces
- Power distribution assemblies
- Interlock and safety circuitry
The specific functional orientation of the board varies slightly according to the differentiated configuration of different Lam Research equipment models.
Semiconductor Equipment Applications
Lam Research focuses on the R&D and manufacturing of wafer fabrication equipment, and the 810-800256-015 specialized PCBA is a core supporting component for highly automated semiconductor production lines. It is widely applicable to the following professional scenarios:
- Wafer fabrication facilities
- Semiconductor process equipment
- Etch systems
- Deposition equipment
- Plasma processing systems
- Automated wafer-handling systems
- Equipment control and monitoring platforms
Different from general industrial automation hardware, semiconductor equipment is equipped with proprietary customized control electronics, which cannot be replaced by universal accessories. Therefore, professional original PCBAs such as 810-800256-015 are essential spare parts for equipment maintenance and stable operation, and have been universally recognized and filed by professional semiconductor equipment parts suppliers.
Installation and Maintenance
The replacement and installation of 810-800256-015 must be completed by qualified professional semiconductor equipment maintenance personnel. Before construction, it is mandatory to confirm the board model and equipment matching configuration. The standardized operation procedures are as follows:
- Confirm the complete part number: 810-800256-015
- Verify the board identification: Node Type 3, Phase II
- Compare the revision version of the new replacement board with the original installed board
- Inspect board connectors and edge contacts for contamination, scratches or damage
- Check supporting cables and interface assemblies before reconnection
- Implement standard ESD electrostatic protection measures during board handling
- Follow the official equipment power-off specifications and maintenance process
- Run full equipment diagnostic tests after replacement
- Verify system communication and linkage functions before resuming production
Semiconductor manufacturing equipment is extremely sensitive to dust contamination, static discharge, wrong wiring and configuration deviations. All PCBA replacement operations must strictly comply with the official maintenance specifications to avoid equipment failure or production abnormalities.
Spare Parts and Supply
The 810-800256-015 is a specialized exclusive PCBA for Lam Research semiconductor equipment, which is a key maintenance spare part for enterprises equipped with matching Lam Research production systems. The product’s model and configuration have been fully verified by third-party professional equipment catalogs.
We provide full-range genuine spare parts for Lam Research semiconductor equipment, covering PCBAs, control boards, interface boards, I/O assemblies, power modules and other core equipment components.
For the 810-800256-015 PCBA, you can contact our team at any time to confirm product availability, board condition, revision version, equipment compatibility, delivery cycle and quotation details before placing an order.
————————————————————————————————————-
If you would like to learn more about our products and services, please feel free to contact us at any time!
