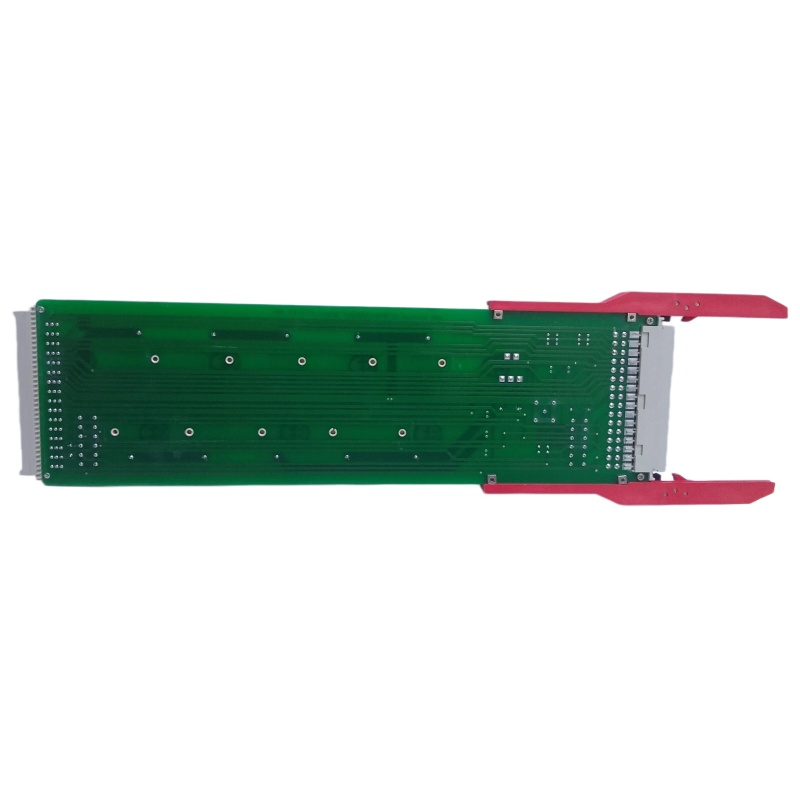

ABB 826A008B-1 Control Board
ABB 826A008B-1
1. Product Overview
2. Product Parameters
|
Parameter Item
|
Specification
|
|---|---|
|
Rated Operating Voltage
|
Up to 1000V DC (IEC Standard)
|
|
Rated Current
|
Up to 2050A (depending on specific model)
|
|
Control Coil Voltage
|
24-60V DC / 100-250V AC/DC
|
|
Main Contacts
|
1NO (Normally Open)
|
|
Auxiliary Contacts
|
1NO + 1NC
|
|
Pole Number
|
1P
|
|
Certification Standards
|
IEC, cULus, UL508
|
3. Product Features
- Powerful Performance – Rated voltage up to 1000V DC and rated current up to 2050A.
- Flexible Application – Wide coil operating voltage range, covering various application scenarios.
- Energy Efficiency – Adopting electronic coil technology, the holding power consumption efficiency is 5-10 times that of traditional ones.
- Stability and Reliability – Insensitive to voltage drop, able to maintain pull-in even if the voltage drops by 55% or a 20ms voltage dip occurs.
- Quiet Operation – The coil works in a DC environment with low operating noise.
- Easy Installation – The overall dimension is consistent with AF contactors of the same specification, with strong versatility.
- Built-in Surge Suppression – Provides additional circuit protection functions.
4. Structure and Composition
- PCBA Control Board – Integrates control circuits and supports multi-wave control technology.
- Electromagnet Core System – The moving iron core cooperates with the static iron core to achieve reliable pull-in.
- Contact System – Adopts transverse magnetic field arc extinguishing technology to improve breaking capacity.
- Modular Design – Assembled with fewer parts, facilitating customization and maintenance.
- Electronic Coil Technology – Reduces power consumption and improves response speed.
5. Application Fields
- Photovoltaic Solar Energy Systems
- Urban Rail/Metro DC Power Supply Systems
- Electric Vehicle Charging Piles
- Energy Storage Battery Packs
- Uninterruptible Power Supply (UPS)
- Communication Industry
- Other DC Power Distribution Systems
6. Installation and Maintenance
6.1 Installation Points
- Installation Ambient Temperature: Must comply with ABB low-voltage electrical equipment environmental requirements.
- Installation Altitude: The impact of altitude on electrical strength must be considered.
- Terminal Blocks: Pay attention to the wiring marks to ensure correct connection.
- Fixing Method: Adopt standard mounting holes for easy fixing.
6.2 Maintenance
- Regularly clean the contact surface to avoid oil stains or oxidation.
- Check the working status of the coil to ensure the voltage is within the allowable range.
- Observe the contact wear and replace if necessary.
- The system has a self-diagnostic function, facilitating status monitoring and maintenance.
————————————————————————————————————-
