ABB 1SAP150100R0100

1. Product Overview

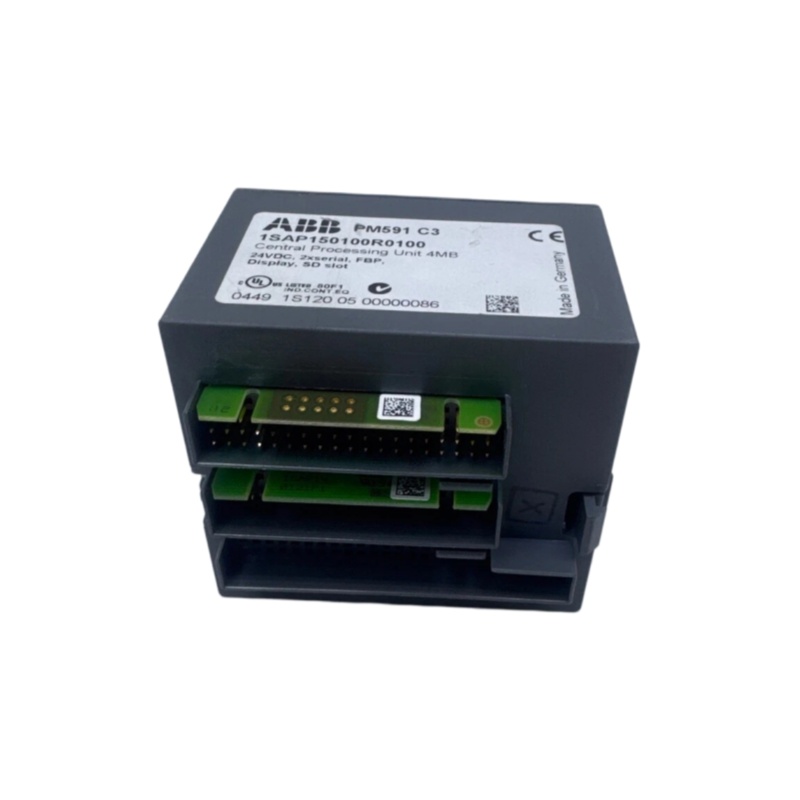

The ABB 1SAP150100R0100 is the PM591 Central Processing Unit (CPU) of the ABB ADVANT AC500 series. Serving as the core main control unit of the AC500 Programmable Logic Controller (PLC) system, this product was launched in 2005. It features high cost performance and flexible system expansion capabilities, making it a reliable core component for industrial control systems.

2. Main Technical Parameters

Parameter	Specification
Product Model	PM591 (1SAP150100R0100)
Memory Capacity	4MB
Supply Voltage	24VDC
Serial Communication Interface	2×RS232/485
Interface Type	FBP interface, SD card slot
Display Function	LCD display
Operating Temperature	-20℃ to +60℃ (universal for AC500 series systems)
Product Variants	PM591, PM591-ETH (1SAP150100R0170), PM591-ARCNET (1SAP150100R0160)

Note: For detailed parameters such as product dimensions, weight and power consumption, please refer to the official ABB hardware manual. Accurate specification data of the PM591 CPU module is not available in public search results.

3. Product Features

Multi-programming Language Support: CPUs of PM590, PM591, PM595 and other series support five mainstream programming languages for flexible program development.
Complete System Integration: The complete control system consists of CPU module, communication modules, CPU base plate, I/O modules, terminal boards and SD cards, realizing integrated industrial control functions.
Powerful Expansion Capability: The system can expand up to 4 standard bus interfaces via communication modules, supporting multiple industrial communication protocols including Modbus, ProfibusDP-V1, DeviceNet and CANopen.
High Compatibility: It is fully compatible with the ABB AC31 series PLC systems, facilitating equipment upgrade and system iteration for users.
Rich SD Card Functions: The matched SD card supports data calling, program upload and download, and remote or local device firmware upgrade.
Self-diagnosis Function: The system supports CS31 bus with a maximum communication distance of 2000 meters, and is equipped with a built-in self-diagnosis function to monitor system operating status in real time and quickly locate faults.

4. Structure and Composition

The AC500 control system is composed of multiple core components, with detailed configurations as follows:

CPU Module: Three grades are available, including PM571, PM581 and PM591, among which PM591 belongs to the mid-to-high-end model of the series.
Communication Modules: CM572-DP (Profibus DP), CM575-DN (DeviceNet), CM577-ETH (TCP/IP/Modbus TCP), CM578-CN (CANopen) and other optional modules to meet diverse communication scenario requirements.
I/O Modules: Divided into analog and digital input/output modules, supporting expansion of up to 7 modules to adapt to different industrial signal acquisition and control demands.
Terminal Board: Compatible with 24V DC and 230V AC two power supply voltage specifications, suitable for various on-site power environments.
SD Card: Matched model MC502, with optional capacities of 128MB and 2GB for program and data storage.
Programming Cable: TK501/TK502 models, with a standard length of 5 meters for equipment programming and debugging.
Lithium Battery: TA521/TA541 models, used for persistent data storage when the device is powered off.

5. Application Fields

The PM591 CPU and AC500 series PLC systems are widely applied in various industrial and civil industries with stable and reliable performance. The detailed application scenarios are as follows:

Industry	Specific Applications
Water Treatment & Environmental Protection	Sewage treatment, water plant operation monitoring
Energy Industry	Wind power control, solar tracking system, photovoltaic power station monitoring
Transportation Industry	Tunnel automation control, traffic system management, railway locomotive control, large marine equipment
Manufacturing Industry	Packaging machinery, printing machinery, industrial robots, cranes and hoisting equipment
General Industry	Metallurgy, petrochemical industry, automobile manufacturing, mining, construction machinery
Building Automation	Data center operation control, intelligent building management
Other Fields	Refrigeration equipment control, fishery ecological monitoring (Xufu Lake ecological monitoring project)

6. Installation and Maintenance

6.1 Installation Instructions

Two installation methods are supported: DIN rail mounting and wall mounting, adapting to different on-site installation environments.

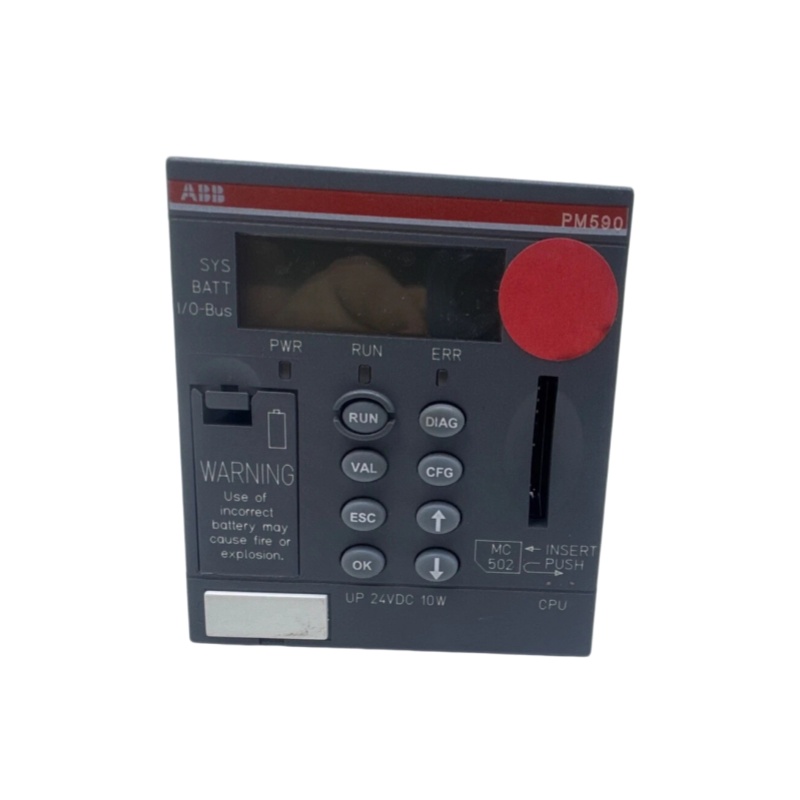

The device is equipped with an LCD display and a Mode Selection Switch (RUN/STOP) for convenient on-site parameter viewing and mode switching.
All modules complete circuit connection and signal transmission through matched terminal boards, with standardized and convenient wiring.

6.2 Common Faults and Maintenance Solutions

Fault Type	Possible Causes	Solutions
Communication Fault	Faulty communication cable, damaged module or incorrect network configuration	Inspect and test communication cables, replace damaged hardware modules, verify and correct network parameter configuration
Input/Output Fault	Poor circuit connection, faulty I/O module or abnormal signal source	Check on-site circuit wiring status, test module performance and calibrate signal source parameters
Power Supply Fault	Damaged power module or unstable input voltage	Replace faulty power supply modules, detect power supply voltage stability and eliminate voltage fluctuation problems
Program Error	Flawed program logic or incorrect system configuration	Review program logic, debug abnormal codes and modify incorrect system configuration parameters
Memory Fault	Stored data corruption or abnormal memory operation	Check memory operating status, clean invalid data and restore normal memory function
Over-temperature Fault	Poor heat dissipation and insufficient ventilation of equipment	Optimize on-site ventilation conditions, clean module heat dissipation components and ensure the operating temperature is within the standard range
Hardware Fault	Internal component aging or damage	Locate faulty hardware parts and replace damaged modules or components
System Alarm	Incorrect system settings or parameter configuration errors	Check full system settings, calibrate all configuration parameters and clear alarm information
