ABB 3BSE006503R1 Modular Control Unit
ABB 3BSE006503R1
1. Overview

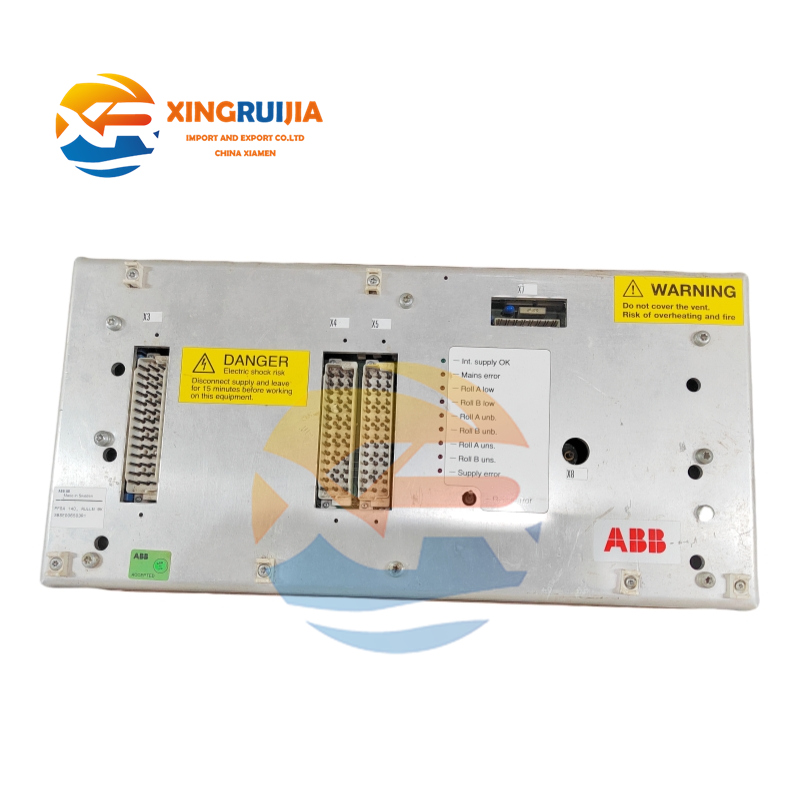

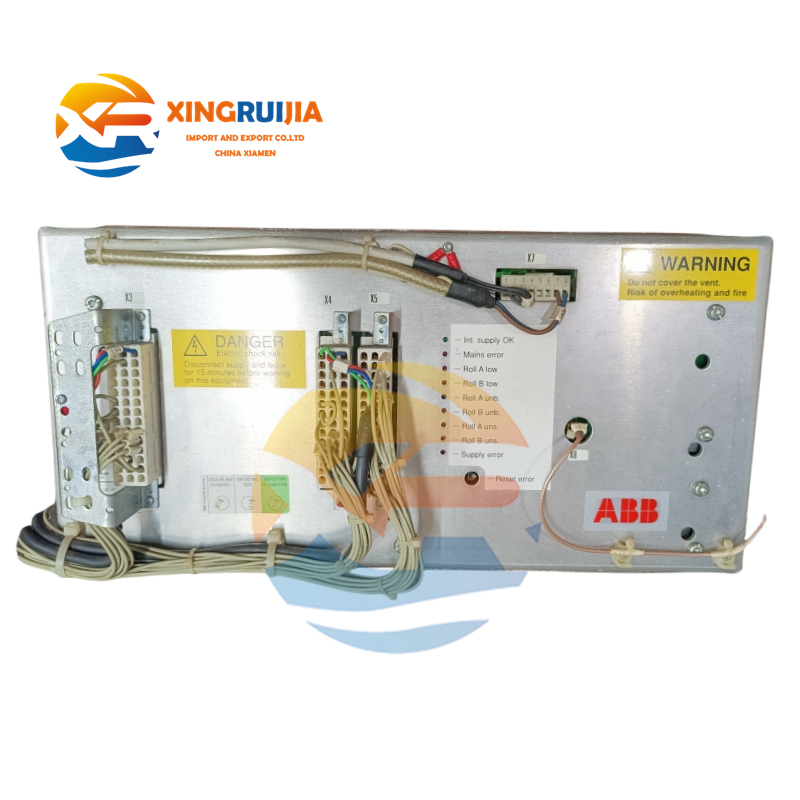

The ABB 3BSE006503R1 is a modular control unit from the PFSA140 series, developed by ABB. Designed for industrial automation systems, it provides power supply and tension control for winding equipment. This versatile unit functions as both a coil supply module and a tension controller, making it suitable for various industries, including packaging, printing, textiles, paper manufacturing, and metal processing.
2. Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 3BSE006503R1 |
| Type | PFSA140 |
| Origin | USA (US) / Sweden (SE) |
| Supply Voltage | 24 V DC |
| Rated Current | 5 A |
| Power Consumption | 120 W |
| Communication | RS-485 |
| Protection Rating | IP54 (suitable for harsh environments) |
| Operating Temperature | -40°C to +70°C |
| Weight | Approx. 23.3 kg |
| Input Signal | 4-20 mA |
| Output Signal | 0-10 VDC or 0-20 mA |
| Max Load Current | 10 A |
| Response Time | <1 ms |
| Analog Output Accuracy | ±0.1% |
| Linearity Error | ±0.01%/℃ |
| Zero Adjustment Range | ±2 mA |
| Gain Adjustment Range | ±20% |
3. Key Features
- High Reliability: Built with premium components and advanced manufacturing for stable operation in harsh industrial environments.
- Precision Tension Control: Advanced control algorithms ensure high accuracy, maintaining material stability during processing.
- Modular Design: Easy installation, maintenance, and flexible configuration.
- Multi-Interface Support: Compatible with RS-485, PROFIBUS PA, and other protocols for seamless data exchange.
- Safety Compliance: Meets SIL 3 safety standards for critical control systems.
- Seamless Integration: Optimized for compatibility with ABB robots and automation systems.
- Cost-Effective: High performance at a competitive price.
- Wide Applicability: Ideal for packaging, printing, textiles, paper, metalworking, and more.
4. Structure & Components
The ABB 3BSE006503R1 consists of:
- Power Module: 24 V DC input for system power.
- Control Unit: Core component for tension and logic control.
- Output Interface: Relay outputs for motor/actuator control.
- Communication Ports: RS-485, PROFIBUS PA for device networking.
- Terminal Blocks: Connects sensors, actuators, and field devices.
- Enclosure: IP54-rated housing for durability in harsh conditions.
5. Applications
- Packaging: Ensures consistent material tension for uniform product wrapping.
- Textiles: Controls yarn/fabric tension to enhance production quality.
- Paper Manufacturing: Maintains paper tension for stable printing/processing.
- Metal Processing: Precision tension for metal strips improves machining accuracy.
- Printing: Regulates material feed for high-quality print output.
- Automated Lines: Manages tension in roll-to-roll material handling.
- Robotics: Integrates with ABB robots for precise material handling.
- Process Control: Tension and logic control for diverse industrial processes.
———————————————————————————————————————————
