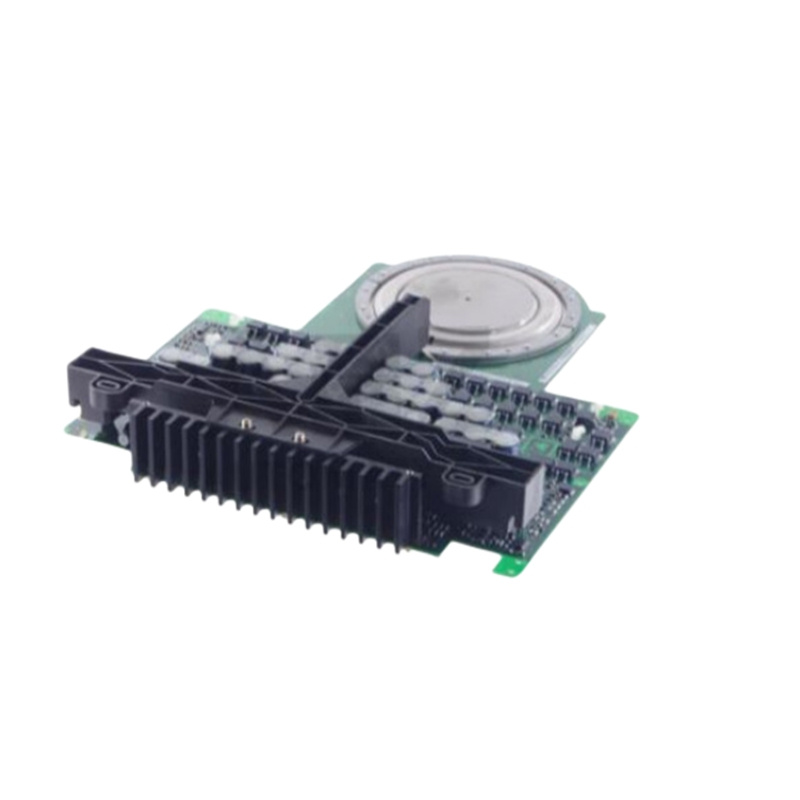

ABB 5SHY35L4503

1. Overview

The ABB 5SHY35L4503 thyristor module is a heavy-duty high-current power semiconductor device independently developed by ABB for medium and high voltage industrial conversion equipment. As the core rectification and power adjustment unit installed inside large converter power cabinets, it controls the conduction and cut-off of ultra-large industrial alternating current, realizing AC-DC rectification, motor drive voltage regulation and power factor compensation for all types of heavy-load industrial machinery.

This thyristor semiconductor module is widely matched with mining hoist medium voltage converters, metallurgical rolling mill drive racks, power plant generator excitation rectifier units, and port heavy lifting motor control systems. It can withstand instantaneous large current surges generated during large motor startup and maintain stable rectification efficiency under long-term continuous full-load working conditions.

Adopting ABB proprietary low-loss thyristor chip packaging technology, the 5SHY35L4503 integrates high thermal conductivity metal substrates for efficient heat dissipation and multi-layer internal real-time fault detection circuits. We maintain sufficient inventory of original genuine modules, serving as direct OEM replacement spare parts for medium voltage converter breakdown maintenance in energy, mining, metallurgy and port heavy industrial sectors. All modules pass factory strict aging testing before delivery to guarantee consistent stable performance.

2. Technical Specifications

3. Product Features

Ultra High Continuous Current Bearing Capacity

Large-area thyristor wafer design supports stable full-load operation of heavy industrial equipment and resists instantaneous overload current surges generated during large medium voltage motor startup cycles. It avoids instantaneous module shutdown caused by motor starting impact.

Low Conduction Loss to Reduce Cabinet Heat

Optimized chip internal conduction architecture drastically minimizes power heat loss during long-term rectification operation, lowering the overall cooling load of medium voltage converter cabinets and extending the service life of surrounding circuit boards and power components.

Integrated Multi-Layer Automatic Fault Protection

Internal temperature and current sensing circuits continuously monitor module operating status. The module automatically blocks all current output once overheat, overcurrent or short-circuit faults occur, preventing permanent burnout of the entire converter main power circuit and reducing equipment maintenance costs.

High-Efficiency Integrated Thermal Conduction Substrate

Thick metal heat conduction substrate tightly fits cabinet cooling radiators to rapidly export heat generated by the thyristor chip, maintaining the core chip within a safe working temperature range during 24-hour full-load heavy industrial production.

4. Structure and Composition

The ABB 5SHY35L4503 thyristor module adopts a fully sealed high-voltage industrial power packaging structure. Core internal components include large-area high-current thyristor wafers, built-in temperature detection thermistors, thick copper high-current conductive terminal lugs, high thermal conductivity metal substrate, and high-insulation flame-retardant sealed outer housing.

Inside medium voltage converter equipment, the thyristor wafer controls the on/off state of large industrial alternating current to complete power rectification and adjustable voltage output for heavy-load medium voltage motors. The embedded temperature sensor monitors chip core temperature in real time and triggers protective current blocking actions when overheating occurs. The high-insulation sealed shell isolates dangerous medium voltage current to eliminate electric leakage and internal short-circuit risks inside converter power cabinets, meeting international industrial high-voltage safety standards.

5. Application Fields

• Underground Mining Hoist & Conveyor Medium Voltage Drives: Core rectification thyristor spare part for mine heavy-load hoist and large belt medium voltage converter cabinets
• Metallurgical Heavy Rolling Mill Medium Voltage Converter Racks: Key power semiconductor component for steel heating furnace and heavy rolling mill main motor drive equipment
• Thermal Power Plant Excitation & Auxiliary Equipment: Power regulation thyristor module for generator excitation cabinets and large boiler fan medium voltage drive units
• Port Heavy Gantry Crane & Container Lifting Machinery: High-current thyristor replacement module for port heavy medium voltage motor drive control cabinets
• Cement & Building Material Heavy Production Lines: OEM spare semiconductor for rotary kiln and large vertical grinding mill high-power frequency conversion equipment
