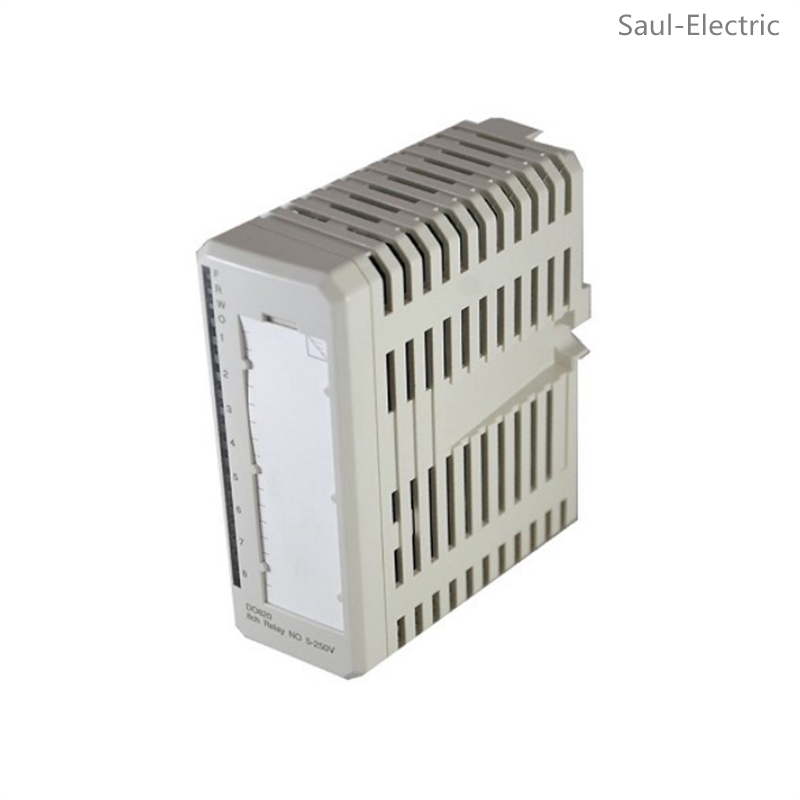

ABB DO820 3BSE008514R1

1. Overview

The ABB DO820 3BSE008514R1 is a digital output module manufactured by ABB, belonging to the Advant Master DCS I/O module series. It is designed for various industrial automation control applications, offering high reliability and high-density performance in complex industrial environments.

-

2. Specifications

• Module Type: Digital I/O Module
• Output Channels: 32 digital outputs
• Input Voltage: 24V DC
• Output Voltage: 24V DC
• Output Current: 2A per output (shared 10A total)
• Operating Temperature Range: -40°C to 70°C
• Storage Temperature Range: -40°C to +85°C
• Dimensions: 88.9 mm x 30.5 mm x 25.4 mm
• Weight: 0.24 kg
• Protection Rating: IP67
• Power Consumption: Max. 42W

-

3. Key Features

• High Reliability: Built with premium materials and rigorous testing for long-term stable operation.
• High-Density Design: Compact 32 I/O point configuration optimizes control cabinet space.
• Easy Installation & Configuration: Supports quick setup and flexible integration for diverse industrial automation applications.
• Fast Response: Real-time monitoring and response to signal changes, enhancing production efficiency.
• Independent Isolation: Each channel features isolated protection for enhanced safety.
• Status Indication: LED indicators provide real-time monitoring for simplified maintenance.

-

4. Structure & Components

• Modular Design: Compact and easy to install/maintain.
• Controller Interface: Seamless connectivity with PLCs (e.g., S800 series) via CPU unit for efficient control.
• Electrical Isolation: Independent isolation circuits per channel ensure signal integrity.
• Hardware Components: Includes relay drivers, output relays, optical isolation barriers, and EMC protection elements.
