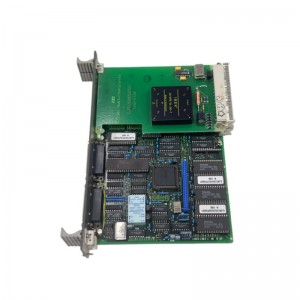

ABB GJR2368900R1510 87TS01K-E Industrial Coupling Module
ABB GJR2368900R1510 87TS01K-E
1. Product Overview
2. Main Technical Parameters
|
Parameter Category
|
Specification Index
|
|---|---|
|
Product Model
|
87TS01K-E
|
|
Part Number
|
GJR2368900R1510 / HESG447224R2
|
|
Product Catalog
|
Advant OCS with Master SW
|
|
Place of Origin
|
Sweden
|
|
HS Code
|
85389099
|
|
Interface Type
|
RS232c / RS422 Serial Interface
|
|
Operating Frequency
|
20 kHz – 2 MHz
|
|
Data Transmission Rate
|
Up to 10 Mbps
|
|
Power Supply Voltage
|
24VDC (Support 18-30VDC)
|
|
Power Consumption
|
Less than 1.5 W
|
|
Withstand Voltage
|
4kV
|
|
Supported Protocols
|
MODBUS RTU, Profibus DPV1, CI Protocol
|
3. Physical Specifications
|
Parameter
|
Value
|
|---|---|
|
Dimensions
|
1.98 × 0.2 × 2.61 cm / 100 × 60 × 20 mm
|
|
Weight
|
0.55 kg / 0.7 kg
|
|
Installation Space
|
Occupies 2 installation slots
|
|
Socket Connector
|
M8x0.8
|
4. Product Features
4.1 Core Functions
- Realizes the connection between computers/external systems and the PROCONTROL system
- Supports data communication with POS, PDDS and CDS via serial interfaces
- Applicable to all stations in the PROCONTROL bus system
4.2 Technical Advantages
- Equipped with standard RS232C interface to enable protocol-based data transmission with computers
- Supports redundant 24V power supply for stable and continuous operation
- Adopts a robust error detection mechanism to ensure reliable operation in complex industrial environments
- Features IP67 protection grade for dustproof and waterproof performance
4.3 Design Characteristics
- Compact structure design for easy installation and maintenance
- Compatible with manual rack slots 1 to 58 for flexible installation
- Capable of receiving and verifying electrical signals from the bus to identify signal errors
5. Structure and Composition
5.1 Main Components
- Coupling Interface Module: The core unit responsible for communication processing
- RS232C/RS422 Serial Interface: Standard external communication interface
- M8x0.8 Socket Connector: Interface for connecting external devices
- PROCONTROL Bus Interface: Internal system communication interface
- Power Input Terminal: Supports redundant 24V power supply access
5.2 Structural Characteristics
- Industrial-grade sealed design, adaptable to harsh industrial working environments
- Modular structure design, convenient for component replacement and daily maintenance
- Compact board-type structure, effectively saves equipment installation space
6. Application Fields
- Industrial Control System: PROCONTROL system matching application
- Advant OCS System: Advant OCS with Master SW system supporting application
- Industrial Automation Control: General process control and industrial automation scenarios
- Mechanical Equipment Control: Compatible with a wide range of industrial process equipment control
- Power System Control: Industrial on-site control network construction and operation
- Intelligent Building Control: Building automation system linkage control
- Material Handling System: Process control for manufacturing and material handling scenarios
