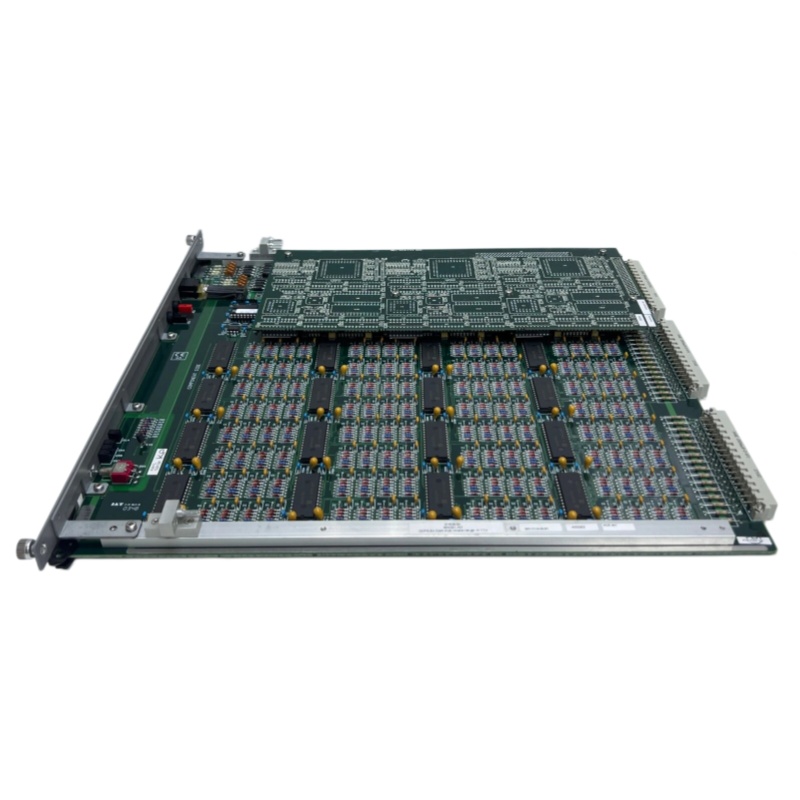

1. Product Overview
ABB MAI32LAD belongs to ABB’s D1724 series (such as D1724-20B/B1724-20B), which is a high-performance digital input/output (I/O) module. It features clearly labeled and color-coded terminal design, designed to simplify the wiring and installation process, and ensure compatibility with a variety of industrial automation equipment.
2. Key Parameters and Specifications
Digital Input/Output Type: Supports input and output of multi-channel digital signals.
Wiring Design: Adopts color-coded terminals and clear labels to reduce the risk of wiring errors.
Compatibility: Supports industry-standard protocols and interfaces to ensure interconnection with ABB and other manufacturers’ equipment.
3. Product Features
Easy Installation and Maintenance: The clear labeling and color-coded terminal design make the wiring and maintenance process more intuitive, reducing human errors.
High Reliability: Designed specifically for industrial environments, it can operate stably under harsh conditions, suitable for new installation or renovation projects.
Standardization: Complies with international industrial automation standards, facilitating integration into existing systems.
4. Structure and Composition
The module usually consists of the following parts:
Input/Output Terminal Block: Interface terminals with color coding and labels.
Communication Interface: Used for data exchange with upper computers or other controllers.
Mounting Bracket/Housing: Industrial-standard mounting structure, easy to fix in the control cabinet.
5. Typical Application Fields
ABB MAI32LAD is widely used in scenarios requiring accurate signal acquisition and control:
Industrial Automation: Used for status monitoring and process control of factory production lines.
Mechanical Control: Integrated into equipment such as robots and conveyors to implement precise action commands.
Infrastructure Management: Used to monitor the operating status of critical infrastructure to ensure safe operation.
6. Installation and Maintenance Recommendations
Installation: It is recommended to fix it in accordance with theDIN rail installation standard to ensure the module is firm and reliable.
Maintenance: Regularly check the terminal connection status to ensure no corrosion or looseness, and monitor the status through system software (such as ABB 800xA®).
Troubleshooting: Use its clear labeling and color-coding features to quickly locate faulty channels.
