1. Overview and Core Components

2. Parameters and Specifications

• System Capacity: The rack provides 12 standard module slots, which users can flexibly configure according to monitoring needs.

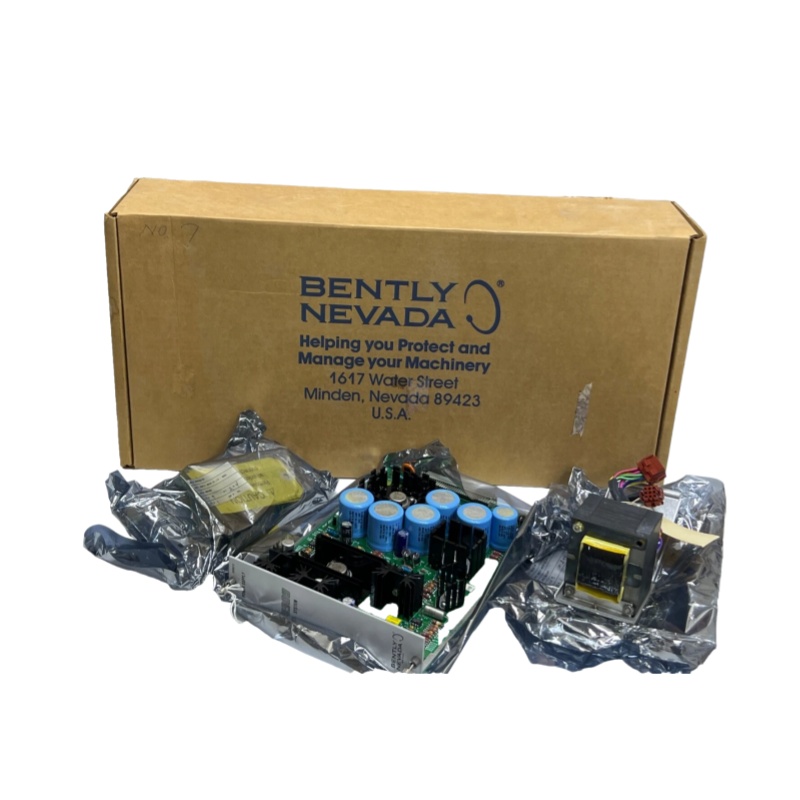

• Power Supply Specifications: The power supply module of the 3300/12 system (such as 3300/12-01-20-00) usually accepts 115 VAC or 220 VAC input voltage and is equipped with a line noise filter to ensure signal quality.
• Module Types: It supports various types of functional modules, such as the 3300/16-11-01-03-00-00-01 dual-channel vibration monitoring module and the 3300/65 data processing core module.
• Communication Interfaces: It is equipped with industrial standard communication interfaces such as RS-485, RS-232, and Modbus, supporting remote data transmission and integration.

3. Product Features

• Modular Design: Users can select different functional modules according to monitoring needs, and the system has extremely high expandability.
• High-Precision Monitoring: The built-in vibration monitoring module can provide various vibration parameters such as displacement, velocity, and acceleration with an accuracy of up to ±1%.
• Strong Anti-Interference Ability: The system adopts a metal shielded chassis design, which effectively prevents the impact of external electromagnetic interference and mechanical vibration.
• Multi-Protocol Support: It is compatible with various industrial control protocols (such as Foxboro, Allen-Bradley, Siemens, etc.) and is easy to integrate into existing automation systems.

4. Structure and Composition

• Rack/Chassis: Usually a 12-slot standard rack, providing physical installation and power distribution for modules.
• Power Supply: Located at the leftmost position (Position 1) of the rack, responsible for converting alternating current into the direct current voltage required by the system.
• Modules: Including vibration monitoring modules, temperature monitoring modules, speed monitoring modules, communication modules, etc.
• Sensors: Different probes (such as 3300/180-91-00 eddy current probes) are equipped according to different monitoring objects.

5. Application Fields

• Power Industry: Condition monitoring and fault diagnosis of generators and steam turbines.
• Petrochemical Industry: Vibration monitoring of compressors, pumps and production equipment.
• Aerospace Industry: Vibration monitoring of aero-engines and key components.
• Mining and Metallurgy: Continuous operation monitoring of large mechanical equipment.

6. Installation and Maintenance

Installation

• Rack Fixing: The rack is usually installed in a control room or computer room close to the equipment to be monitored, and needs to be fixed on a solid bracket to reduce external vibration interference.
• Module Insertion: Insert the functional module into the corresponding slot of the rack, ensuring that the plug is aligned with the slot and fully inserted.
• Sensor Connection: Connect the vibration sensor or temperature sensor to the system host through a dedicated junction box, paying attention to the wiring sequence and protective measures.

Maintenance

• Regular Inspection: Check whether the modules inside the rack are loose, corroded or overheated, and clean the dust inside the chassis.
• Sensor Calibration: Vibration sensors need to be calibrated regularly to ensure the accuracy of measurement data.
• Software Upgrade: Perform system parameter setting and upgrade through Bently Nevada System 1 software, and back up monitoring data regularly.
