ABB MicroSCADA Pro SYS 600C Automation System

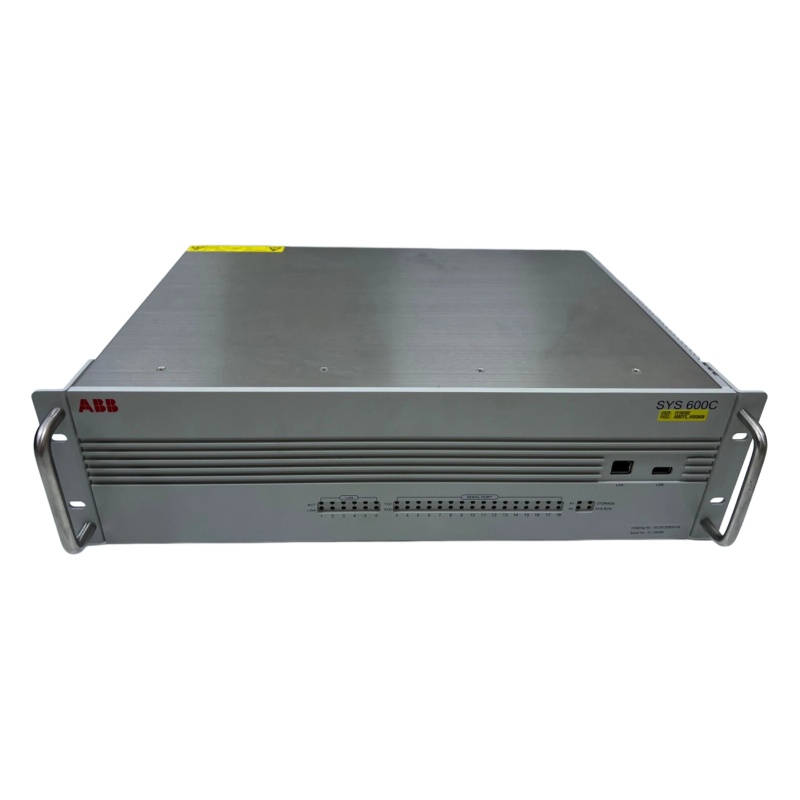

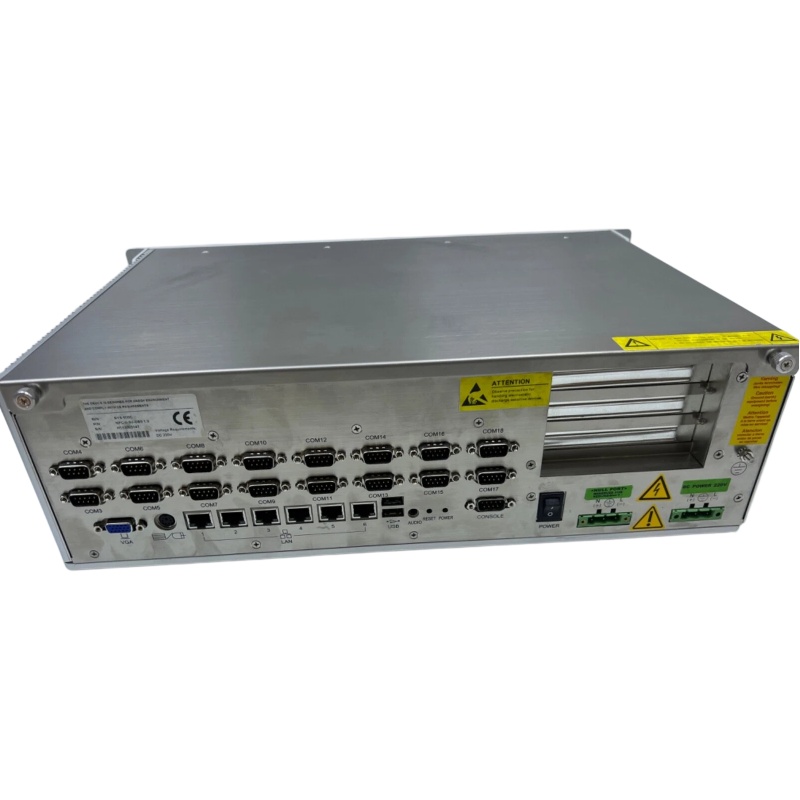

ABB MicroSCADA Pro SYS 600C
ABB MicroSCADA Pro SYS 600C is a compact automation system and a core component of the MicroSCADA Pro product family, providing complete solutions for substation control, network control, and distribution management. Built on the Microsoft Windows Server embedded platform, the system adopts a solid-state design, featuring no moving parts and high reliability.
Technical Specifications
|
Item
|
Specification
|
|---|---|
|
Operating System
|
Windows Embedded Server 2003 R2 / Windows Embedded 8.1 Pro
|
|
System Version
|
SYS 600C 3.94 / SYS600 9.4
|
|
Certification
|
IEC 61850 Standard Certification (Part 7-4, Part 8-1)
|
|
Communication Protocols
|
IEC 61850 Ed1/Ed2, IEC 60870-5-101/103/104, DNP 3.0 TCP/serial, Modbus TCP/RTU, LON, OPC UA
|
|
Data Interface
|
OPC Server (DA and A&E Modes), ODBC Client Mode
|
|
Redundancy Support
|
Dual Hot Standby, Redundant IEC 60870-5-101/104
|
|
Operating Life
|
Long-term Lifecycle Support
|
Product Features
- Compact and Rugged: Small in size, suitable for harsh environments such as transmission and distribution substations.
- High Reliability: No moving parts or other vulnerable components, adopting a solid-state design.
- High Scalability: Modern architecture, easy to adapt and expand, can be easily expanded into a communication gateway, HMI or communication server.
- Multi-protocol Support: Compatible with mainstream power system communication protocols, with strong compatibility.
- Redundant Design: Dual hot standby function to improve system reliability.
- High-performance Interface: Supports zooming, panning, dynamic bus coloring, and standard electrical symbols.
- Rich Functions: Event/alarm/block signal list, trend chart, measurement report.
- Cost-effective: Combined with mature MicroSCADA Pro technology, at a moderate price.
Structure and Composition
The SYS600C system consists of the following components:
- System Server: SYS600C Compact Communication Server
- Workstation: HMI (Human-Machine Interface) for system operation
- Communication Equipment: Switches, routers, modems
- Peripheral Equipment: Printers, GPS devices, alarm devices
- Control Hardware: IED devices, RTU, data acquisition units
The system can be configured as a single-computer control (for a small number of data points) or a large-scale hierarchical system (full redundancy, multiple data points).
Application Fields
- Substation Automation: Real-time monitoring and control of primary and secondary equipment.
- Transmission Network Control: Used in large hub substations and general distribution substations.
- Distribution Management: Integration with DMS600 Distribution Management System.
- Communication Gateway: Data communication gateway between IEDs and RTUs.
- Control Center: Used as HMI or communication server in control centers.
- Other Industrial Applications: In addition to power systems, it can be used for monitoring and control of various industrial processes.
Installation and Maintenance
Installation
- Integrated installation package with pre-configured software and hardware, facilitating customization, installation and operation.
- Based on Windows embedded system, compatible with ordinary PC Server.
- No special environmental requirements, adaptable to harsh environments.
Configuration Tools
- System Configuration Tool: Supports DNP data point editing and ASCII communication configuration.
- Online Backup Tool: Supports manual and automatic backup, using shadow technology.
- Import/Export Tool: Supports ASCII file import and export.
- Object Navigator: Supports IEC 61850 P-object types.
————————————————————————————————————-
