ABB PI716DI

Overview
The ABB PI716DI is a high-density digital input module designed for the ABB Ability™ System 800xA and select PLC platforms. Part of the PI700 series, this module captures binary signals from field devices such as limit switches, pushbuttons, proximity sensors, and relay contacts. Engineered for reliable performance in harsh industrial environments, the PI716DI supports 16 optically isolated input channels with programmable diagnostics and line monitoring.

Key Features

• 16 digital input channels (sink/source configurable)
• Optically isolated per channel group
• Input voltage range: 24 V DC (nominal), 18–30 V DC operational
• Programmable input delay (0.1 ms to 32 ms)
• Built-in line fault detection (short circuit / wire break)
• Hot-swappable via system backplane
• LED status indicators per channel + module health
• Compatible with ABB System 800xA, Compact Control Builder, and AC 800M controllers

Parameters (Plain Text Format)

• Number of inputs: 16 (isolated in groups of 8)
• Nominal input voltage: 24 V DC
• “0” signal voltage: -3 V to +5 V DC
• “1” signal voltage: +15 V to +30 V DC
• Input current per channel: typ. 5 mA at 24 V DC
• Input impedance: approx. 4.7 kΩ
• Scan cycle time: 1 ms (typical)
• Isolation: 500 V AC between field and system logic
• Power consumption: 70 mA (from 5 V backplane) + load dependent
• Operating temperature: -25°C to +70°C
• Storage temperature: -40°C to +85°C
• Humidity: 5% to 95% non-condensing
• Dimensions (H×W×D): 119 mm × 45 mm × 102 mm (approx.)
• Weight: 0.21 kg

Applications

• Manufacturing assembly lines and press automation
• Pump and valve status monitoring in water/wastewater
• Conveyor belt jam and limit switch detection
• Packaging machinery and material handling systems
• Building automation (door contacts, safety interlocks)
• Retrofit projects replacing legacy I/O modules

Structure & Composition

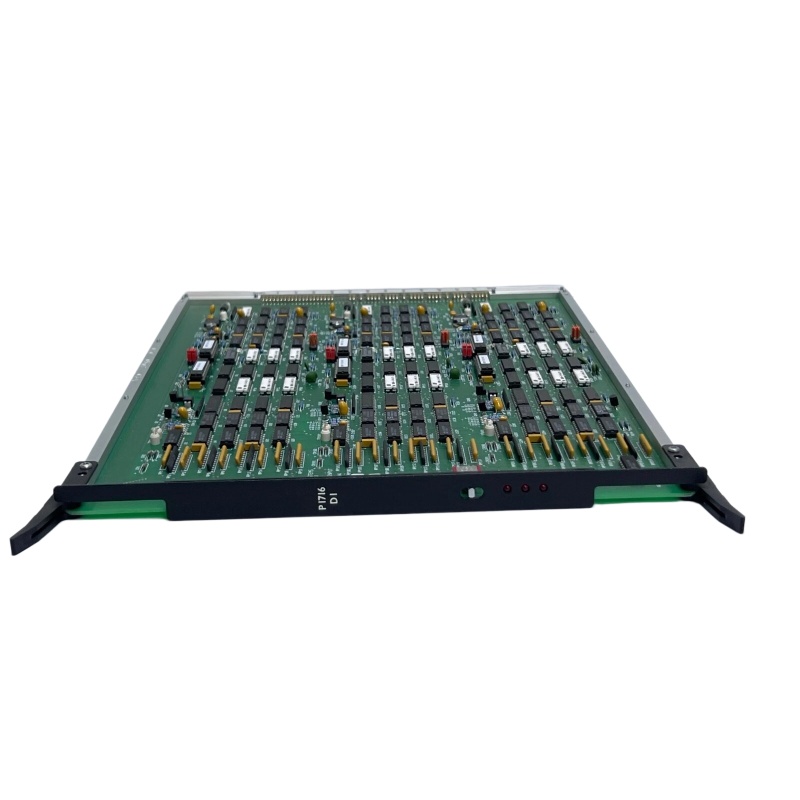

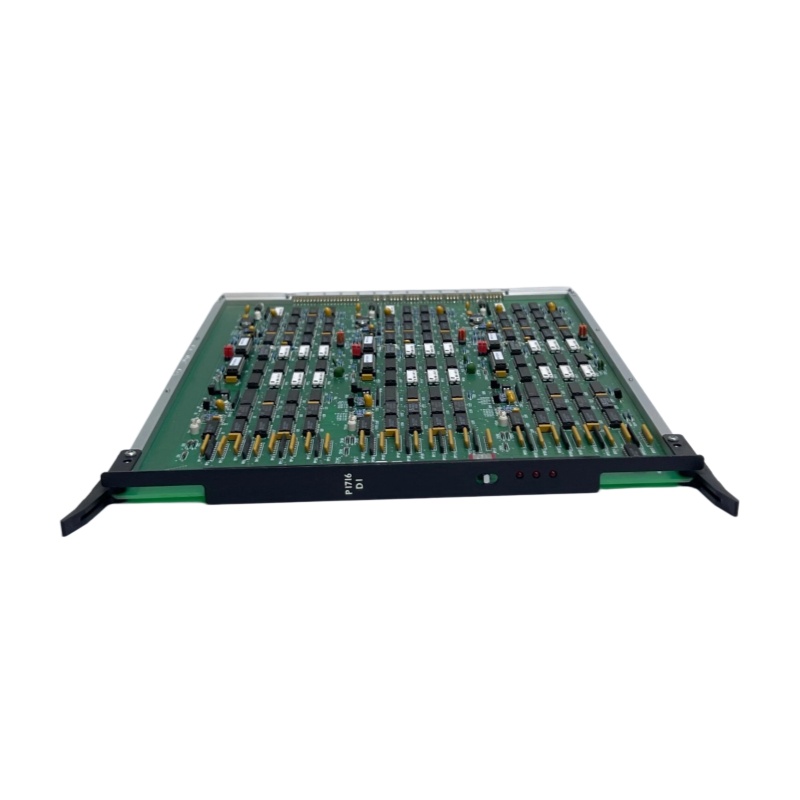

The PI716DI uses a compact single-width modular housing designed for DIN rail mounting within a System 800xA I/O rack. Each input channel passes through an optocoupler to ensure electrical separation between field wiring and the backplane logic. Onboard filtering capacitors suppress high-frequency noise, while a dedicated microcontroller handles diagnostic scanning and report generation. The front face features a removable terminal block (screw or spring-clamp options) and a translucent nameplate cover for labeling.

Installation & Maintenance

• Mounting: Snap module onto the backplane connector in any available slot (power off during insertion/removal)
• Wiring: Use shielded twisted-pair cable for long runs (>100 m); connect field common (0 V DC) to designated “COM” terminals per group
• Configuration: Assign I/O addresses using ABB Control Builder or System 800xA Configuration Wizard; set input delay and line monitoring via software parameters
• Maintenance:
  • Periodically check LED status: Green = normal, Red = fault, Flashing yellow = wire break detection active
  • Clean with compressed air at 6-month intervals if installed in dusty panels
  • No field recalibration required; replace only upon confirmed hardware failure
• Replacement: Module can be swapped without powering down the controller (hot-swap support requires system version 6.1 or higher)

Additional Information

• Certifications: CE, UL 61010-1, ATEX Zone 2 (when installed in certified enclosures), marine type approval (DNV GL)
• Environmental rating: IP20 (requires cabinet installation)
• Warranty: 24 months from date of shipment
• Ordering codes:
  • PI716DI (standard spring terminal)
  • PI716DI-S (screw terminal)
  • PI716DI/C (conformal coated for corrosive atmospheres)
• Spare parts: Separate terminal block (part# TB716) and labeling strips available
• Documentation: User manual 2NGA000291, System 800xA I/O Hardware Guide
