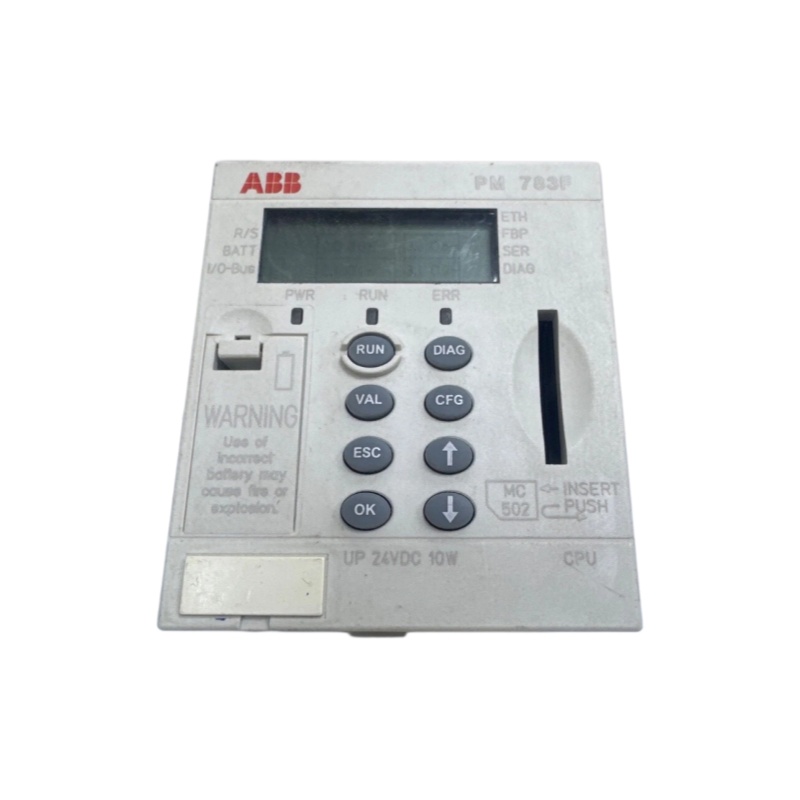

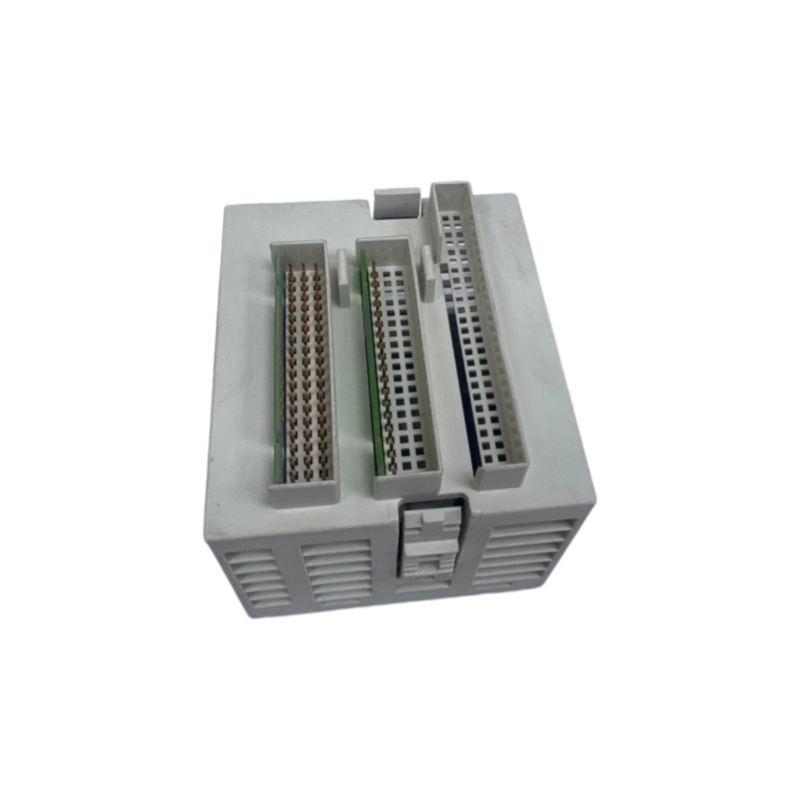

ABB PM783F 3BDH000364R0001 Central Processing Unit
ABB PM783F 3BDH000364R0001
1. Product Overview
ABB PM783F 3BDH000364R0001 is a central processing unit (CPU) module belonging to the ABB AC 800F / 800xA control system. It is a DCS (Distributed Control System) running on PLC hardware, specially adapted for small-scale industrial control applications with 6 to approximately 300 I/O signals. Designed for industrial control scenarios based on the S700 I/O system, this module serves as a core component in the fields of industrial automation and process control.
2. Technical Specifications & Parameters
|
Parameter Item
|
Specification
|
|---|---|
|
Model
|
PM783F 3BDH000364R0001
|
|
Processor
|
32-bit High-performance RISC Processor
|
|
Memory Capacity
|
10 MB (including 2 MB battery-backed memory)
|
|
Communication Interfaces
|
100 Mbit/s Ethernet, Modbus Communication, 2 Serial Line Interfaces
|
|
Operating System
|
Freelance OS 9.2SP2 or higher version
|
|
Power Supply Requirement
|
External 24 VDC Power Supply
|
|
Operating Temperature
|
-20℃ ~ +60℃
|
|
Relative Humidity
|
5% – 95% (Non-condensing)
|
|
Ingress Protection Grade
|
IP20
|
|
Product Dimensions
|
54 mm (Depth) × 76 mm (Height) × 67.5 mm (Width)
|
|
Product Weight
|
0.15 kg
|
|
Mounting Method
|
DIN Rail Mounting
|
3. Product Features
3.1 High-performance Processing Capacity
- Equipped with a high-performance processor to realize fast cycle time and efficient data processing
- Supports 8 configurable priority-driven tasks with adjustable cycle time, plus one PLC-type cyclic task running at the maximum speed
3.2 Comprehensive Communication Performance
- Onboard 100 Mbit/s Ethernet port for data communication among controllers, operator stations and engineering tools
- Dual serial line interfaces: one for Modbus communication, the other for equipment diagnosis
3.3 Modular Design Structure
- Compatible with expandable power supply units, Ethernet modules and fieldbus modules
- Supports local I/O, remote I/O and third-party I/O connection
- Connectable with S700 I/O modules, or used as remote I/O via PROFIBUS protocol
3.4 Convenient Maintenance
- Built-in small front panel display for real-time status viewing and fault diagnosis
- Comes with key lock function to improve equipment operation security
- Supports online modification and maintenance without system shutdown
- Minimum I/O scan time up to 2 ms, with built-in short-circuit and wire break detection function
3.5 High Operational Reliability
- Adopts fault-tolerant system design to guarantee high reliability of hardware and software
- 2 MB of the total 10 MB memory adopts battery backup design to prevent data loss during power failure
4. Structure & Composition
4.1 CPU Module Body
Original PM783F CPU module
4.2 Matching Accessories
- Terminal Base TB 711F (3BDH000365R0001): Provides fixed mounting platform for PM783F CPU module
- Backup Battery TA521: Offers battery power backup for 2 MB memory storage
4.3 Parameters of Terminal Base TB711F
- Dimensions: 30 mm (Depth) × 95.5 mm (Width) × 135 mm (Height)
- Weight: 0.175 kg
- Built-in ports: 24 VDC power input port, 1 fieldbus slot, Ethernet RJ45 port, COM 1/2 serial ports
- Supports up to 2 couplers, realizing system expansion via additional I/O modules or communication interfaces
5. Application Fields
ABB PM783F 3BDH000364R0001 is widely applied in the following industrial sectors:
|
Application Industry
|
Specific Application Scenarios
|
|---|---|
|
Chemical Industry
|
Process control, reactor monitoring, pipeline control, etc.
|
|
Petroleum Industry
|
Refinery automation, oil transmission pipeline monitoring, etc.
|
|
Metallurgical Industry
|
Industrial automatic control for steelmaking and steel rolling
|
|
Electric Power Industry
|
Power plant control system, power grid monitoring, etc.
|
|
Building Materials Industry
|
Production process control for cement plants, glass factories, etc.
|
|
Water Treatment Industry
|
Sewage treatment, drinking water treatment plant automatic control
|
|
Pharmaceutical Industry
|
Automatic control of pharmaceutical production lines
|
|
Building Automation
|
Building management control system
|
|
Transportation Industry
|
Rail transit automatic control system
|
|
General Manufacturing
|
Production line control, on-site data acquisition, etc.
|
|
Material Handling
|
Conveyor operation control, automated warehousing management, etc.
|
|
Packaging Industry
|
Automatic control of packaging machinery
|
————————————————————————————————————-
