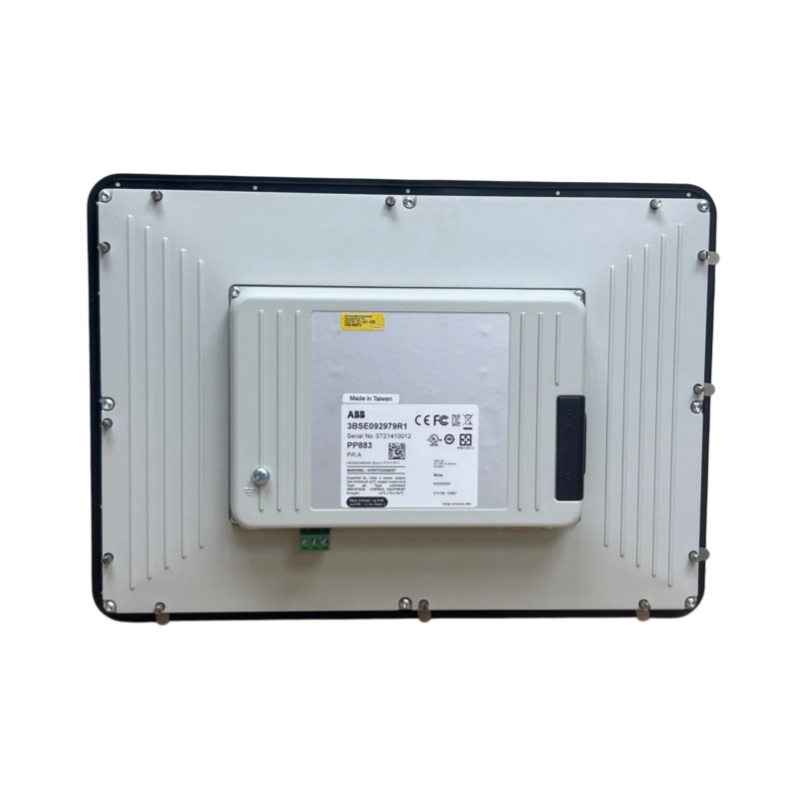

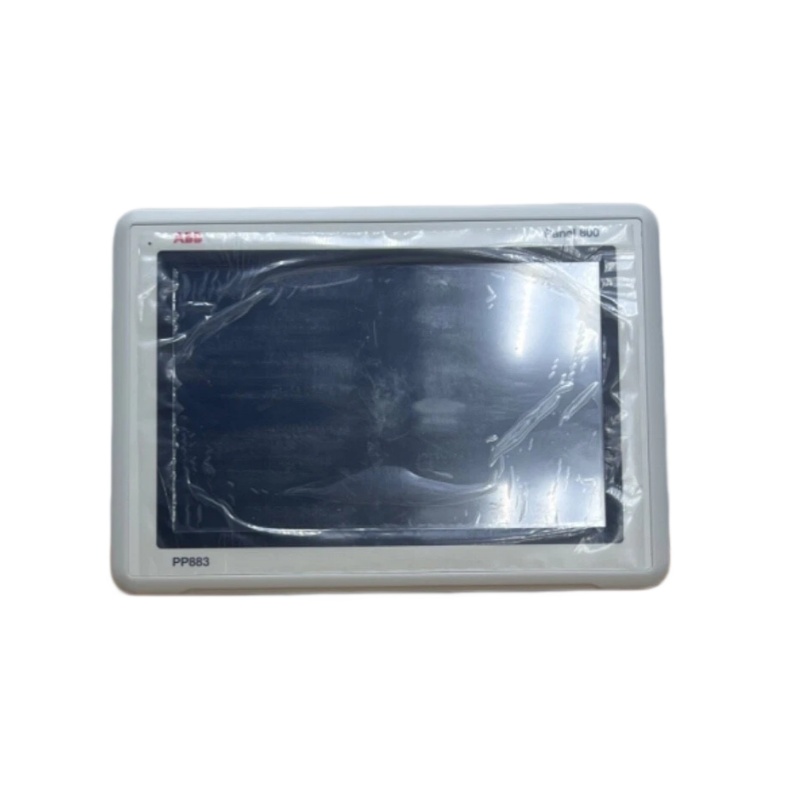

ABB PP883 3BSE092979R1 Program Operation Panel
ABB PP883 3BSE092979R1
1. Overview
ABB PP883 is a Process Operation Panel designed specifically for industrial automation control systems. It is usually used to display and monitor the operating status of PLC (Programmable Logic Controller) and provide an intuitive human-machine interface.
2. Key Parameters
Display Type: 8.4-inch LCD / TFT Display
Resolution: 640×480 Pixels (VGA)
Backlight: LED Backlight
CPU: ARM9 (1 GHz)
Main Memory: 512 MB DDR
External Storage: 1 GB SSD (approximately 200 MB for applications)
Dimensions: Approximately 220mm x 180mm x 50mm
Weight: Approximately 0.9 kg
Note: Specific parameters may vary slightly depending on production batches or customization requirements. It is recommended to confirm the latest product manual before purchasing.
3. Product Features
High Brightness Display: Adopting LED backlight technology, it can maintain clear readability even in complex lighting environments of industrial sites.
Compact Size: The 8.4-inch display balances a wide field of view and installation flexibility, suitable for control cabinets with limited space.
Stability and Reliability: ABB’s industrial panel design focuses on anti-interference capability and stability for long-term continuous operation.
Easy Integration: Usually used as an auxiliary display device for PLC (such asABB 800xA series), supporting multiple communication protocols.
4. Structure and Composition
Display Unit: Including LCD/TFT screen and its driving circuit.
Control Motherboard: Built-in ARM9 processor, responsible for processing display commands and communication protocols.
Power Module: Converts external power supply (such as 24V DC) into the voltage required inside the panel.
Connection Interface: Usually equipped with RJ45 Ethernet port, RS-232/485 serial port or USB interface for communication with upper computers or PLCs.
5. Application Fields
ABB PP883 Process Operation Panel is widely used in industrial sites that require real-time monitoring, including but not limited to:
Process Control: Continuous production processes such as chemical industry, petroleum, papermaking,food and beverage, etc.
Machine Vision: As a status display for vision systems.
On-site Debugging: An auxiliary tool for engineers to debug parameters on site.
Safety Monitoring: Monitoring the changing trend of key parameters.
6. Installation and Maintenance Recommendations
Power Requirements: Please carefully check the voltage and current specifications on the product nameplate to ensure the use of a power supply that meets the specifications (usually 24V DC).
Communication Wiring: According to your PLC model, select the correct communication cable (such as RS-485, Ethernet, etc.) and pay attention to the wire sequence.
Environmental Adaptation: Although the panel has industrial-grade protection, it is still recommended to install it in a dust-free, dry environment with appropriate temperature (0°C-50°C).
Daily Maintenance:
Dust Prevention: Regularly clean the screen surface to prevent dust accumulation from affecting the display effect.
Heat Dissipation: Ensure that the installation location has sufficient ventilation space to avoid long-term high-temperature operation.
————————————————————————————————————-
