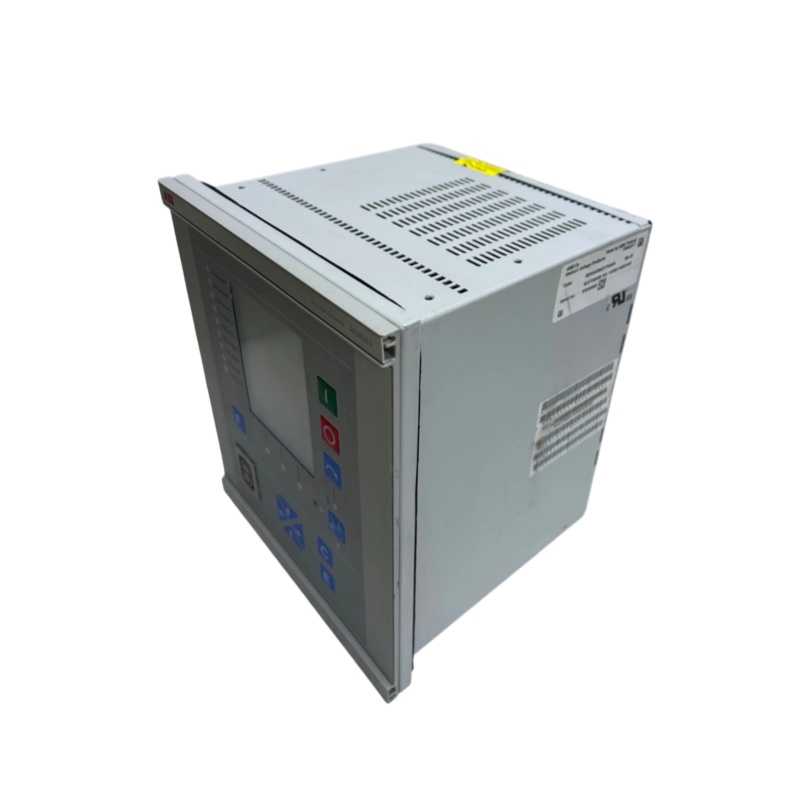

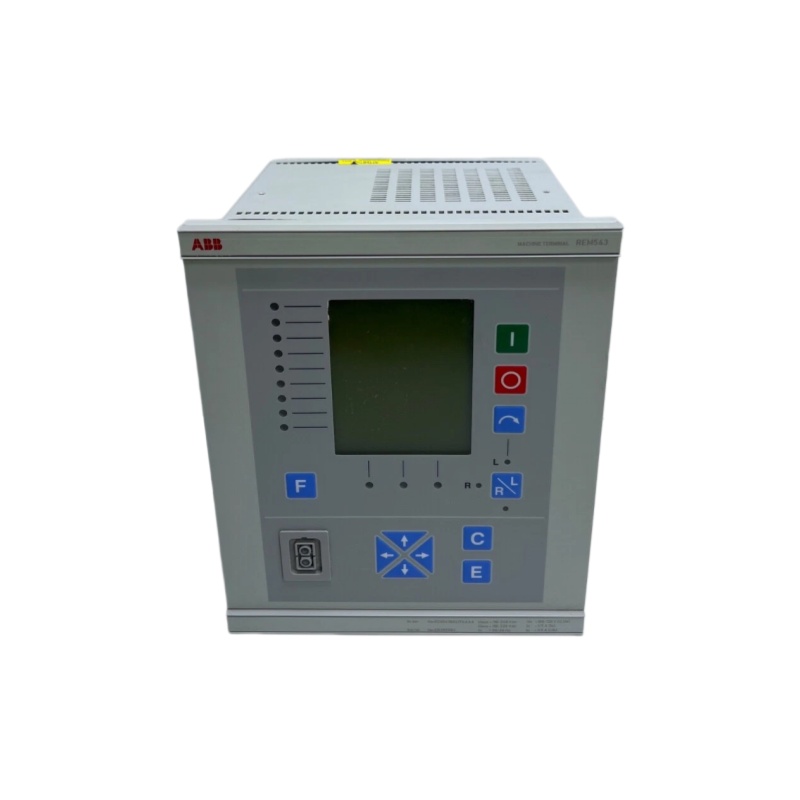

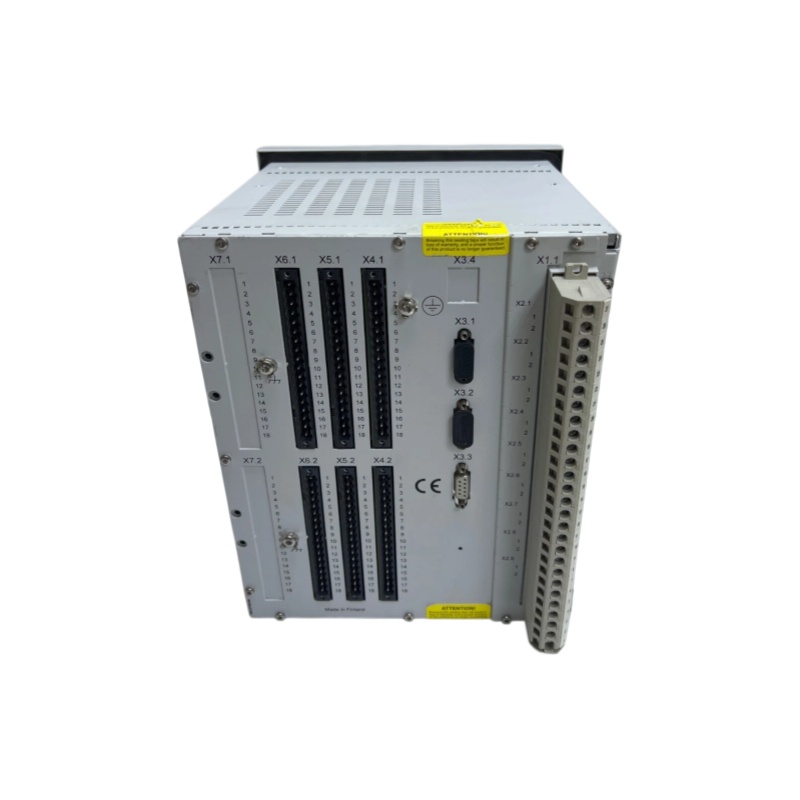

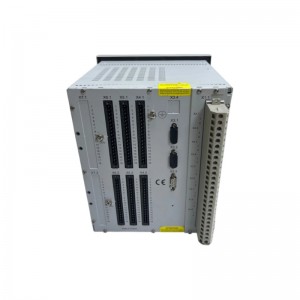

ABB REM543, REM543BG217AAAA Processor Protection Terminal
ABB REM543, REM543BG217AAAA
Overview
Technical Specifications
|
Parameters
|
Specifications
|
|---|---|
|
Rated Control Voltage
|
24-240 V AC/DC (configurable)
|
|
Rated Voltage
|
100V/110V/120V (optional)
|
|
Rated Frequency
|
50Hz or 60Hz (optional)
|
|
Analog Sampling Frequency
|
2kHz for 50Hz systems, 2.4kHz for 60Hz systems
|
|
Digital Inputs
|
Typically 16-25 logical binary inputs (configurable)
|
|
Digital Outputs
|
10-18 output relays (tripping and signaling)
|
|
RTD Inputs
|
Optional (for temperature measurement)
|
|
Analog Outputs
|
4
|
|
Device Weight
|
Approx. 8 kg
|
|
Protection Class
|
IP44
|
|
Mechanical Dimensions
|
Width: 223.7 mm (19-inch rack, half-width) Height (Frame): 265.9 mm (6U) Height (Enclosure): 249.8 mm Depth: 235 mm
|
Product Features
Integrated Protection Functions
Supported ANSI Protection Codes
- 49 (Thermal Protection)
- 50/51 (Overcurrent)
- 27/59 (Undervoltage/Overvoltage)
- 81 (Over/Under Frequency)
- 46 (Unbalance/Negative Sequence Current)
- 48/66 (Start/Run Monitoring)
- 87M (Differential Protection)
- 51N (Earth Overcurrent)
Flexibility
Communication Capabilities
Human-Machine Interface (HMI)
Safety Level
Special Application Certification
Structure and Composition
|
Components
|
Quantity
|
|---|---|
|
Main Processor Card
|
1
|
|
Power Supply Module (PS1)
|
1 (configurable for 110/120/265V AC or 110/125/220V DC, etc.)
|
|
Digital I/O Cards
|
2 (80V DC and 18V DC)
|
|
Analog I/O Card (RTD/Analog)
|
1
|
|
HMI Graphic Display
|
1 (fixed) + 1 (external optional)
|
|
Analog Input Channels
|
9
|
|
Current Transformer Interfaces
|
6 (1/5A and 0.2/1A optional)
|
|
Voltage Transformer Interfaces
|
3 (100V)
|
Self-Supervision Functions
- RAM/ROM circuit monitoring
- CPU watchdog
- Parameter memory circuit
- Power supply monitoring
- Internal communication bus
- A/D converter and analog multiplexer
Application Fields
- Power Plants: Protection of generators and generator-transformer units in diesel generators, hydropower units, and thermal power units.
- Industrial Facilities: Protection of large motors in mines, paper mills, petrochemical plants, etc.
- Power Distribution Networks: Medium-voltage power distribution (10-35kV feeders, transformers, motors).
- Rail Transit: Electric traction systems.
- Marine and Offshore Facilities: Certified for marine and offshore platform applications.
————————————————————————————————————-
