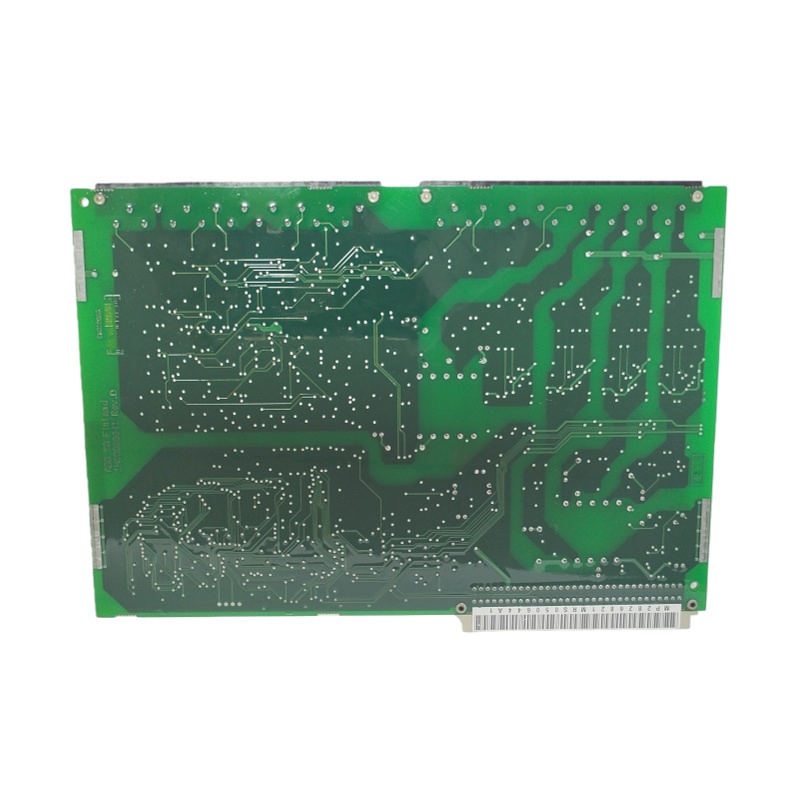

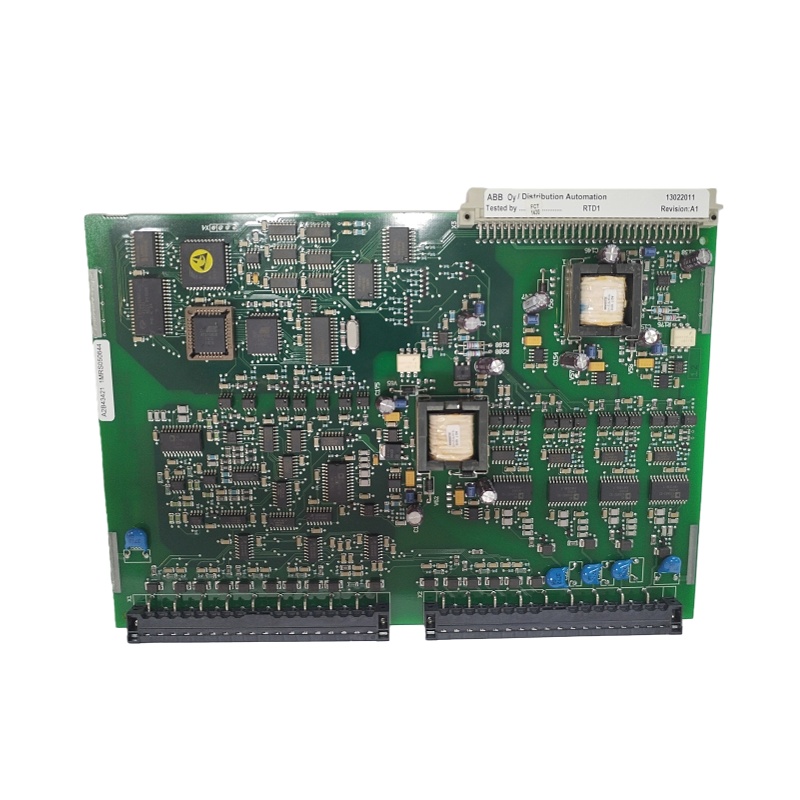

ABB RTD1 1MRS050644

The ABB RTD1 1MRS050644 is a signal analog input module designed for distributed control systems (DCS), specifically engineered to collect analog signals from resistance temperature detectors (RTDs) and similar sensors. Classified as a Certification Level 1 product, it is manufactured in China and fully compatible with ABB’s RTD1 series control platforms.

Key Technical Specifications

• Input Channels: 4 channels, configurable for 100 Ω platinum RTDs (3-wire connection) or other analog sensors.
• Resolution: 16-bit (including sign bit), with maximum error ≤ 0.1%.
• Input Range: Supports temperature measurement from 0 °C to +400 °C (for 100 Ω RTDs), with common-mode rejection ratio (CMRR) ≥ 90 dB (0–50 Hz).
• Anti-interference Performance: Equipped with surge protection, isolated inputs and high electromagnetic compatibility (EMC) immunity, compliant with ANSI C37.90 standards.
• Power Supply: 24 V DC, featuring low power consumption.
• Dimensions & Weight: 33 cm × 24 cm × 2.4 cm, weighing approximately 0.24 kg.
• Packaging: Single-unit packaging with a gross weight of 0.265 kg, ideal for on-site spare parts inventory management.

Product Features

1. High Precision: 16-bit A/D converter combined with 0.1% maximum error ensures accurate temperature measurement.
2. Superior Reliability: Built-in surge suppression and isolation circuits protect the module from damage caused by external transient interference.
3. Modular Design: Aligns with ABB RTD1 series modular architecture, enabling quick on-site replacement and system expansion.
4. Wide Compatibility: Supports multiple analog sensors (RTDs, thermocouples, 0–10 V voltage signals, 4–20 mA current signals) to meet diverse process requirements.
5. Compact & Lightweight: Small footprint and low weight facilitate easy installation in space-constrained control cabinets.

Structure & Components

• Front-end Input Unit: 4-channel analog input terminals integrated with isolation and surge protection functions.
• A/D Conversion Unit: 16-bit high-precision analog-to-digital converter for signal digitization.
• Digital Signal Processing (DSP) Module: Implements calibration, linearization and real-time diagnostic functions.
• Communication Interface: Enables data exchange with upper-level control systems via the ABB RTD1 bus.
• Indicator Lights: Status LEDs that display module operation, fault alerts and communication status.

Typical Application Fields

• Temperature monitoring and protection in power systems (substations, distribution networks).
• Process variable acquisition in process industries such as petrochemicals and metallurgy.
• Temperature control of boilers and steam turbines in power plants (thermal power, nuclear power).
• High-reliability temperature measurement scenarios including rail transit and aerospace.

Installation & Maintenance Guidelines

• Installation Location: Mount the module in a well-ventilated control cabinet free from strong magnetic fields or electromagnetic interference.
• Wiring Requirements: Adopt 3-wire connection for 100 Ω platinum RTDs and ensure all terminal connections are tight and secure.
• Surge Protection: Install surge protectors compliant with IEC 61850 standards at the module input terminals to enhance transient resistance.
• Regular Calibration: Perform calibration every 6 months using standard RTDs with known resistance values for comparison.
• Fault Diagnosis: The module is equipped with status LEDs. When anomalies occur, diagnostic codes can be retrieved via the upper-level system to quickly locate fault points.
• Replacement & Maintenance: Features plug-and-play design. For on-site replacement, simply power off the system, remove the old module and insert the new one, minimizing system downtime.
