ABB SMU615 SMU615HBABBA1AN21G

1. Product Overview

The SMU615 is a dedicated Merging Unit developed by ABB for substation applications. It acquires current and voltage signals from measurement transformers, integrates these signals into a standard digital output format, and provides data support for various power system protection devices. As a member of the ABB Relion® product portfolio, the SMU615 features a compact, simplified and withdrawable design, serving as a core component of digital substations.

The SMU615 does not integrate protection functions itself. Instead, it provides physical interfaces for primary switchgear equipment, including circuit breakers, disconnectors and earthing switches, and is fully configured to perform its core merging unit functions.

2. Technical Parameters

Parameter Item	Specification
Dimensions	161.5 × 165.5 × 40 mm
Weight	1.5 kg
Ingress Protection Rating	IP20
Power Supply	48-250 Vdc / 100-240 Vac
Communication Protocol	IEC 61850, IEC 61850-9-2 LE
Time Synchronization	IEEE 1588 v2
Input Type	Conventional CT/VT Input, Sensor Input
Maximum Number of Clients	5 Concurrent Clients
Redundancy Protocol	PRP/HSR Ethernet Redundancy

3. Product Features

3.1 IEC 61850 Standardization

Fully designed and developed in compliance with IEC 61850 standards, ensuring stable communication and excellent interoperability in digital substation systems.

3.2 Process Bus Support

Supports IEC 61850-9-2 LE process bus, enabling high-precision real-time transmission of sampled measurement values.

3.3 Dual Input Compatibility

Compatible with both conventional CT/VT inputs and sensor inputs, delivering high operational flexibility to adapt to diverse substation transformation scenarios.

3.4 Compact & Withdrawable Design

Adopts a withdrawable unit structure, which greatly simplifies on-site installation, daily inspection and maintenance work, improving operational efficiency.

3.5 Flexible Configuration Options

Equipped with two optional application configurations, which can be selected according to the quantity requirement of additional physical interfaces to match different application demands.

3.6 Comprehensive Self-Monitoring Functions

The built-in self-supervision system realizes full-cycle status monitoring of equipment operation, covering the following items:

Overall system self-monitoring
Current circuit monitoring
Fault monitoring of fuses
Circuit breaker status monitoring
Ethernet channel status monitoring

3.7 Diversified Human-Machine Interfaces (HMI)

Local HMI (LHMI): Configured with physical buttons, LED status indicators and dedicated communication ports for on-site manual operation and status checking.
Web HMI (WHMI): Supports secure browser access based on HTTPS and TLS encryption protocols, ensuring remote safe operation and parameter management.

3.8 High Operational Availability

Supports Parallel Redundancy Protocol (PRP) and High Availability Seamless Redundancy (HSR) to eliminate single-point failures and guarantee high reliability of real-time data communication.

4. Structure and Composition

The SMU615 merging unit consists of standardized physical structures and complete functional modules, with detailed components as follows:

4.1 Physical Structure

Compact mounting enclosure suitable for standard substation installation scenarios

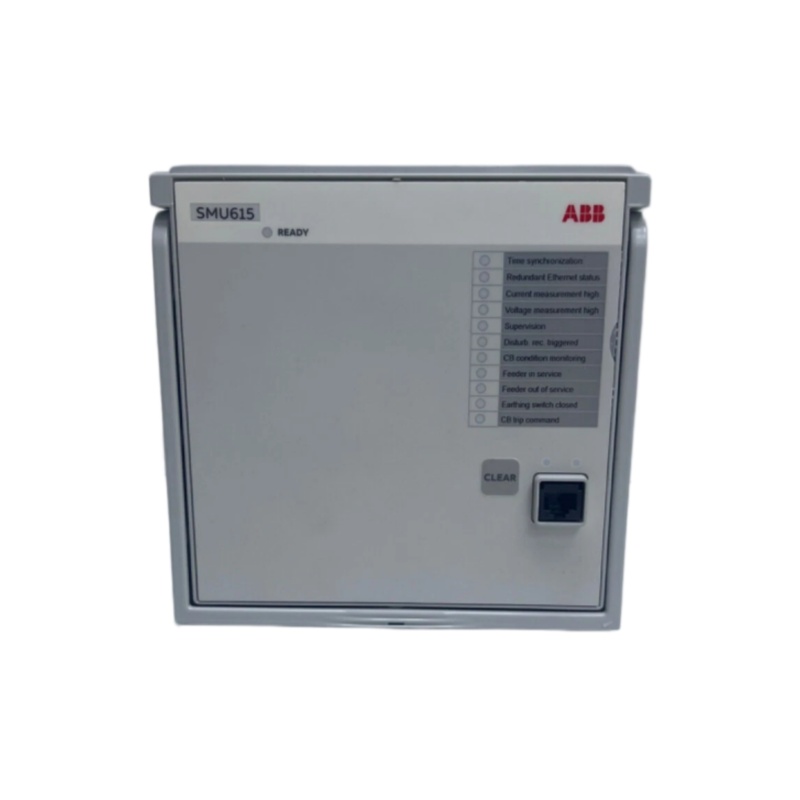

Front panel: Equipped with display screen, status indicator lights and operation buttons

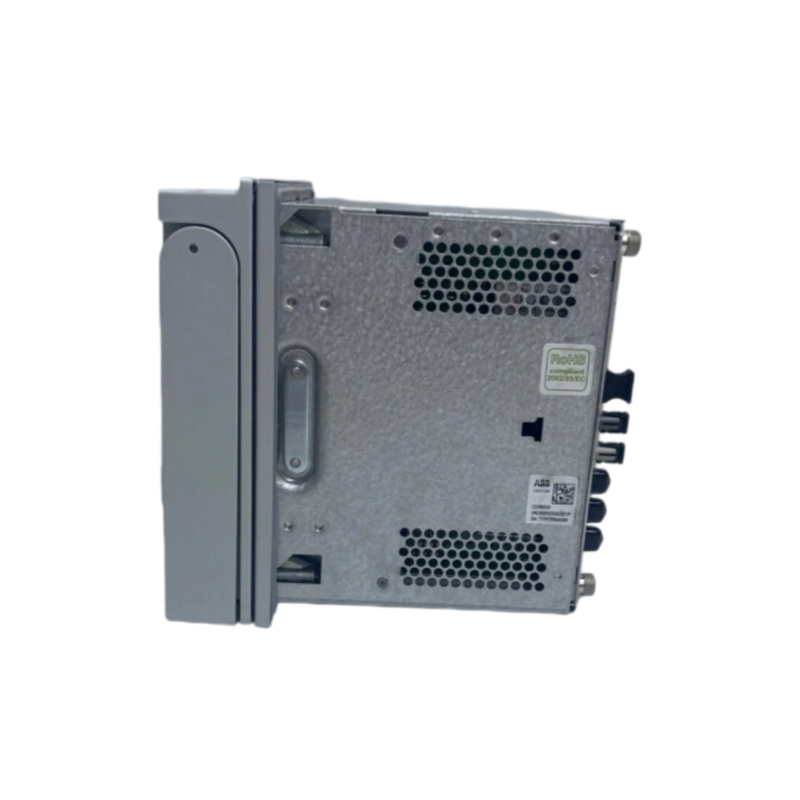

Side panel: Integrated with communication ports and wiring terminals
Integrated withdrawable unit structure for easy disassembly and replacement

4.2 Functional Modules

Sensor input module: Responsible for accurate acquisition and preprocessing of current and voltage signals
Sampled Value (SMV) functional block: Processing and outputting real-time sampled measurement data
GOOSE functional block: Realizing generic object-oriented substation event transmission and interaction
Configurable logic block: Supporting user-defined logic programming and flexible function expansion
Type conversion functional block: Completing signal format conversion and standard adaptation
Binary input and output module
Ethernet communication interface (3 × RJ45 ports)

4.3 Communication Interfaces

Equipped with 3 standard 100Base TX Ethernet RJ45 ports, supporting stable connection and data interaction with multiple concurrent client devices.

5. Application Fields

With excellent compatibility and stability, the SMU615 merging unit is widely applied in multiple power system scenarios:

Digital Substations: Serving as key process-layer equipment to realize standardized transmission of digital sampled values.
Power System Protection: Providing high-precision current and voltage measurement data for relay protection devices to support accurate protection judgment and action.
Substation Monitoring and Control: Supporting real-time status monitoring, data statistics and remote control of substation equipment.
Medium-Voltage Switchgear: Perfectly adapted to ABB switchgear systems including UniGear and SafeGear series.
Distribution Network Protection System: Applicable to centralized protection systems of distribution substations to improve distribution network operation safety.
Process Bus System: Undertaking signal merging and data transmission tasks in the IEC 61850-9-2 process bus architecture.

————————————————————————————————————-
