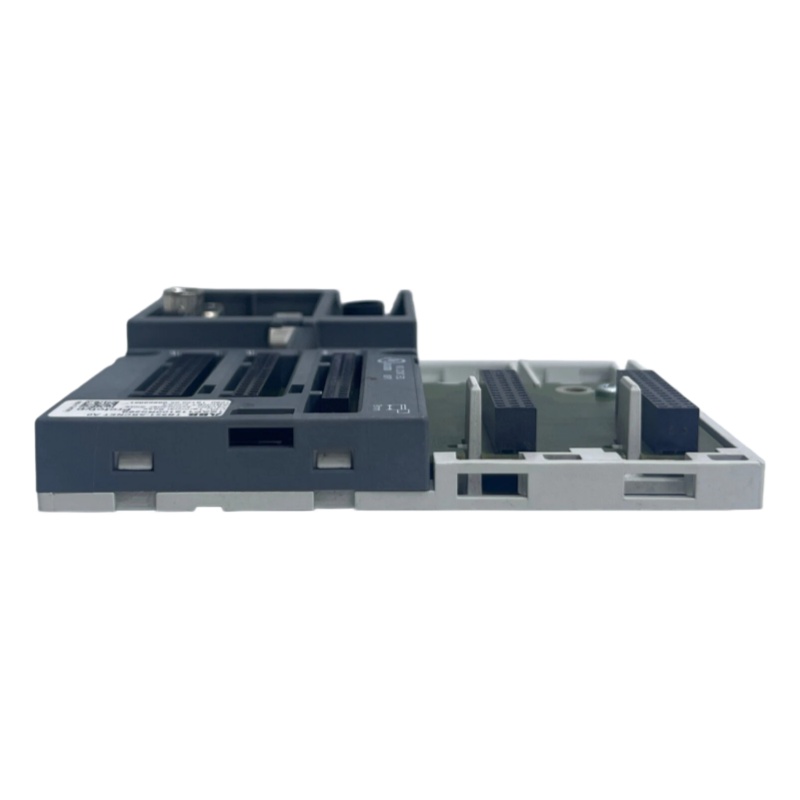

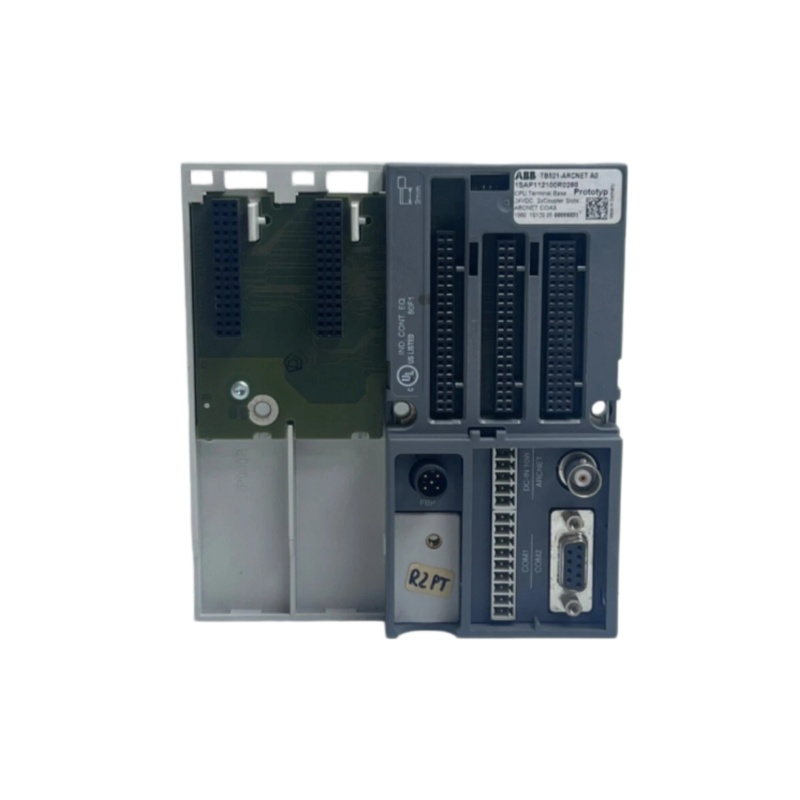

ABB TB521-ARCNET 1SAP112100R0260 Terminal Baseboard
ABB TB521-ARCNET
1. Overview
2. Product Specifications
|
Parameter Item
|
Specification Value
|
|---|---|
|
Supply Voltage
|
24V DC
|
|
Overall Dimensions
|
135mm (H) × 28mm (D) × 123.5mm (W)
|
|
Weight
|
0.187 kg
|
|
Ingress Protection Rating
|
IP20
|
|
Operating Temperature
|
0℃ to +60℃
|
|
Storage Temperature
|
-40℃ to +70℃
|
|
Cable Cross-section Area
|
0.08mm² to 1.5mm²
|
|
Packaging Dimensions
|
147mm × 131mm × 40mm (1 unit per box)
|
Product Coding Information
- Product ID: 1SAP112100R0260
- ABB Type Designation: TB521-ARCNET
- EAN Barcode: 4016779711449
- UNSPSC Code: 32151703
3. Product Features
- Dual Communication Module Slots: Equipped with 2 independent communication module slots, supporting flexible hardware configuration and functional expansion.
- ARCNET Interface: Compliant with ARCNET network communication protocol, fitted with a dedicated ARCNET COAX connector for reliable industrial network connection.
- Dual Serial Interfaces: Integrated with 2 RS232/RS485 serial interfaces, applicable for program downloading, ASCII communication, and Modbus/CS31 protocol communication.
- Terminal Type: Adopts spring terminal connection design for fast, stable and tool-free wiring.
- Product Lifecycle Status: In active production and sales status, with complete after-sales support and technical service.
- Certification & Compliance: Compliant with SCIP and WEEE environmental standards, and certified by CE, C-Tick, KCC and other international authoritative certifications.
- Country of Origin: Germany (DE)
4. Structure and Composition
4.1 Core Structure Components
- Terminal Base Main Body: The basic carrier for installing and fixing AC500 processor modules and extended communication modules.
- Processor Module Slot: Compatible with all processor modules of the AC500 V2 series, including the PM585 series modules.
- Communication Module Slots: 2 reserved slots, supporting the installation and configuration of mainstream communication modules such as CM574-RS and CM579-PNIO.
4.2 Interface Configuration
- 1 × ARCNET coaxial connector
- 2 × D-SUB serial interfaces (RS232/RS485 adaptive)
- Spring-type wiring terminals
4.3 Installation Methods
- Standard DIN rail mounting (applicable to 15mm or 7.5mm standard industrial rails)
- Wall mounting via fixing screws (screw grounding is required for wall installation to ensure operational safety)
5. Application Fields
- Distributed Automation System: Serves as the dedicated terminal base for AC500 V2 distributed PLC systems to realize distributed control and signal transmission.
- General Industrial Automation: Suitable for all industrial automation scenarios that require ARCNET network communication.
- Industrial Process Control: Matches ABB AC500 series PLCs for stable and efficient industrial process monitoring and control.
- Machine Controller: Used as an essential part of the AC500 Machine Controller Kit for intelligent machine control systems.
- Enterprise-level Automation Solutions: Applicable to B2B industrial automation system construction and customized solution deployment.
5.1 Typical System Configuration
- Basic configuration: CPU Module + TB521-ARCNET Terminal Base + Communication Module
- Supports a maximum of 10 local I/O expansion module bases for flexible I/O signal expansion
- Compatible with FBP bus adapter expansion, enabling seamless switching of multiple bus protocols including Profibus DP and DeviceNet
