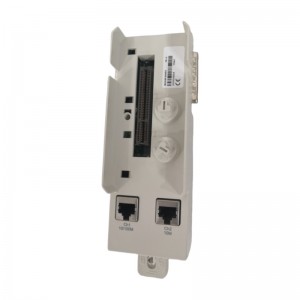

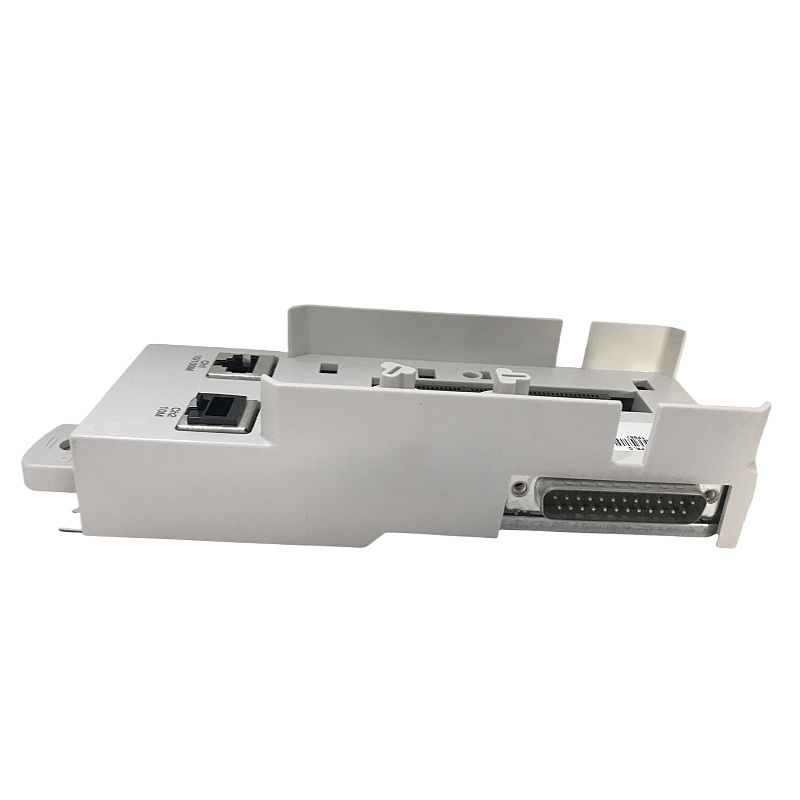

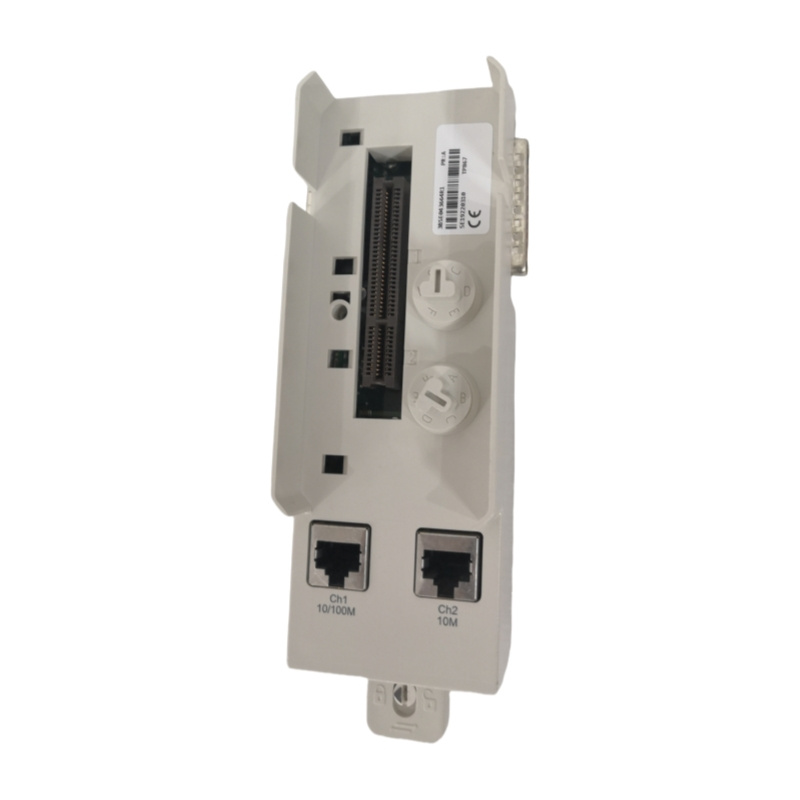

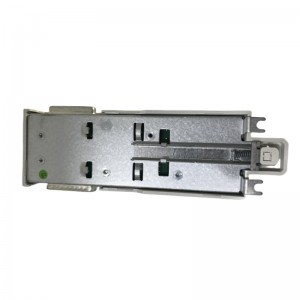

ABB TP867 3BSE043664R1

TP867 3BSE043664R1 is a high-performance communication interface backplane (CI867 series) launched by ABB for its S800 I/O series. It is specially designed for PROFIBUS DP-V1/V2 networks and industrial Ethernet protocols such as Modbus TCP and Ethernet/IP. In the control system, it plays a core role in power distribution, signal transmission and module mechanical support, serving as the “backbone” for realizing reliable interconnection between controllers, I/O devices and communication modules.

Main Technical Parameters

• Power Supply: 24 V DC, rated current 5 A
• Operating Temperature: -25 °C – +70 °C
• Storage Temperature: -40 °C – +85 °C
• Protection Class: IP20 (DIN rail mounting)
• Dimensions: Approximately 85 mm × 35 mm × 125 mm (W × H × D)
• Weight: Approximately 150 g (0.18 kg)
• Interfaces: PROFIBUS DP-V1/V2, Modbus TCP, Ethernet/IP with two Ethernet ports, up to 100 Mbps
• Compatible Modules: ABB I/O modules such as CI867, CI868, CI871, CI873, CI874, etc.

Product Features

1. Modular Design: Adopts standard DIN rail mounting for easy hot-swapping and system expansion.
2. Multi-protocol Support: Compatible with PROFIBUS DP, Modbus TCP and Ethernet/IP simultaneously to meet different fieldbus requirements.
3. High Reliability: Equipped with vibration and electromagnetic interference resistance, complying with the requirements of harsh industrial environments.
4. Power Distribution Function: Provides stable 24 V DC power for connected I/O and communication modules to ensure continuous system operation.
5. Compact and Lightweight: Small size and light weight, suitable for control cabinets with limited space.
6. Standard Compliance: Certified by CE and RoHS, meeting EU environmental protection and safety specifications.

Structure and Composition

• Backplane Body: Metal substrate that provides mechanical support and electrical connection.
• Power Distribution Area: Built-in power conversion and voltage stabilization circuit with 24 V DC output.
• Communication Interface Area: PROFIBUS DP port, Ethernet port (RJ45), as well as corresponding signal buffering and isolation circuits.
• Connector Arrangement: Reserved slots for installing I/O, communication or functional modules of the CI867 series.
• Protective Cover: IP20 protection class to prevent dust ingress while facilitating heat dissipation.

Typical Application Fields

• Process Automation: Fieldbus networks for continuous production processes in chemical, petroleum, metallurgical industries, etc.
• Machine Tools: High-speed data exchange for CNC machine tools and robot control systems.
• Building and Energy Management: Building automation, power distribution monitoring and energy metering systems.
• Transportation and Infrastructure: Control and monitoring of rail transit and port loading/unloading equipment.
• Industrial Internet: Serves as an edge gateway to connect field devices to enterprise-level MES/SCADA platforms.
