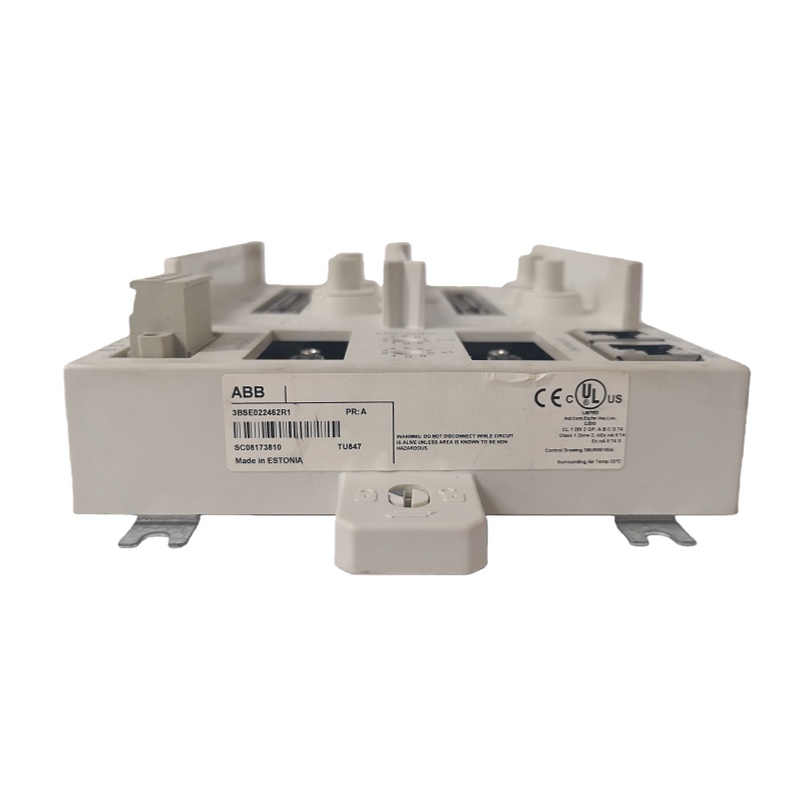

ABB TU847

The ABB TU847 is a passive module termination unit specifically designed for the CI840/CI840A field communication interface, enabling redundant connection of fieldbuses. It undertakes multiple functions in the system, including power supply, Module Bus, PROFIBUS interface, and station address setting, and serves as a standard accessory for platforms such as the 800xA and S800 I/O series.

Key Technical Specifications

• Power Interface: 24 V DC, with current distribution of 5 V 1.5 A and 24 V 1.5 A
• PROFIBUS Interface: DSUB9 (9-pin) connector, with an RJ45 port for service purposes
• Module Bus: Supports fiber optic ports (connected via TB806 and TB842)
• Mechanical Keys: 4 mechanical keys, each with 6 positions, providing a total of 36 combinations to prevent incorrect module insertion
• Wire Specifications: 0.25 – 2.5 mm² (24 – 14 AWG). Recommended wire stripping length: 6 – 7.5 mm; Torque: 0.5 – 0.6 Nm
• Environmental Conditions & Certifications: Operating temperature ranges from 0 to +55 °C; Storage temperature ranges from -40 to +70 °C; IP20 protection rating. Compliant with certifications including CE, EN 61010-1, UL 61010-1, ATEX Zone 2, and cULus Hazardous Location Class 1 Zone 2.

Product Features

1. Redundancy Support: Capable of connecting two sets of CI840/CI840A simultaneously to achieve communication link redundancy.
2. Modular Design: As a passive unit, it only provides wiring and cable management functions, facilitating rapid on-site wiring.
3. Error Prevention Mechanism: Mechanical key combinations prevent module misinsertion, enhancing system reliability.
4. Strong Compatibility: Supports standard PROFIBUS, Module Bus fiber optics, and 24 V power supply, making it compatible with various ABB control platforms.
5. Compliance with Safety Standards: Certified by multiple international safety standards such as CE, ATEX, and UL, suitable for use in hazardous areas.

Structure & Components

• 24 V DC power terminal blocks
• PROFIBUS DSUB9 interface
• Two station address dials (0 – 99) for setting field station numbers
• Module Bus terminals (including fiber optic connectors)
• Four mechanical keys (6 positions each) for module type configuration

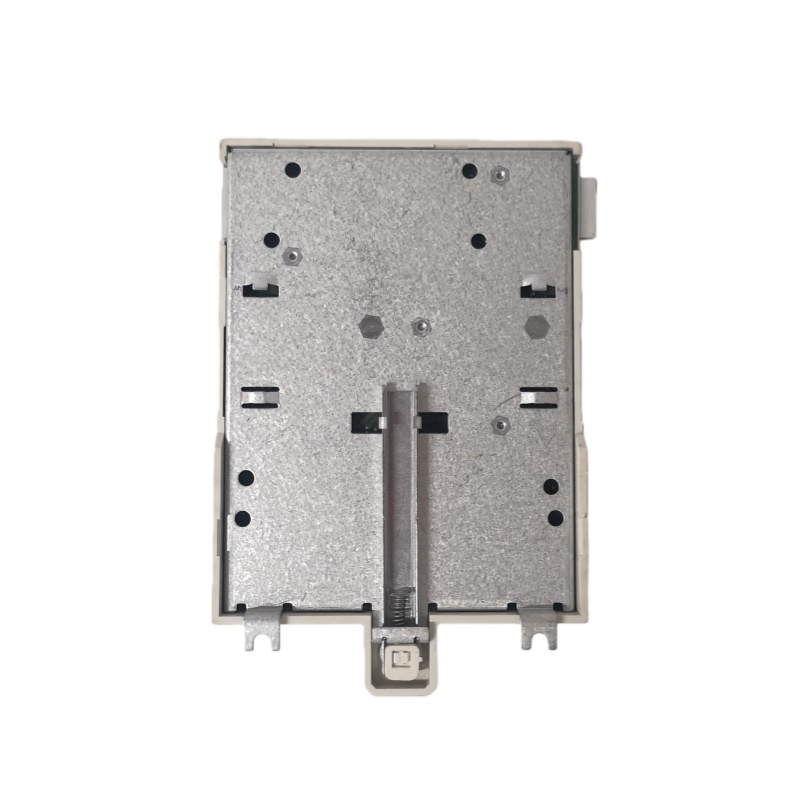

• DIN rail mounting bracket (equipped with locking device)

Typical Application Fields

• Process Automation: Continuous production systems requiring redundant fieldbuses, such as chemical, petroleum, and natural gas industries.
• Discrete Manufacturing: Interconnection between PLCs and fieldbuses in automotive and electronic assembly lines.
• Energy Management: Reliable communication in power stations and distribution automation systems.
• Marine & Offshore Platforms: Suitable for use in hazardous areas compliant with classification society certifications (ABS, BV, DNV-GL).

Installation & Maintenance Guidelines

• Installation Location: Reserve space on the left side to allow unit insertion and removal without power supply; replacement under power is strictly prohibited.
• Wiring Sequence: Connect the power supply first, followed by the Module Bus and PROFIBUS, and finally set the station address dials.
• Mechanical Key Setting: Select the corresponding key combination based on the CI840/CI840A model used to ensure it matches one of the 36 configurations.
• Regular Inspection: Check terminal tightness, wire stripping length, and torque; confirm that mechanical keys are not loose.
• Environmental Requirements: Maintain operating temperature ≤ 55 °C, and avoid exposure to moisture or corrosive gases (IP20 protection rating).
