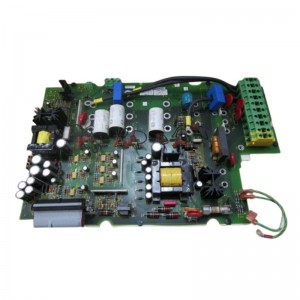

Allen-Bradley 1336-B015-EOE-F Power Distribution Unit
Allen-Bradley 1336-B015-EOE-F
1. Overview
The Allen-Bradley 1336-B015-EOE-F belongs to the Series 1336 terminal block series, a modular connector designed specifically for industrial control systems. This terminal block model is typically used in Modular Distribution Units (MDU) or Control Centers to safely and reliably connect power supplies to load circuits.
_____________________________________________________________________________________________________________
2. Specifications
- Series: 1336 Series
- Mounting Type: Panel Mount
- Module Width: 0.75 inches (19.05 mm)
- Rated Voltage: Usually 240 VAC
- Rated Current: Usually 60 A
- Pole Number: 2 Poles (B015 indicates 2 poles, single-row design)
- Terminal Material: Copper or tinned copper (standard); silver-plated copper may be used for high-load applications
- Cable Specification: Supports 1/0 to 6 AWG cables
_____________________________________________________________________________________________________________
3. Product Features
- Safety and Reliability: Complies with industrial standards to ensure the safety of electrical connections.
- Modular Design: Enables quick replacement and maintenance, reducing downtime.
- High Current-Carrying Capacity: Rated at 60 A, suitable for medium-load circuits.
- Compact Size: 0.75-inch width facilitates layout on panels with limited space.
_____________________________________________________________________________________________________________
4. Structure and Composition
- Conductive Sheet: Usually made of copper, possibly with tin or silver plating, providing low-impedance connections.
- Threaded Components: Used to fix cables, ensuring they are not easily detached due to mechanical tension.
- Insulator: Made of polymer materials, providing electrical insulation protection.
- Clips and Sheaths: Used to fix the position of the terminal block on the panel.
_____________________________________________________________________________________________________________
5. Application Fields
- Industrial Automation: Power supply access for field devices such as PLCs, inverters, and sensors.
- Mechanical Manufacturing: Control cabinets for CNC machine tools, injection molding machines, and packaging machinery.
- Process Control: Instrument wiring in fields such as chemical engineering, petrochemicals, and pharmaceuticals.
- Power Distribution Systems: Branch circuit connections in low-voltage distribution cabinets.
_____________________________________________________________________________________________________________
6. Installation and Maintenance
Installation Recommendations
- Panel Fixing: Ensure the panel hole size matches the terminal block specifications and fix it with screws.
- Cable Stripping: The stripped length of the cable should comply with specifications (usually 1/4″ – 3/8″), ensuring it is neither too long nor too short.
- Torque Requirement: Use a torque wrench to tighten the screws to prevent copper bar deformation due to over-tightening or poor contact due to under-tightening.
Maintenance Recommendations
- Regular Inspection: Focus on checking the tightness of screws and the oxidation of copper terminals.
- Anti-Corrosion and Moisture-Proof: In humid environments, regularly check for corrosion.
- Cleaning: Avoid using cleaners that are prone to generating static electricity or have strong corrosiveness.
————————————————————————————————————-
