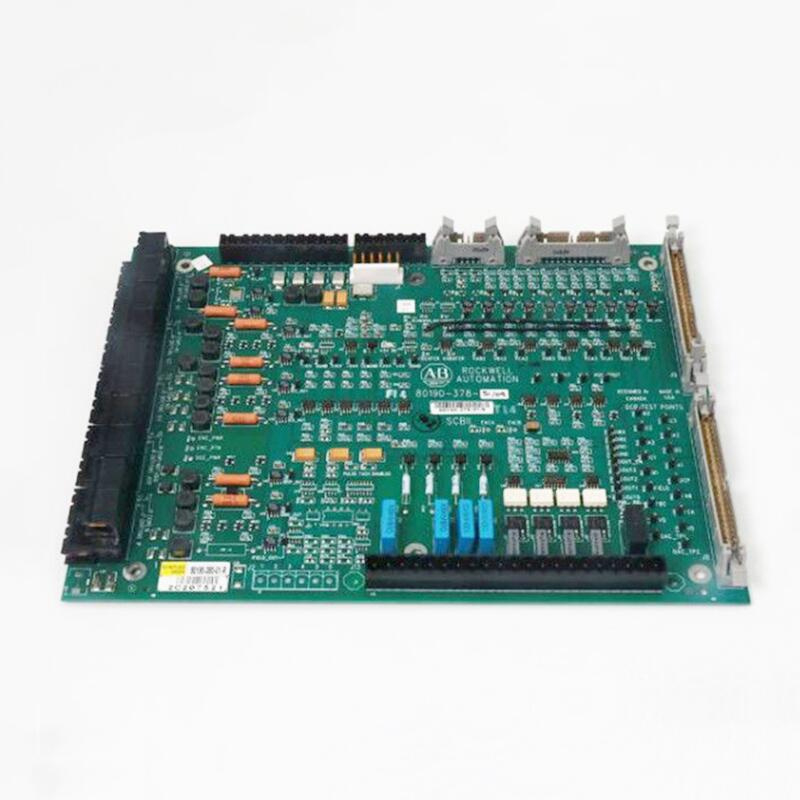

Allen-Bradley 1336-BDB-SP41D Door Drive Board
Allen-Bradley 1336-BDB-SP41D
The Allen‑Bradley 1336‑BDB‑SP41D is a Series B Gate Drive PCB designed for use with 1336 Series AC Drives (ACD) and Medium Voltage Drives (MVD). It provides precise gate drive signals and isolation for IGBT and SCR power modules, ensuring reliable performance in industrial applications.
____________________________________________________________________________________________
1. Product Overview
- Product Name: PCB Gate Drive Board
- Series: Series B (BDB)
- Model: 1336‑BDB‑SP41D
- Function: Delivers isolated gate drive signals for IGBT/SCR modules, ensuring safe and efficient operation of power electronics.
____________________________________________________________________________________________
2. Key Specifications
|
Specification
|
Description
|
|---|---|
|
Operating Voltage
|
575 VAC (compatible with 460V / 550V systems)
|
|
Power Rating
|
200 HP (approximately 150 kW)
|
|
Typical Current
|
0.65 A (varies by power module)
|
|
Output Voltage
|
+15 VDC (for IGBT/SCR triggering)
|
|
Switching Frequency
|
Up to 20 kHz
|
|
Input Power
|
24 VDC (logic power)
|
|
Operating Temperature
|
0°C to 50°C
|
|
Frame Sizes
|
A, B, C, D, E
|
|
Weight
|
Approximately 1.25 kg
|
|
Certifications
|
CE, UL, RoHS compliant
|
3. Product Features
- High Voltage Withstand: Designed for 575VAC systems and capable of handling voltage spikes up to 800VAC.
- Modular Design: Standardized PCB layout for easy replacement and maintenance.
- Industrial‑Grade Reliability: Built with rugged components to withstand harsh industrial environments.
- Comprehensive Protection: Includes overcurrent, overvoltage, and overtemperature protection.
- Standardized Packaging: Compatible with all 1336 Series frame sizes.
____________________________________________________________________________________________
4. Construction & Components
- Input Filter: Reduces electromagnetic interference (EMI) at the input stage.
- Power Distribution Module: Provides +15V and -15V for IGBT/SCR gate driving.
- Logic Interface: Connects with main controllers such as PLCs or drive controllers.
- Protection Circuits: Overcurrent, overvoltage, and short‑circuit protection.
- Thermal Management: Equipped with heatsink or fan mounting options to prevent overheating.
____________________________________________________________________________________________
5. Typical Applications
- Mining Machinery: Control of large motors in crushers, conveyors, and pumps.
- Metal Processing: Main drives for rolling mills and stamping presses.
- Wind Energy: Variable frequency drives for large wind turbines.
- Oil & Gas Industry: Drives for compressors and pumping systems.
- General Industrial: Speed and torque control for heavy‑duty motors.
____________________________________________________________________________________________
6. Installation & Maintenance
6.1 Installation
- Verify compatibility with the target frame size (A/B/C/D/E).
- Insert the PCB into the designated slot and secure with mounting screws.
- Connect the 24VDC power supply and control signals.
- Attach the main circuit connections to the IGBT/SCR power modules.
6.2 Maintenance
- Regularly inspect for corrosion, loose components, or signs of overheating.
- Clean dust from heat sinks to maintain thermal performance.
- In case of failure (e.g., no output or error alarms), check power and signal inputs before replacing the PCB.
————————————————————————————————————-
