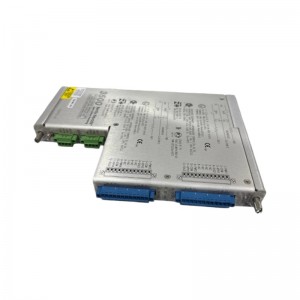

Bently Nevada 135473-01 I/O Module
Bently Nevada 135473-01
1. Overview
The 135473-01 is a critical module within the 3500 Series Condition Monitoring System, designed exclusively to receive and process signals from Keyphasor magnetic sensors (such as 3300 Series probes). It converts analog signals into digital signals, delivering accurate phase and speed data to the monitoring system. This module is widely deployed in heavy industrial sectors including petroleum, chemical engineering, electric power and more.
______________________________________________________________________________________________
2. Core Parameters & Specifications
|
Parameter
|
Typical Value/Range
|
Description
|
|---|---|---|
|
Operating Voltage
|
24V DC (12-48V DC for select models)
|
Low-voltage DC power supply
|
|
Operating Temperature
|
-40℃ to +80℃ (or -30℃ to +65℃)
|
Adaptable to harsh industrial environments
|
|
Ingress Protection Rating
|
IP65 / IP67
|
Dust-tight and waterproof, suitable for extreme conditions
|
|
Output Interface
|
RS-485, relay output
|
Supports digital signal transmission and alarm functions
|
|
Input Signal
|
Eddy current sensor (Keyphasor), velocity/acceleration sensor
|
Compatible with multiple vibration monitoring signals
|
|
Dimensions/Weight
|
Approx. 35×3×10 cm, 0.46-0.8 kg
|
Compact size for easy integration
|
______________________________________________________________________________________________
3. Product Features & Advantages
High-Precision Signal Conversion: It accurately converts weak magnetic pickup signals into digital signals, providing reliable speed and phase angle data for equipment monitoring.
Superior Environmental Adaptability: With IP65/IP67 ingress protection, this module can operate stably for long periods in harsh industrial sites with high temperatures, humidity, dust and heavy vibration.
Easy Integration & Maintenance: Featuring a modular design, it can be directly inserted into the 3500 system rack. It supports the RS-485 communication protocol, enabling convenient on-site wiring and remote monitoring.
Multi-Function Alarm: Built with a buffered output function, it allows users to set alarm and overspeed danger thresholds. With a fast response time of less than 30ms, it effectively protects equipment from damage.
______________________________________________________________________________________________
4. Structure & Components
Power Supply Module: Converts external AC or DC voltage into internal operating voltage (e.g., 24V DC) to power the module.
Signal Processing Module: Receives analog signals from eddy current sensors, and performs amplification, filtering and digital processing on the signals.
Communication Interface: Equipped with a standard RS-485 interface, used to transmit processed digital signals to a host computer or monitoring system.
Housing & Connectors: Constructed with stainless steel or high-strength metal housing, fitted with protective covers and reliable industrial-grade connectors.
______________________________________________________________________________________________
5. Applications
Energy Industry: Bearing and rotor monitoring for gas turbines and steam turbines.
Petrochemical Industry: Speed and vibration monitoring for compressors and pumps to prevent equipment failure.
Power Generation: Vibration analysis and overspeed protection for generator sets.
Papermaking & Manufacturing: Real-time condition monitoring for large-scale mechanical equipment.
______________________________________________________________________________________________
6. Installation & Maintenance
Installation: This module adopts standard rack-mount installation for the 3500 system, with dimensions compliant with rack specifications. After power connection, sensor signal calibration (e.g., AISI 4140 steel calibration) is required, and the module should be wired to the main monitoring station via the RS-485 interface.
Maintenance: The module is maintenance-free by design. Routine upkeep mainly includes regular inspections of electrical connections, environmental cleaning to prevent dust accumulation, and signal calibration. In case of failure, the module can be replaced directly, supporting quick on-site replacement.
————————————————————————————————————-
