Bently Nevada 149744 Data Acquisition System
Bently Nevada 149744
1. Overview
The Bently Nevada 149744 is a compact rack-mounted data acquisition system designed exclusively for industrial machinery condition monitoring. It is typically used in conjunction with System 1 software to capture, analyze, and transmit real-time vibration and process signals from rotating machinery.
Its core advantage lies in offloading extensive signal processing calculations from field PLCs to the internal module, which significantly reduces network bandwidth requirements and optimizes overall system efficiency.
______________________________________________________________________________________________
2. Parameters and Technical Specifications
Power Supply and Power Consumption
Input Voltage: 20-30 Vdc
Maximum Power Consumption: 18W
Protection: Fused with a 1A slow-blow fuse
Input/Output Characteristics
A/D Resolution: 14 bits, with an accuracy of approximately 1%
Input Impedance: 10 kΩ
Waveform Capture: Supports waveform data within a frequency range of 0.01-20 kHz
Sampling Rate: Configurable, with multiple rates available from 5120 Hz to 51200 Hz
Slot Configuration
Total Number of Slots: 5
First Slot: Dedicated for communication cards (supports copper or fiber Ethernet)
Remaining Slots: Support mixed configurations of various input cards, including TIM cards and direct input cards
______________________________________________________________________________________________
3. Product Features
Integrated Signal Processing
The module features powerful built-in real-time processing capabilities, including RMS calculation, filtering, and other advanced functions. It completes signal preprocessing locally, reducing the computational load on external control systems and improving response speed.
Modbus Communication
Equipped with a Modbus digital interface, the system can communicate directly with process control and automation systems without requiring additional hardware or adapters, ensuring seamless system integration.
Safety Certification
Certified for hazardous locations, making it suitable for use in harsh and explosive industrial environments where safety compliance is mandatory.
Flexible Sensor Compatibility
Compatible with a wide range of Bently Nevada sensors, such as models 200350 and 330500. It supports both 2-wire current loop and 3-wire voltage loop inputs, adapting to diverse field wiring requirements.
______________________________________________________________________________________________
4. Structure and Components

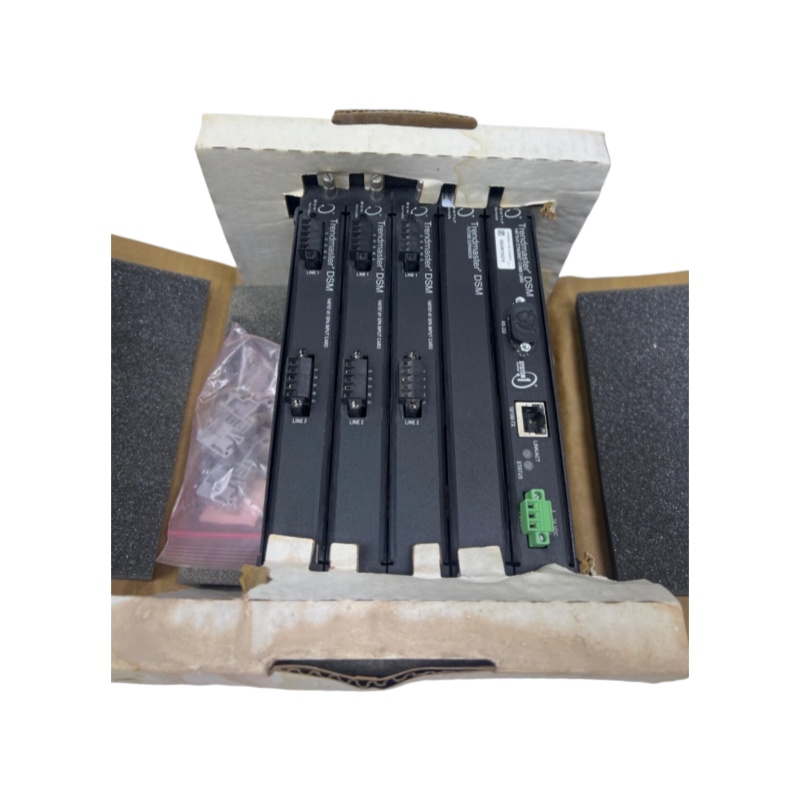

Main Rack (149744)
Houses the power supply module, status indicator lights, and all card slot interfaces, providing a stable and enclosed housing for internal components.
Communication Card (149811-01)
Responsible for establishing Ethernet network connections, enabling data transmission between the data acquisition system and upper-level monitoring software.
Input Cards
TIM Input Card: Used to connect Bently Nevada measurement cables, such as model 162560.
Direct Input Cards: Including model 149811-01 (24V voltage mode) and model 149811-02 (current mode), designed for direct sensor connections.
Accessories
Standard accessories include DIN rail terminal blocks, cable seals, EMI ferrite suppressors, and other installation and protection components to ensure stable and reliable operation.
______________________________________________________________________________________________
5. Applications
Main Applications
The system is widely used for vibration monitoring and fault diagnosis of large-scale rotating machinery, including gas turbines, steam turbines, pumps, compressors, and other critical industrial equipment.
Functional Benefits
By capturing high-speed vibration data and analyzing operating parameters, it helps engineers predict and identify common mechanical failures, including bearing damage, rotor imbalance, resonance, and other abnormal operating conditions.
————————————————————————————————————-
