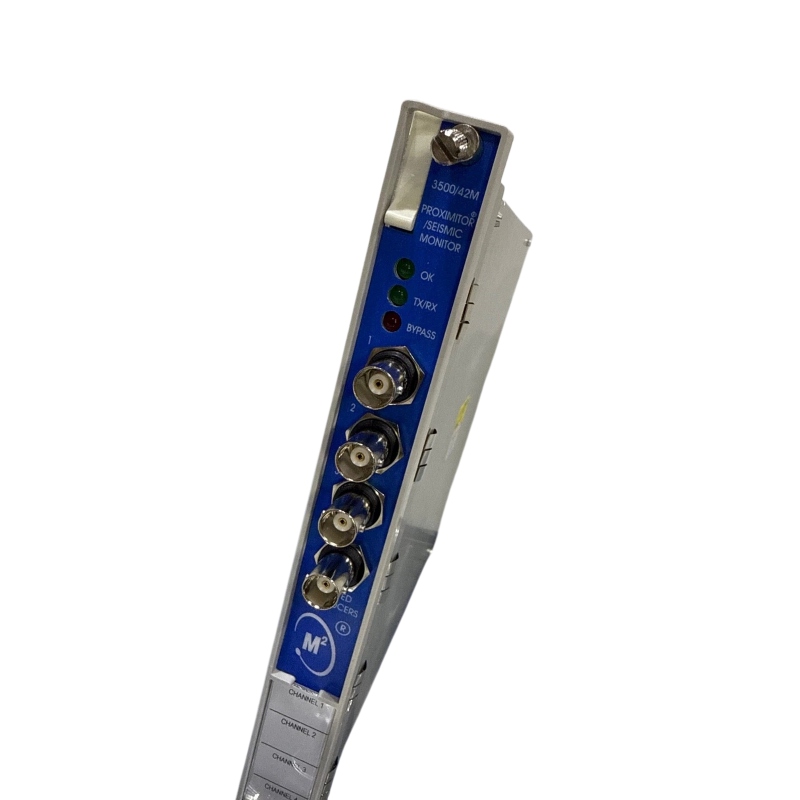

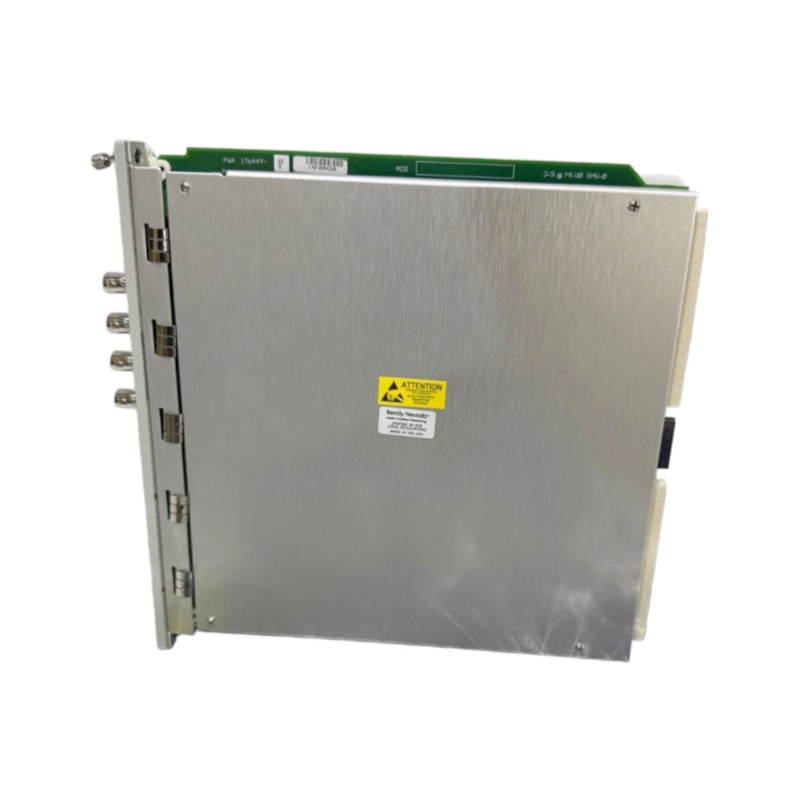

Bently Nevada 3500-42m Sensor Module
Bently Nevada 3500-42m
1. Overview
The Bently Nevada 3500-42M is an advanced sensor module specifically designed for monitoring large rotating machinery (such as steam turbines, generators, compressors, etc.). It belongs to Bently Nevada’s 3500 series (usually used in combination with 3500/42M) and is responsible for collecting signals from proximity sensors (Proximitor) and seismic sensors, then converting these signals into digital data for analysis by upper computers or control systems.
______________________________________________________________________________________________
2. Specifications
|
Specification
|
Description
|
|---|---|
|
Part Number
|
176449-02
|
|
Number of Channels
|
4 channels (each channel can be independently programmed)
|
|
Sensor Type
|
Supports proximity sensors (displacement) and seismic sensors (vibration)
|
|
Input Voltage
|
24V DC (industrial standard)
|
|
Operating Temperature
|
-40°C to +85°C (some documents show up to 70°C)
|
|
Protection Level
|
IP65 (dustproof and waterproof)
|
|
Dimensions/Weight
|
Approx. 100mm x 50mm x 20mm / Approx. 200g (specific dimensions may vary slightly by version)
|
______________________________________________________________________________________________
3. Product Features
- High Precision and Reliability: Adopts Bently Nevada’s leading sensing technology to ensure the accuracy and long-term stability of measured data.
- Modular Design: Uses the standardized rack design of the 3500 series, facilitating integration with other modules (such as displays, data loggers).
- Versatility: Capable of measuring various parameters such as axial displacement, radial displacement, bearing temperature, and impact pulses.
- Redundant Design: Some versions support redundant data transmission to ensure data integrity in harsh industrial environments.
______________________________________________________________________________________________
4. Structure and Composition
- I/O Interface: Used to connect external sensors (such as proximity sensors or seismic sensors).
- Signal Processing Circuit: Converts analog signals into digital signals.
- Communication Interface: Provides RS485 or Ethernet ports for easy communication with PLCs or upper computers.
- Power Interface: 24V DC power input.
______________________________________________________________________________________________
5. Application Fields
- Power Industry: Monitors bearing vibration and axial displacement of steam turbine and generator shafting to prevent major equipment failures.
- Petrochemical Industry: Monitors the vibration status of compressors and centrifugal pumps to predict bearing life.
- Mining and Metallurgy: Monitors transient impacts of blast furnace blowers and rolling mill main drives.
- Aerospace: Monitors the operating status of engines and transmission systems.
______________________________________________________________________________________________
6. Installation and Maintenance
Installation
It is usually installed in the Bently Nevada 3500 series rack. It is necessary to ensure correct power wiring and proper connection with the corresponding sensors. The installation position should be close to the mechanical equipment to be monitored to ensure the accuracy of signal transmission.
Maintenance
Since its working environment is usually harsh, the maintenance focus is on regularly checking the sensor connection status, cleaning dust and oil stains on the protective cover, and inspecting whether the power supply is stable.
————————————————————————————————————-
