GE DS3800HLNE1B1B Controller Board
GE DS3800HLNE1B1B
1. Product Overview
The GE DS3800HLNE1B1B is a network controller board designed by General Electric (GE) for the Mark IV series. It is primarily applied in industrial automation systems, especially the GE Mark IV turbine control system. As a core product of the GE DS3800 series industrial control system product line, this board is dedicated to the monitoring and control of industrial equipment and production processes in industrial scenarios.
The DS3800 series is a mature industrial control system product line independently developed and manufactured by GE, which is widely used in various industrial scenarios that require precise equipment monitoring and process automatic control.
2. Product Specifications
|
Parameter Item
|
Specification
|
Remarks
|
|---|---|---|
|
Part Number
|
DS3800HLNE1B1B
|
-
|
|
Series
|
GE DS3800
|
Compatible with GE Mark IV System
|
|
Dimensions
|
Approx. 55×65mm
|
Refer to DS3800HLNE1B of the same series
|
|
Operating Temperature
|
0-50°C
|
Same series reference; similar models support -40℃ to 85℃
|
|
Weight
|
Approx. 0.15kg
|
Refer to DS3800HLNE1B of the same series; similar models weigh about 1 pound
|
|
Operating Voltage
|
24V DC
|
Refer to similar model DS3800HLNA1
|
Note: Part of the parameters are reference values based on products of the same series or similar models. Please refer to the official GE manual for specific and accurate parameters.
3. Product Features
- High-efficiency Operation Configuration: Equipped with high-performance microprocessors and multiple professional logic devices, which effectively optimize the operating efficiency of the control system and improve overall operational stability.
- Modular Structure Design: Adopts a standardized modular structure, which simplifies the installation and daily maintenance process of the equipment and supports flexible functional expansion according to actual industrial needs.
- Real-time Status Monitoring: The board is equipped with 3 red indicator lights and 1 amber indicator light, which can intuitively and real-time monitor the operating status of the system and quickly feed back equipment abnormal conditions.
- Flexible Configuration Capability: Designed with 16 jumpers and multiple EEPROM slots, supporting free functional configuration, which greatly enhances the adaptability and scalable performance of the system in different industrial scenarios.
- Professional Signal Conversion: Supports accurate conversion between 4-20mA analog signals and digital signals, realizing seamless signal transmission and processing of industrial equipment.
- Superior Operational Reliability: Manufactured with high-quality raw materials and strict industrial production processes, ensuring stable and durable operation in harsh industrial environments.
- Integrated Communication Function: Integrates data acquisition, signal analysis and processing, and automatic control functions to realize efficient data interaction and intelligent control of the system.
4. Structure and Composition
4.1 Main Circuit Board Body

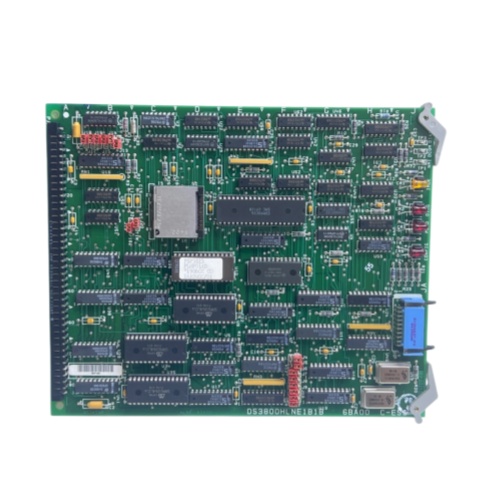

The main surface of the circuit board is densely arranged with complete electronic components including integrated circuits, capacitors, diodes and resistors, forming a complete signal processing and control circuit system.
4.2 Interface and Connection Structure
Four corners of the board are provided with factory pre-drilled mounting holes, two of which are equipped with extraction clips, facilitating rapid positioning, fixing, disassembly and replacement during installation and maintenance. The product is equipped with a dedicated connector block, and some similar models are matched with a 12-pin connector block to meet diverse connection demands.
4.3 Configuration Components
It is equipped with professional jumper switches to support personalized custom setting of system functions. Meanwhile, it retains 16 jumpers and multiple EEPROM slots for flexible function expansion and parameter calibration.
4.4 Reinforced Structure Design
Two board reinforcing parts are installed on the equipment, which effectively reduce the bending and deformation of the circuit board during long-term operation and vibration, and improve the structural stability and service life of the product.
4.5 Status Indication Device
Comes with 3 red status indicator lights and 1 amber status indicator light, which can accurately display the system power-on, operation and fault status in real time.
4.6 Protective Shell
The shell of similar models is made of aluminum alloy or aluminum-magnesium alloy material, which has excellent heat dissipation, anti-corrosion and anti-collision protection performance, adapting to high-intensity industrial operation environments.
5. Application Fields
|
Application Field
|
Application Description
|
|---|---|
|
Turbine Control
|
Applied to GE Mark IV turbine control system, realizing automatic monitoring and control of steam turbines and gas turbines
|
|
Industrial Automation
|
Used in automated control systems for steam and gas turbines to optimize equipment operation efficiency and reduce energy consumption
|
|
Power and Energy
|
Widely used in power generation industry, new energy fields and various industrial process control projects
|
|
Manufacturing Industry
|
Serving automatic production lines of various manufacturing industries to realize intelligent process control
|
|
Chemical Industry
|
Applied to petroleum chemical industry and conventional chemical production process control to ensure safe and stable operation of production
|
|
Infrastructure
|
Suitable for urban infrastructure construction, building automation and other supporting control systems
|
6. Installation and Maintenance
6.1 Installation Requirements
- It is recommended to refer to the official GE original manual and user guide for complete and standardized installation procedures to ensure compliant installation and normal operation of the equipment.
- Adopts standard 19-inch rack-mounted installation mode, which is compatible with most industrial standard cabinet equipment.
- The four-corner drilling and extraction clip design supports rapid positioning, installation and disassembly, which greatly improves on-site installation and replacement efficiency.
6.2 Maintenance and Upkeep
- Quick Maintenance & Diagnosis: The product supports fast fault diagnosis and daily maintenance, with simple operation and low later maintenance cost.
- Warranty Service: Most official suppliers provide a 12-month professional warranty service to guarantee the stable operation of customer equipment.
————————————————————————————————————-
