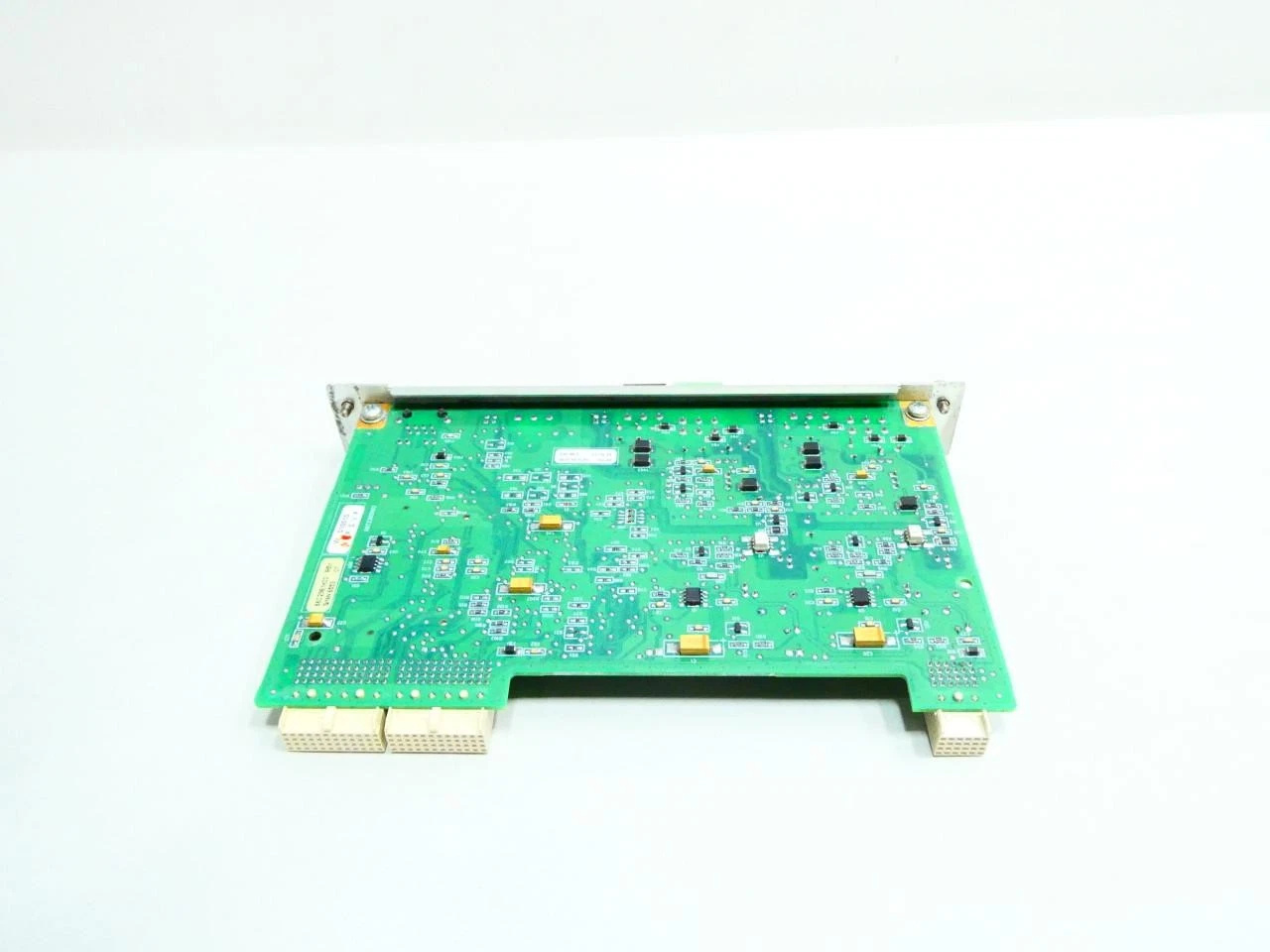

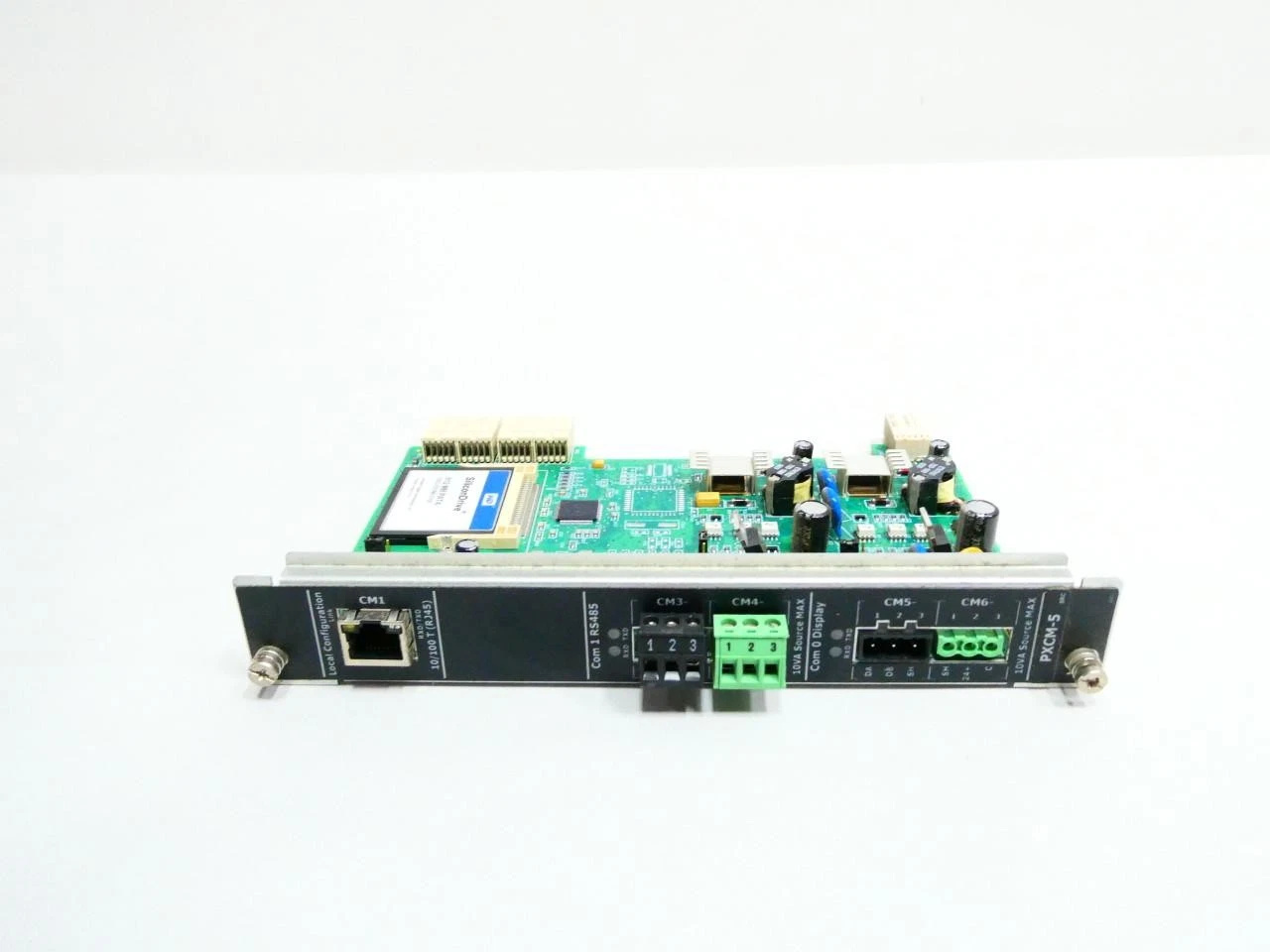

Eaton PXCM-5 Control Module
Eaton PXCM-5
The Eaton PXCM-5 is a modular power control solution designed for industrial automation and electromechanical systems. Integrating power conversion, protection, monitoring, and communication functions, it enables efficient and reliable control of loads such as motors, pumps, and compressors within a compact cabinet-style structure. Targeted at low-to-medium power applications (≤ 5 kW), it is ideal for energy-saving retrofits and intelligent upgrades in industries including packaging, food and beverage, pharmaceuticals, and building facilities.
Key Technical Specifications
| Parameter | Description |
|---|---|
| Rated Power | 0.75 kW – 5 kW (optional) |
| Input Voltage | 3–5 V DC (control side); 24–240 V AC (power side) |
| Output Voltage | 0–24 V DC (adjustable) |
| Output Current | Up to 20 A (optional) |
| Operating Temperature | –20 °C to +60 °C (industrial-grade) |
| Protection Class | IP20 (indoor) / IP54 (dust and water-resistant) |
| Communication Interfaces | Modbus RTU, CANopen, Ethernet/IP (optional) |
| Control Methods | Local pushbuttons/knobs, remote PLC/SCADA, HMI touchscreen |
| Overload Protection | Instantaneous overload: 1.2–1.5 × rated current; Long-term overload: 5 × rated current |
| Efficiency | Up to 96% (adopting high-frequency soft-switching technology) |
| Dimensions | 1U–2U cabinet height (approx. 44 mm–88 mm) |
| Weight | Approx. 0.8–1.5 kg |
Product Features
Modular Design
Featuring a standard 19-inch cabinet size, it adopts a split design of plug-and-play power modules and control modules, facilitating quick on-site replacement and maintenance.
High-Efficiency Soft Switching
Equipped with high-frequency MOSFET/IGBT soft-switching technology, it reduces switching losses and achieves a conversion efficiency of over 96%.
Multiple Protection Functions
It provides comprehensive protection against overcurrent, overvoltage, undervoltage, short circuit, overtemperature, and leakage. Built-in self-diagnostic functions enable real-time fault status reporting.
Flexible Communication
Supporting a variety of industrial protocols (Modbus RTU, CANopen, Ethernet/IP), it can seamlessly integrate with existing PLC, SCADA systems, or cloud platforms to realize remote monitoring and parameter adjustment.
Programmable Control
The built-in microprocessor offers analog outputs including 0–10 V, 4–20 mA, and PWM, meeting the speed regulation needs of different loads. It supports multiple programming methods such as ladder diagrams and structured text.
Compact and Reliable
Constructed with a metal casing and high-temperature, voltage-resistant components, it complies with the IEC 61800-5-1 motor drive safety standard and is suitable for harsh industrial environments.
Structure and Components
- Power Module: Responsible for AC-DC rectification, filtering, and voltage stabilization, and supplies 24 V DC power for the control side.
- Power Module: Consists of core power semiconductors (MOSFET/IGBT) and magnetic components (inductors/capacitors) to realize DC-DC or DC-AC conversion.
- Control Unit: Combines a microprocessor and memory, running firmware to implement closed-loop speed regulation, protection logic, and communication protocol stacks.
- Human-Machine Interface (HMI): Local LCD/LED indicators, pushbuttons, or knobs for quick on-site parameter configuration.
- Communication Ports: RS-485, CAN, and Ethernet RJ45 interfaces (optional), paired with corresponding protocol conversion chips.
- Heat Dissipation System: Aluminum heat sinks plus optional passive cooling fans ensure thermal management during high-power operation.
Typical Application Fields
| Industry | Specific Applications |
|---|---|
| Packaging Machinery | Variable frequency speed regulation, energy consumption monitoring, automated synchronous control |
| Food and Beverage | Soft start and speed regulation of pump stations, mixers, heating/cooling systems |
| Pharmaceuticals | Precision fluid control, safety isolation of equipment in cleanrooms |
| Building Facilities | HVAC fans, pump circulation, energy-saving retrofits |
| Mining and Metallurgy | Soft start and overload protection of high-power motors |
| Renewable Energy | Power regulation and grid connection control of wind turbines and photovoltaic inverters |
————————————————————————————————————-
