GE 145D3580G

Product Introduction

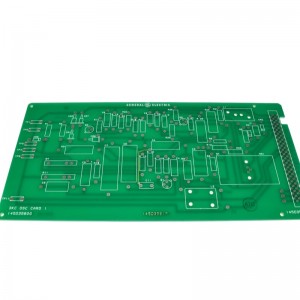

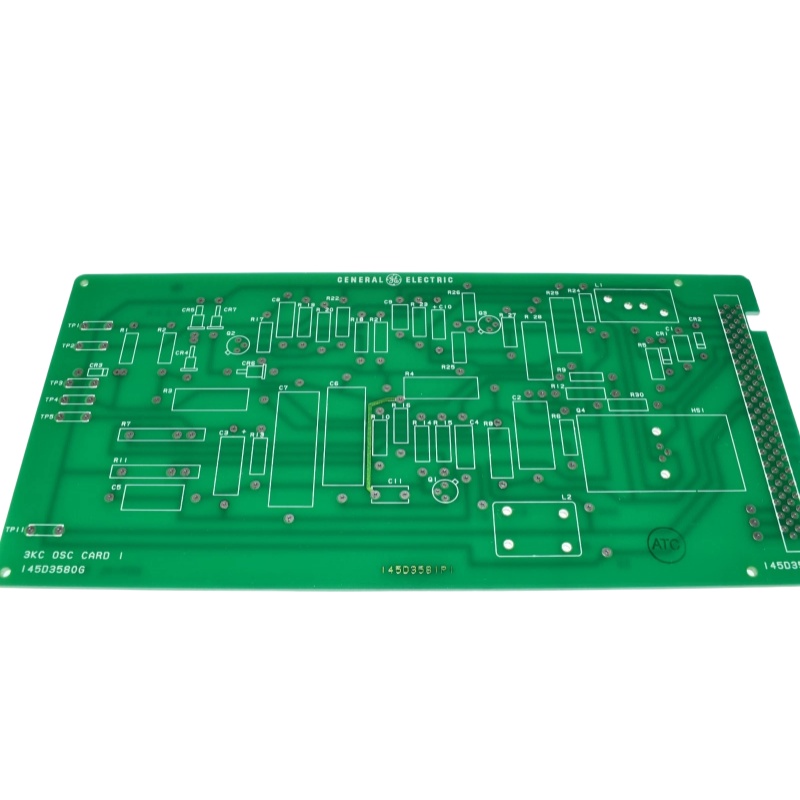

The GE 145D3580G is a specialized 3KC OSC PCB card used as a board-level component in GE industrial equipment. Current industrial parts references list the unit as a 3KC OSC Card / PCB, while another listing specifically describes it as a 3KC OSC Card Converter PCB.

Unlike a general-purpose PLC module, this type of component is designed around a specific function within the host control system. Therefore, correct part-number matching is essential when sourcing a replacement.

Why This Board Matters

Legacy automation systems often remain in service for many years. When an individual circuit board begins to fail, replacing the complete control system may be unnecessary. A compatible GE 145D3580G board can instead provide a practical maintenance option.

The board-level format also makes it suitable for refurbishment and spare-parts programs. Keeping compatible boards available can help maintenance teams respond more quickly to unexpected equipment failures.

Key Specifications

Manufacturer: GE
Model: 145D3580G
Board designation: 3KC OSC Card
Component format: Printed circuit board
Related identification: 145D3582G1
Primary role: Specialized industrial control circuitry
Use: Replacement, maintenance, and equipment refurbishment

Publicly available information does not provide a complete electrical datasheet for this specific part. Consequently, parameters such as operating voltage, current, dimensions, connector pinout, and environmental ratings should be verified against the original GE documentation or the equipment in which the board is installed.

Design and Construction

The 145D3580G uses a PCB-based design that allows its electronic circuitry to be incorporated into a larger industrial control assembly. The board can include electronic components, signal paths, connection interfaces, and supporting circuits associated with its designated function.

Its compact board architecture is advantageous when maintaining existing equipment because the replacement can preserve much of the original system design rather than requiring a complete control-system modification.

Industrial Use

The GE 145D3580G may be relevant to industrial plants that maintain older GE control equipment. Potential applications include machinery control, electrical systems, industrial process equipment, and other installations where specialized GE circuit boards remain in operation.

It is particularly suitable for maintenance teams looking for an exact replacement based on the original part number.

Replacement and Maintenance Tips

First, verify that the existing board is marked 145D3580G. Next, inspect the surrounding wiring, connectors, and mounting arrangement before removing the original unit.

When handling the replacement, use appropriate ESD precautions and avoid touching sensitive circuitry unnecessarily. After installation, inspect all connections and carry out the required functional tests.

For long-term reliability, storing a properly identified spare can be beneficial, especially when the equipment is part of an older or difficult-to-replace control system.
