GE 4136J34-2

Product Overview

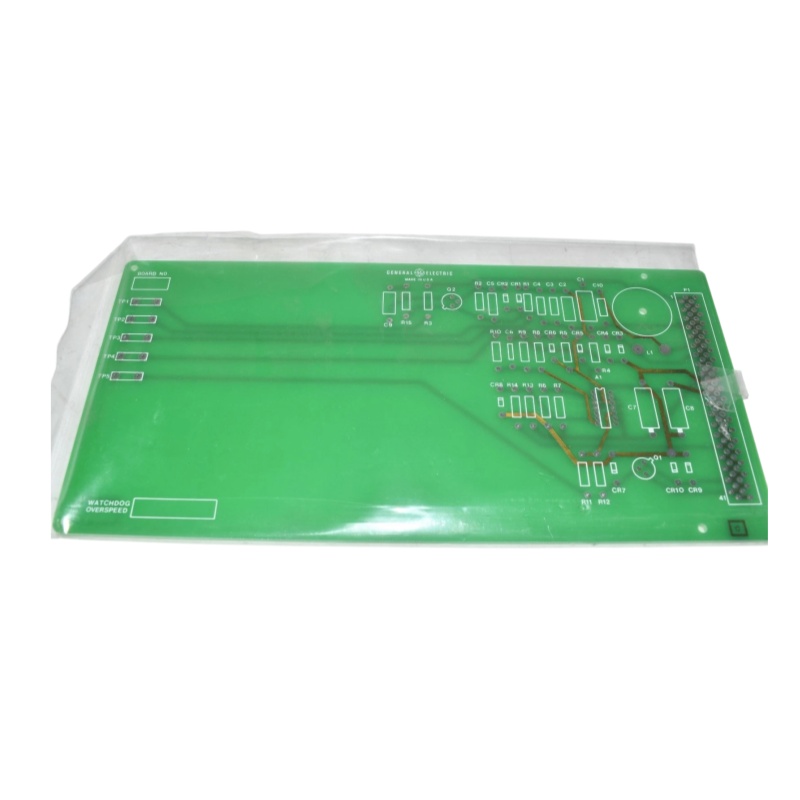

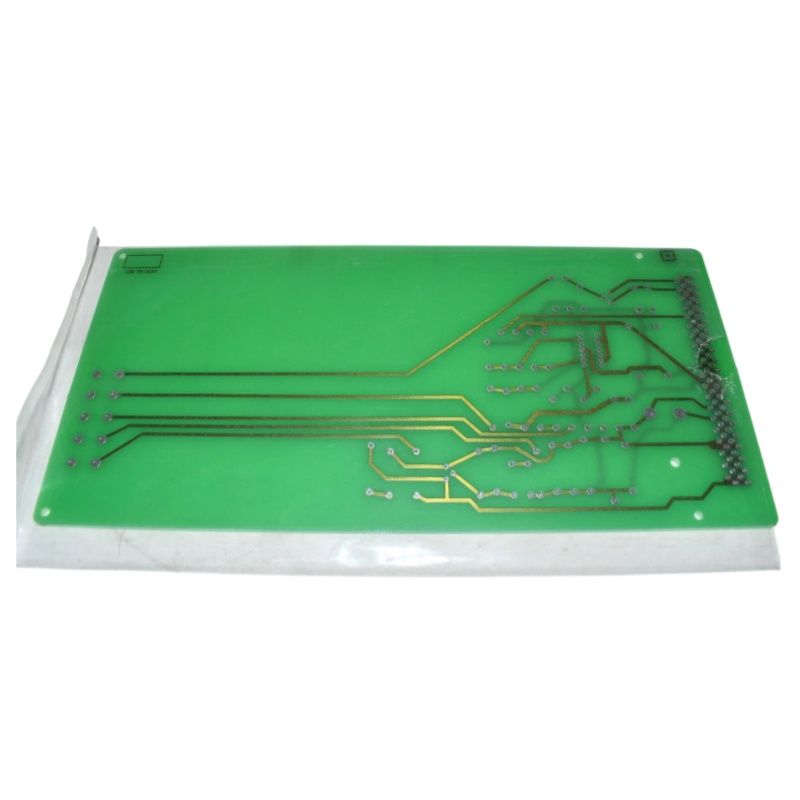

The GE 4136J34-2 is an industrial printed circuit board identified in supplier and component listings as a Watchdog Overspeed PCB. It is designed for use within compatible GE control and monitoring equipment, where watchdog and overspeed-related functions form part of the overall protection architecture.

This board is particularly relevant to maintenance programs for established industrial systems. Its dedicated PCB format allows technicians to replace a specific control assembly without modifying the complete equipment configuration.

Main Parameters

• Manufacturer: General Electric
• Part Number: 4136J34-2
• Product Type: Watchdog Overspeed PCB
• Hardware Category: Industrial printed circuit board
• Functional Area: Overspeed monitoring and watchdog control
• Installation: Integrated into compatible GE equipment
• Service Application: Replacement, repair, and refurbishment

Publicly available sources do not provide a consistent set of detailed electrical ratings for this specific board. Therefore, system documentation should be used to confirm operating voltage, terminal assignments, and other application-specific parameters.

Key Features

• Dedicated watchdog and overspeed-related circuitry.
• Compact industrial PCB construction.
• Designed for integration into established control equipment.
• Suitable for legacy equipment maintenance.
• Useful as a replacement or standby spare.
• Supports board-level troubleshooting and refurbishment.

Structure and Circuit Design

The assembly uses a populated printed circuit board with electronic components and connection interfaces arranged around its designated control function. The board works as part of a larger system rather than as a standalone controller.

Before replacement, technicians should compare the original board’s connectors, mounting arrangement, revision markings, and associated wiring. This is especially important for older systems that may have undergone field modifications.

Application Areas

The board can be used in industrial control environments where overspeed supervision and watchdog functions are required. It is particularly relevant to legacy GE equipment and specialized electrical or rotating-equipment control systems.

Typical maintenance scenarios include:

• Overspeed protection system servicing
• Industrial control cabinet repair
• Legacy GE equipment refurbishment
• Control-board replacement
• Preventive spare-parts management

Installation and Maintenance

Power should be completely isolated before removing or installing the PCB. Follow the safety and lockout procedures applicable to the host equipment.

During installation, verify connector orientation and mounting points. Use ESD protection when handling the board and avoid touching exposed circuit areas unnecessarily.

For maintenance, inspect connectors, soldered areas, and visible components for contamination, corrosion, overheating, or mechanical damage. Store spare boards in anti-static packaging in a clean, dry environment.

Replacement Considerations

Component listings also associate this board with 4136J54-G01, so technicians should verify whether that reference applies to the specific equipment configuration before treating it as an equivalent designation.

A correctly matched spare can help reduce downtime when a dedicated protection or monitoring board requires replacement.
