GE Fanuc IC200UDR010-BD

Product Overview

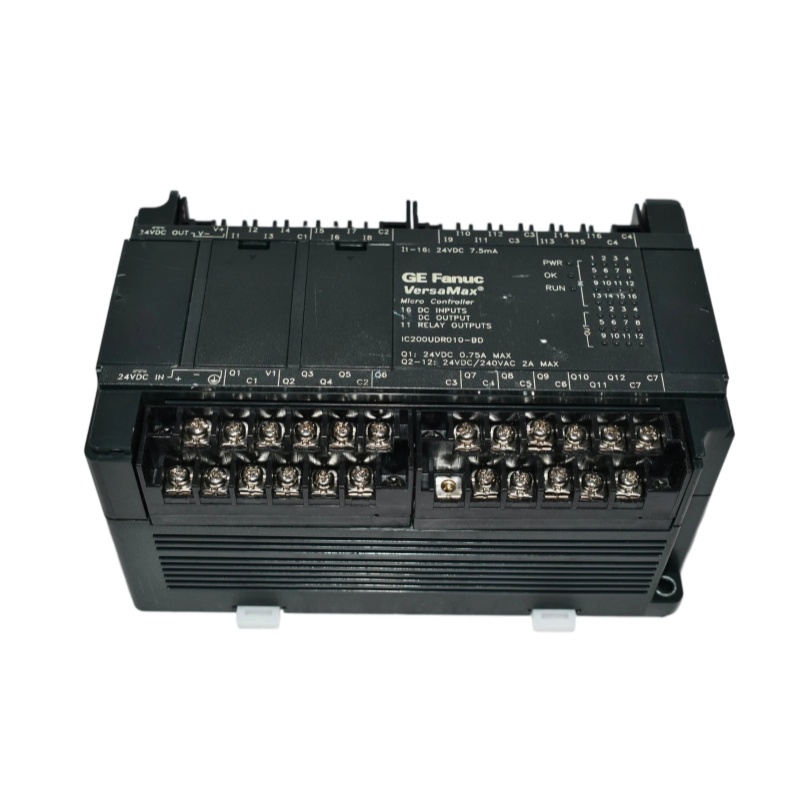

The GE Fanuc IC200UDR010-BD is a VersaMax Micro PLC designed for compact industrial automation and machine-control applications. The IC200UDR010 family provides a 28-point configuration with 16 configurable 24 VDC inputs, one DC output, and 11 normally open relay outputs.

Its integrated I/O arrangement reduces the need for separate interface modules in smaller control systems. The unit can also support additional I/O expansion, making it practical for applications that require a compact controller with room for system growth.

Technical Specifications

The published VersaMax documentation confirms the 28-point I/O configuration and expansion capabilities.

Key Features

• Compact VersaMax Micro PLC architecture.
• Sixteen configurable DC input circuits.
• Eleven normally open relay outputs.
• Dedicated DC output for high-speed control functions.
• Supports high-speed counter applications.
• Provides built-in 24 VDC power for input circuits and user devices.
• Suitable for compact and distributed machine-control applications.

The DC output can be configured as a standard output, high-speed counter output, pulse-train output, or PWM output.

Structure and I/O Design

The controller combines processing, power, and field I/O functions in one compact assembly. The 16 DC inputs can work with positive or negative logic devices, including pushbuttons, limit switches, and proximity sensors.

The relay section provides 11 normally open outputs for switching external loads. The relay outputs are designed for general switching duties and should not be treated as pulse-train or PWM outputs.

Application Areas

This controller can be used in:

• Machine automation
• Packaging equipment
• Conveyor systems
• Material handling
• Production-line control
• Small process-control systems
• Industrial equipment refurbishment

Its integrated I/O arrangement is particularly useful where cabinet space and wiring complexity need to remain under control.

Installation and Maintenance

The controller should be installed by qualified personnel according to the host system’s wiring and safety requirements. Verify the 24 VDC supply before energizing the unit and ensure that connected loads remain within the specified output limits.

During maintenance, inspect terminals, wiring, and field devices for looseness or damage. Keep the controller free from excessive dust, moisture, and vibration. When replacing an existing unit, compare the complete part identification and hardware revision before installation.
