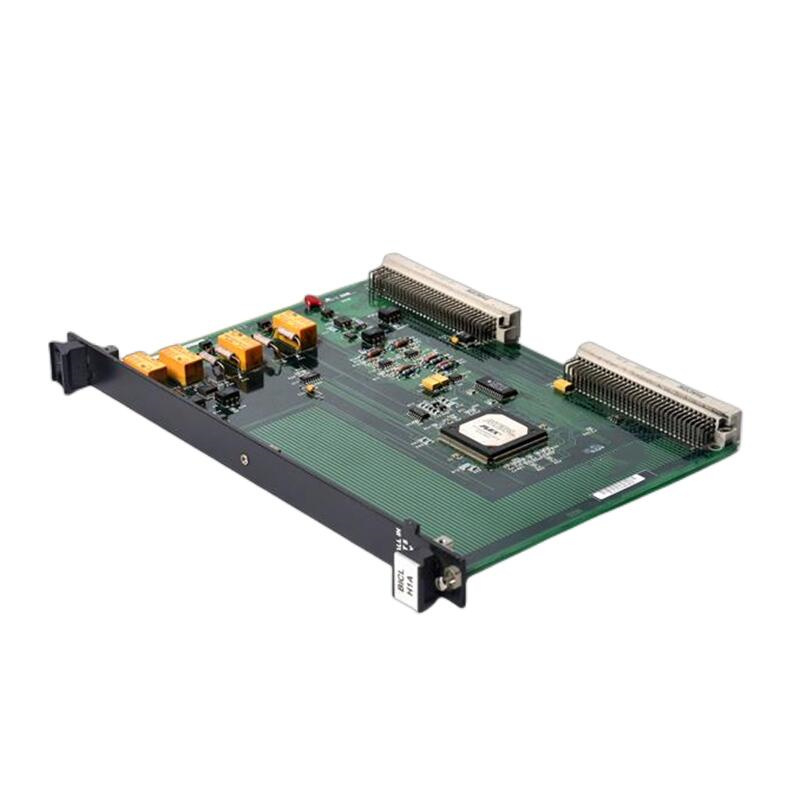

GE 531X207LCSAEG1 Control Board Module
GE 531X207LCSAEG1
GE 531X207LCSAEG1 is a control board module under the Drive Systems series of General Electric (GE), specifically designed for industrial inverters and drive systems. As the core control unit of the inverter, this module is responsible for signal processing, logic operation, and power device driving, and is suitable for motor speed control, torque adjustment, and process automation applications.
Product Parameters
- Product Model: 531X207LCSAEG1
- Manufacturer: General Electric (GE)
- Product Type: Inverter Control Board
- Compatible Drives: GE AF-600, AF-650 series inverters
- Processor: 32-bit DSP or FPGA
- Memory: Flash Memory (for program storage), RAM (for runtime data)
- Control Algorithms: Field-Oriented Control (FVC), V/f Control
- Communication Interfaces: RS-485 (Modbus RTU), optional Ethernet
- I/O Interfaces: Digital Input/Output, Analog Input/Output
- Operating Temperature Range: -10°C to +60°C (14°F to +140°F)
- Protection Class: IP20 (must be installed inside the inverter cabinet)
- Installation Method: Screw-mounted on the inverter main board
- Power Requirement: 24V DC (supplied by the inverter’s internal power supply)
- Power Consumption: ≤15W
- Certification Standards: UL 508, CE, IEC 61800-5-1
Structure and Composition
GE 531X207LCSAEG1 adopts a multi-layer PCB design, with main components including:
Central Processing Unit
A high-performance DSP (such as TI TMS320 series) or FPGA, which executes control algorithms.
Signal Conditioning Circuit
- Analog Input: ADC conversion (16-bit resolution), supporting 0-10V and 4-20mA.
- Digital Input: Optocoupler isolation, supporting 24V DC input.
Communication Interface Circuit
An RS-485 transceiver (isolated design), supporting the Modbus RTU protocol.
Power Device Driving
An IGBT drive circuit that generates PWM signals to control the inverter bridge.
Memory
- Flash Memory (for storing firmware and parameters)
- RAM (for runtime data)
Status Indicator Lights
LEDs for displaying operating status and fault codes.
Key Features and Advantages
1. High-Performance Control Capability
- Field-Oriented Control (FVC) enables high-precision speed (±0.1%) and torque control.
- Auto-Tuning function that adaptively adjusts motor parameters (stator resistance, inductance).
2. Rich I/O and Communication Functions
- 6 digital inputs, 4 digital outputs, 2 analog inputs, and 1 analog output.
- Supports Modbus RTU, and can be expanded to Profibus DP or Ethernet/IP.
3. Intelligent Diagnosis and Protection
- Real-time monitoring of motor current, voltage, and temperature, providing overcurrent, overvoltage, and overheating protection.
- Fault recording function (last 5 faults), facilitating problem troubleshooting.
4. Industrial-Grade Reliability
- Wide operating temperature range of -10°C to +60°C, adapting to the inverter cabinet environment.
- Complies with the IEC 61800-5-1 safety standard (supports STO function).
Installation and Maintenance
Installation Points
- Operate under power-off conditions and take anti-static measures (wear a wristband).
- Ensure connectors are firmly plugged in (e.g., motor encoder interface).
Maintenance Recommendations
- Regularly back up parameters (via Drive Explorer software).
- Check the status of capacitors (replace if bulging or leaking occurs).
————————————————————————————————————-
