Ge 593L194G2 Bridge Rectifier

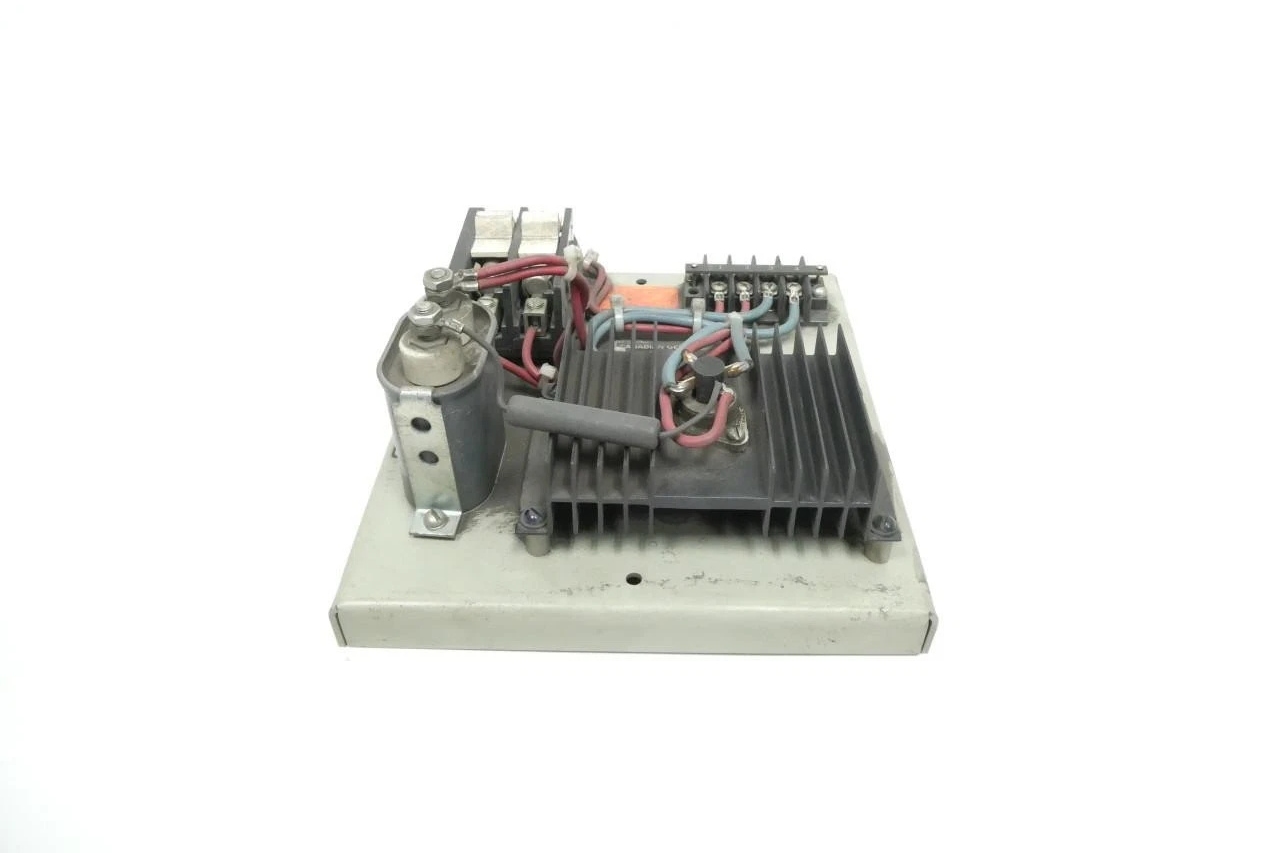

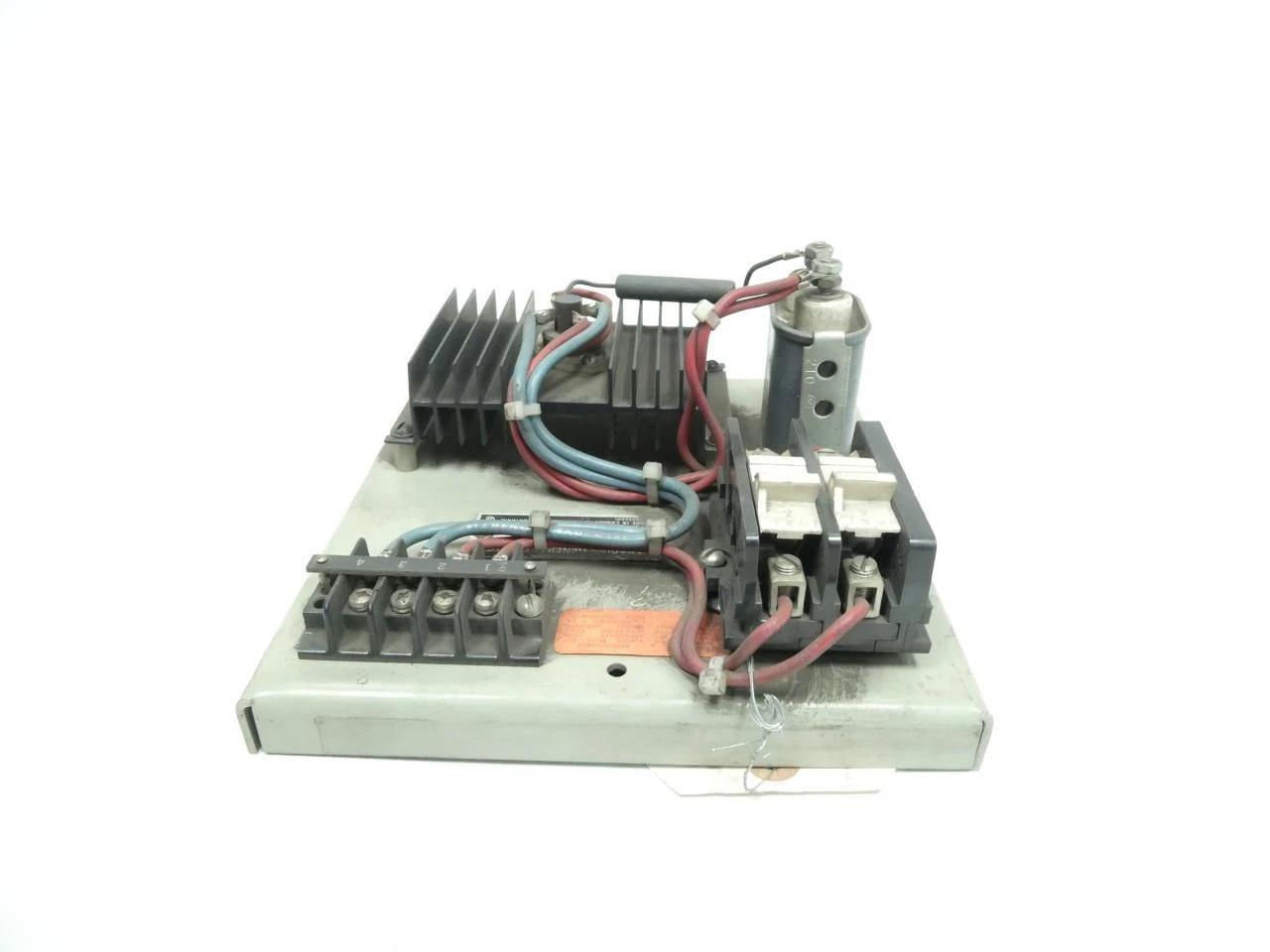

GE 593L194G2 Product Information
1. Overview
The GE 593L194G2 is a single-phase field supply bridge rectifier designed to convert alternating current (AC) to direct current (DC). It is primarily used to meet the power supply requirements of control circuits, protection devices, and relay protection systems within power systems, delivering stable DC power for critical electrical components and ensuring the reliable operation of power grid auxiliary equipment.
______________________________________________________________________________________________
2. Technical Parameters
- Model: GE 593L194G2
- Product Type: Field Supply Bridge Rectifier
- Voltage Rating: 240 V (AC)
- Output Characteristic: Direct Current (DC) Power Supply
- Phase: Single Phase (1ph)
- Rated Power Application: Commonly utilized in low-power control circuits
______________________________________________________________________________________________
3. Product Features
High Reliability: As a power component manufactured by General Electric (GE), this bridge rectifier adopts high-quality silicon materials and advanced manufacturing processes. It is engineered to maintain stable operation even in harsh power grid environments, resisting voltage fluctuations, electrical interference, and extreme working conditions to ensure long-term performance stability.
Compact Structure: Unlike traditional full-wave rectifier circuits that require additional transformers for voltage conversion, the bridge rectifier eliminates the need for extra voltage transformation components. This design results in a smaller physical size and lower installation space requirements, making it ideal for compact electrical cabinets and limited installation scenarios.
Low Maintenance Requirements: Built with solid-state electronic components (primarily diodes), the rectifier features no mechanical wear parts. This grants it an extended service life and significantly reduces maintenance costs, eliminating the need for frequent component replacement or mechanical troubleshooting.
Excellent Ripple Suppression: When paired with filter capacitors (a standard supporting configuration), it effectively suppresses output voltage ripple, delivering smooth and stable DC power. This makes it highly suitable for control circuits with specific requirements for power quality, ensuring the normal operation of precision electrical equipment.
______________________________________________________________________________________________
4. Structure and Components
- Four Diodes (or Diode Modules): Serving as the core of the bridge circuit, these components are responsible for rectifying the positive and negative half-waves of the input AC current into unidirectional DC current, completing the core AC-to-DC conversion function.
- Heat Dissipation Device: Heat is generated during the rectification process, so the product is typically equipped with heat sinks or cooling fans (specific configurations vary based on power rating) to dissipate heat promptly and prevent overheating-related performance degradation or component damage.
- Connection Terminals: Equipped with dedicated terminals for AC power input (grid connection) and DC power output (load power supply), enabling standardized, secure wiring and stable electrical connection with supporting equipment and loads.
______________________________________________________________________________________________
5. Application Fields
- Power System Automation: Acts as a dedicated power supply for substation relay protection devices, guaranteeing the normal operation of key equipment such as relays and monitoring instruments, and supporting the stable operation of power grid protection systems.
- Industrial Control Systems: Provides stable DC power for control terminals including programmable logic controllers (PLCs), human-machine interface (HMI) touch screens, and industrial computers, supporting the efficient operation of industrial automation control links.
- Communication and Monitoring Equipment: Delivers reliable power supply for the control modules of supervisory control and data acquisition (SCADA) systems, ensuring uninterrupted data transmission and equipment monitoring.
- Power Facilities: Functions as a field supply bridge rectifier in power station distributed control and monitoring systems, as well as pump station remote monitoring systems, meeting the on-site DC power supply demands of various power facilities.
______________________________________________________________________________________________
6. Installation and Maintenance
6.1 Installation Environment
- Ventilation and Heat Dissipation: The installation site must be away from strong heat sources to ensure adequate surrounding air circulation, preventing overheating caused by poor heat dissipation and extending the product’s service life.
- Protection Grade: It is generally installed in distribution boxes or cabinets with a specified ingress protection (IP) rating to block dust, moisture, and other contaminants, avoiding component corrosion or short circuits caused by environmental impurities.
6.2 Wiring Requirements
- Polarity Check: Although the bridge rectifier itself is non-polar for AC input, its DC output terminals are clearly marked with positive (+) and negative (-) poles. Wiring must strictly follow the polarity markings to prevent reverse connection, which may cause load damage or equipment failure.
- Cable Specification: Select cables with an appropriate cross-sectional area based on the actual operating current to avoid cable overheating, insulation aging, or potential safety hazards caused by excessive current load.
6.3 Routine Maintenance
- Regular Inspections: Conduct periodic checks on the rectifier’s operating status, including inspections for abnormal noise, excessive surface temperature, cable aging, or loose connections, and address any anomalies promptly.
- Dust Cleaning: Regularly remove dust and debris from heat sinks and component surfaces to maintain optimal heat dissipation efficiency and prevent heat accumulation from affecting product performance.
- Ripple Voltage Monitoring: For high-precision equipment such as precision instruments, monitor the DC output ripple voltage regularly to ensure it remains within the normal operating range, meeting the power quality requirements of precision loads.
————————————————————————————————————-
