GE 817D628-1

Product Overview

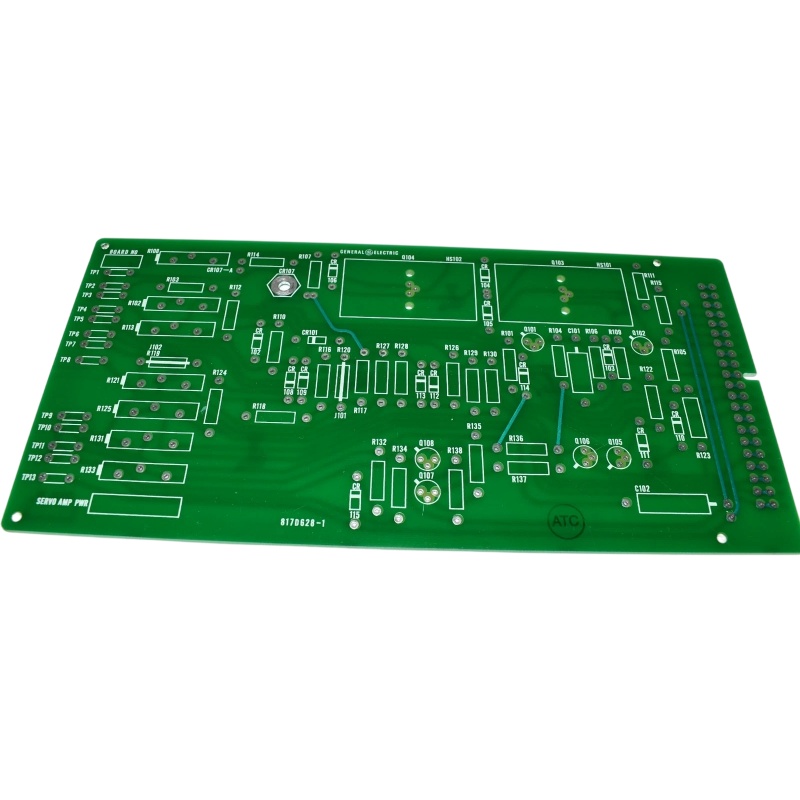

The GE 817D628-1 is an industrial printed circuit board associated with servo amplifier power functions. Product listings describe it as a Servo Amp PWR PCB / Power Board, making it a useful replacement component for compatible GE industrial equipment.

Designed for board-level integration, this component can be used during equipment repair, refurbishment, or planned maintenance. It is especially relevant when an existing control assembly requires a matching replacement board rather than a complete system replacement.

Key Specifications

The exact electrical ratings and system compatibility should be confirmed against the original equipment documentation before installation. Available public listings do not provide a complete manufacturer datasheet for this specific board.

Design & Functional Role

The 817D628-1 uses a PCB-based construction intended for integration within an industrial electronic assembly. As a power-related board, it forms part of the electrical architecture supporting the corresponding servo amplifier system.

Its board-level format makes it suitable for maintenance programs where individual electronic assemblies are replaced instead of removing an entire control cabinet or machine subsystem.

Main Advantages

• GE industrial power board design.
• Identified for servo amplifier power applications.
• Suitable for replacement and refurbishment projects.
• Multiple part-number references assist with sourcing.
• Useful for maintaining legacy industrial equipment.
• Compact board-level construction simplifies replacement within compatible assemblies.

Typical Applications

The GE 817D628-1 can be considered for compatible industrial servo and control equipment. Potential maintenance applications include:

• Servo amplifier maintenance
• Industrial motion-control equipment
• Factory automation systems
• Control cabinet refurbishment
• Legacy equipment repair
• Spare PCB inventory
• Scheduled electrical maintenance

The actual application should always be verified by matching the complete board number and the host equipment configuration.

Installation and Maintenance

Disconnect all relevant power sources before removing the existing PCB. Follow the equipment manufacturer’s safety procedures and use appropriate ESD protection when handling the board.

Before installation, compare the replacement board with the original. Check the part number, connectors, mounting points, visible components, and revision markings. Do not force a board into a connector or mounting position if the mechanical configuration does not match.

For storage, keep the PCB in antistatic packaging and protect it from moisture, dust, and mechanical shock. After installation, inspect all connections before powering the system and perform the applicable equipment-level functional checks.
