GE DS200DCFBG2BNC MRP445970

Parameters

• Input Voltage
  • Standard input: 38–115 VAC (powered by control power transformer).
  • Special version (such as MRP433745): 24V DC.
• Output Characteristics
  • Control-level power output: Meets system drive and excitation requirements.
  • Chassis fan power supply: 115V AC.
• Operating Environment
  • Temperature range: -20°C to +70°C (standard version), -40°C to 85°C (special version).
  • Humidity: 5%–95% non-condensing.
• Physical Specifications
  • Dimensions: 12.5 x 3.5 x 4 inches (standard version), 3.5 x 2.5 x 0.75 inches (special version).
  • Weight: 1.5 kg (standard version), 0.45 kg (special version).
• Certifications and Protection
  • Certifications: CE, UL listed.
  • Protection rating: IP20 (higher protection enclosures optional).

Product Features

• Multifunctional Integration
  • Integrates AC/DC monitoring, control-level power supply, motor excitation, and drive circuits to reduce system complexity.
  • Supports a wide input voltage range (38–115 VAC) to adapt to different industrial environments.
• High Reliability and Diagnostics
  • Built-in 3 protective fuses and 5 test points to ensure overcurrent protection and fault troubleshooting.
  • LED and neon indicators monitor system status in real-time.
• Flexible Configuration
  • Provides 12 jumpers and 7 DIP switches to support customized settings.
  • Seamless compatibility with Mark V series (such as AC2000, DC2000).
• Industrial-grade Durability
  • Adopts industrial-grade components (such as transformers, relays, resistor network arrays) with high temperature resistance and vibration resistance.

Structure and Composition

• Connectors and Interfaces
  • Input/output: 18 plug connectors and 9 pin connectors, covering key ports such as V1–V3 and P1A.
  • Signal transmission: Supports high-speed communication protocols (such as EtherNet/IP, Modbus TCP).

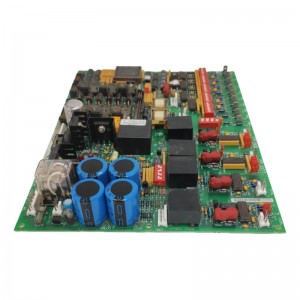

• Core Components
  • 7 transformers, oscillation chips, relays, 50+ resistor network arrays, heat sinks, and integrated circuits.
  • Protection mechanisms: 3 fuses, 5 test points, 12 jumpers, and 7 DIP switches.
• Modular Design
  • Works in conjunction with other modules in the Mark V series (such as DS200CPUF001, EX2000 series).

Application Fields

• Energy Industry
  • Gas turbine and steam turbine control systems (e.g., power plants, oil and gas industry).
  • Wind turbine drive and protection systems.
• Industrial Manufacturing
  • Circulating pump control, flow monitoring, and automated production lines.
  • High-precision process scenarios such as iron and steel metallurgy and water treatment.
• Other Fields
  • Suitable for industrial automation systems requiring stable power supply and real-time control.

Installation and Maintenance

• Installation Steps
  • Power-off operation: Strictly follow the “lockout-tagout” procedure to avoid accidental power-on.
  • Electrostatic protection: Wear anti-static wristbands and gloves, and operate on an anti-static workbench.
  • Environmental inspection: Ensure the installation area is clean, well-ventilated, and free from dust and electromagnetic interference.
• Maintenance Recommendations
  • Regular inspection:
    • Check the status of fuses and the tightness of connection points.
    • Clean the board and heat sink to prevent dust accumulation.
  • Troubleshooting:
    • Quickly locate abnormalities through LED/neon indicators.
    • Use 5 test points to monitor key voltages.
