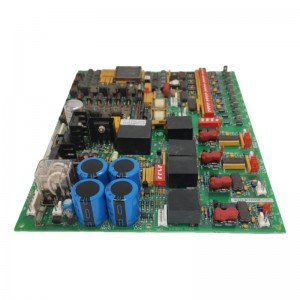

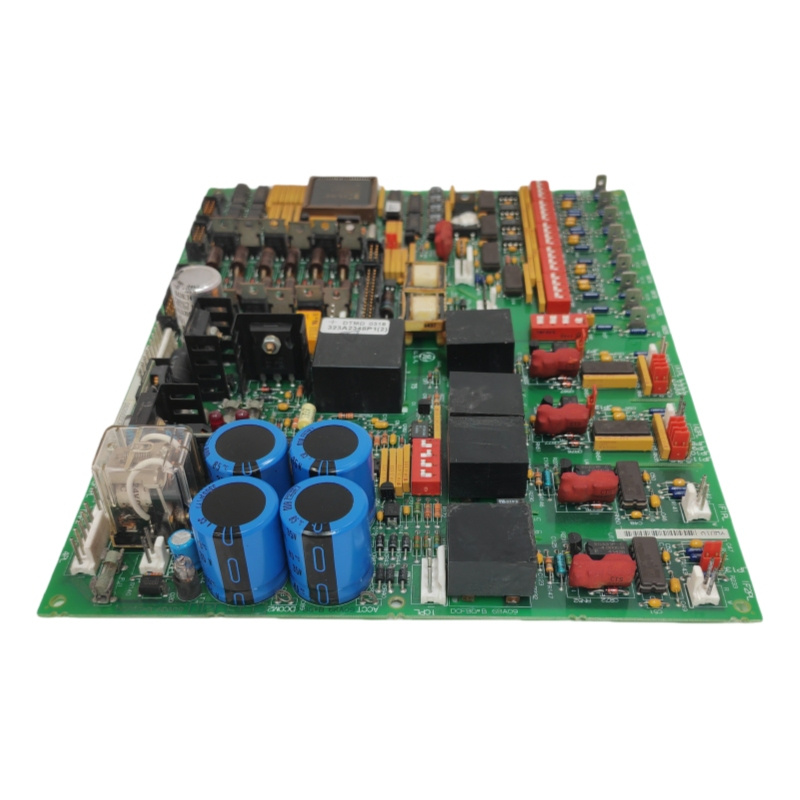

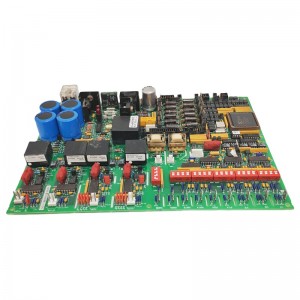

GE DS200DCFBG2BNC MRP569662

Overview

The GE DS200DCFBG2BNC is a key component in the GE Speedtronic system, designed for precise control and protection of large rotating machinery such as gas turbines, steam turbines, and wind turbines. It not only provides a stable DC control power supply but also integrates motor excitation circuits and drive circuits, enabling direct participation in the core control functions of the drive. The module is designed in strict accordance with GE Speedtronic control system technical standards to ensure compatibility and collaborative operation with the entire control architecture.

Parameters

• Model: DS200DCFBG2BNC
• Brand: GE
• Origin: USA
• Input Voltage: 24VDC
• Output Frequency: 0 to 500 kHz (depending on input voltage)
• Communication Input Range: 38 to 115 VAC
• Operating Temperature: -20℃ to 70℃
• Storage Temperature: -40℃ to 85℃
• Humidity: 5% to 95% RH (non-condensing)
• Protection Class: IP20
• Dimensions: 100mm × 80mm × 30mm
• Weight: Approximately 200g
• Installation Method: DIN rail mounting
• Communication Interface: Supports multiple industrial Ethernet protocols

Product Features

• High Precision and Stability: Equipped with 16-bit high-resolution ADC and DAC to ensure accuracy in signal acquisition and output; fast response time (≤1ms) to meet high-speed control requirements.
• Wide Temperature Operating Range: Adaptable to various industrial environments, including extreme temperature conditions.
• Flexible Communication: Supports multiple industrial Ethernet protocols, facilitating system integration and expansion.
• High Reliability: Designed for harsh industrial environments, with overvoltage, overcurrent, and short-circuit protection functions.
• Integrated Design: Integrates AC/DC monitoring circuits, control-level power circuits, motor excitation power circuits, and drive circuits to provide comprehensive system status monitoring data.
• Diagnostic Functions: Equipped with 2 LED indicators and 1 neon lamp for intuitive display of module status and fault information.

Structure and Composition

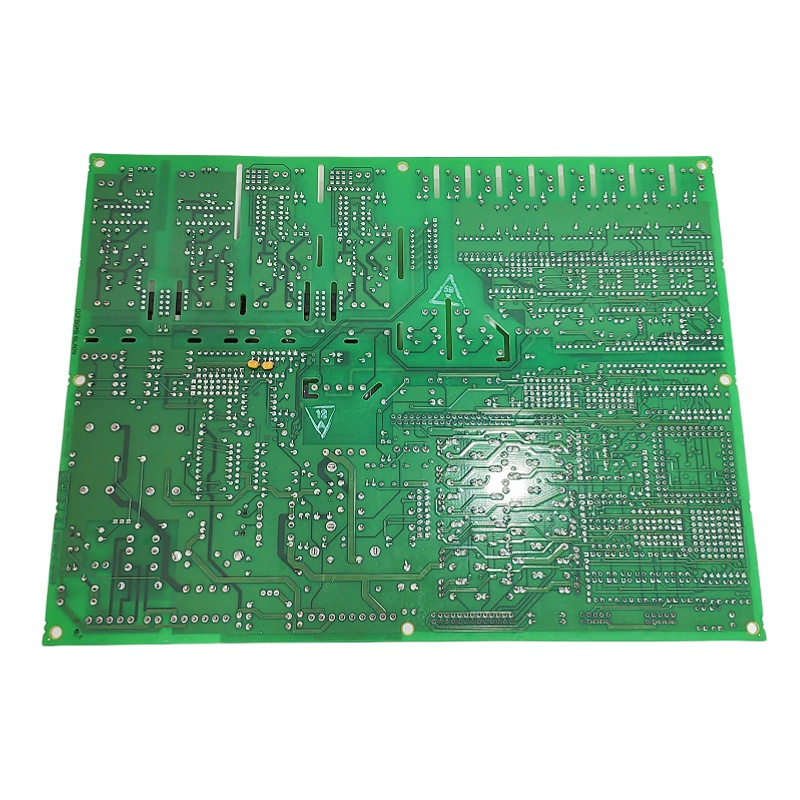

• Circuit Board Material: Uses a standard coated PCB with good resistance to environmental factors.
• Component Composition: Includes 7 transformers, oscillation chips, relays, over 50 resistor network arrays, heat sinks, and various integrated circuits, capacitors, and resistors.
• Connectors: Transmits and receives input and output signals through 18 plug connectors and 9 pin connectors.
• Configuration Options: Provides 12 jumpers and 7 DIP switches, allowing flexible configuration according to specific application requirements.
• Test Points: Features 5 test points for convenient voltage detection and fault troubleshooting.

Application Fields

• Industrial Control: Widely used in gas turbine management systems, circulating water pump control systems, etc.
• Power and Energy Industry: Applied in gas turbine monitoring, energy production optimization, etc.
• Automation and Control Systems: Suitable for programmable logic controller (PLC) systems, data acquisition and processing systems, etc.
• Environmental and Safety Monitoring: Used in temperature monitoring, fault detection, and alarm systems, etc.

Installation and Maintenance

• Installation Preparation: Before installation, carefully read the official installation manuals, circuit diagrams, and safety operating procedures for GE Mark V series drives and exciters, especially measures related to electrical equipment and electrostatic protection. Ensure the power supply of related equipment is completely disconnected and strictly follow the “Lockout/Tagout” (LOTO) procedure to prevent accidental energization.
• Electrostatic Protection: Since the DS200DCFBG2BNC contains precision electronic components that are extremely sensitive to static electricity, it is essential to wear well-grounded anti-static wristbands and gloves during operation and work on an anti-static workbench to avoid damage from electrostatic discharge.
• Environmental Check: Inspect the environmental conditions of the installation location, including temperature and humidity, to ensure they meet the product’s operating requirements.
• Routine Maintenance: Regularly check the status of the module’s connectors and indicators to ensure normal operation. If abnormalities are found, timely troubleshooting and maintenance should be performed.

————————————————————————————————————-
