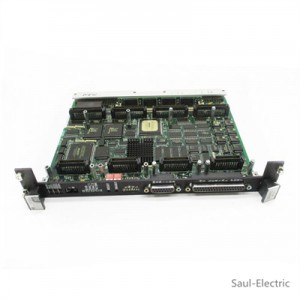

The Digital Signal Processor Control Board DS200DSPCH1A is a high-performance processor board that can provide computational communications and capacities. This device can be used as a master or slave device but can provide its own memory and local high-speed I/O direct interfaces.
Board Part Number: DS200DSPCH1A
Product Weight: 3 lbs
Warranty: 3 Year Warranty
Revisions: DS200DSPCH1ACA, DS200DSPCH1ADA, DS200DSPCH1AEA

The Digital Signal Processor Control Board number DS200DSPCH1A is primarily used to provide communications bandwidth and computational capacity, these features are used for directly controlling high-powered converter applications. The following applications are directly controlled applications, wind turbines, dynamometers, multi-bridge power converters, uninterruptible power sources (UPS), and active filters. This model provides its own memory program as well as expandable high-speed input/output for direct interfaces without using the datapath from the VME.

The DS200DSPCH1A board has a serial communication feature that provides asynchronous communication through a duplicate channel UART (universal asynchronous receiver/transmitter). Note that the DSPC model has two pushbutton switches on the front faceplate, the SW1 switch is used for a hard reset of the DSPC model, while the SW2 is used as a serial boot switch for the DSPC. When needing to use the reset pushbutton switches a pen/pencil will need to be used to press the switch.
