GE DS200SLCCG1A Local Area Network Communication Card
GE DS200SLCCG1A

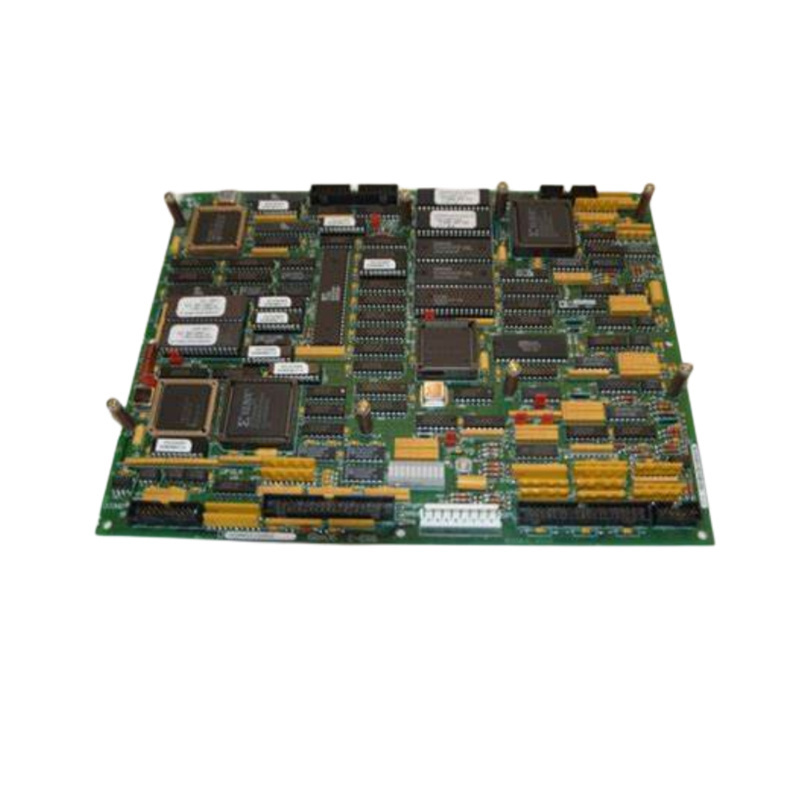

GE DS200SLCCG1A is a LAN Communication Card designed by General Electric (GE) for the Mark V series steam turbine control system (PACSystems RX3i). As a specific model in the Mark V series LAN Communication Card (SLCC), it is mainly used for communication between drive and excitation cabinets.
______________________________________________________________________________________________
Core Parameters & Technical Specifications
|
Parameter
|
Description
|
|---|---|
|
Main Function
|
As a communication card for DLAN (Data LAN) and ARCNET networks, it is responsible for connecting the local PLC controller with on-site drives/exciters, realizing high-speed data transmission and issuance of control commands.
|
|
Communication Protocol
|
Supports two industrial protocols: DLAN and ARCNET, compatible with GE’s traditional Mark V network standards.
|
|
Hardware Structure
|
Includes dual-port RAM (for data caching) and two replaceable EPROM cards (for storing LAN Control Processor programs). In addition, it integrates a LAN Control Processor (LCP).
|
|
Supply Voltage
|
24V DC
|
|
Operating Temperature
|
-40℃ to +70℃
|
|
Physical Dimensions
|
270mm × 130mm × 70mm
|
|
Weight
|
1.5 kg (approximately 1.5 pounds)
|
|
Connectors
|
- 2PL: Power connector – 3PL: Input connector – 10PL: LAN I/O connector – ARCPL: Network signal connector – KPPL: Keyboard connector (for connecting the programmer module keyboard)
|
______________________________________________________________________________________________
Product Features
- Dual Network Support: Simultaneously supports DLAN (proprietary protocol) and ARCNET (early industrial network standard), with strong compatibility.
- Modular Design: Equipped with replaceable EPROM cards, facilitating on-site upgrade or maintenance of control programs.
- High Reliability: Suitable for harsh industrial environments such as power generation and oil & gas, with excellent vibration and shock resistance.
______________________________________________________________________________________________
Structure & Composition
- Core Processing Unit: LAN Control Processor (LCP), responsible for protocol stack parsing and command forwarding.
- Memory: Dual-port RAM (high-speed cache) + two EPROM cards (program storage).
- Connectors: Five dedicated connectors (2PL, 3PL, 10PL, ARCPL, KPPL) to realize the access of power, signals and keyboard.
- Bracket & Interface: It needs to be inserted into the SDCC bracket during installation, and connected to the programmer module through KPPL.
______________________________________________________________________________________________
Typical Application Fields
- Power Plants: Connects generator set drives and exciters to achieve precise control of steam turbines.
- Oil & Gas: Used in oilfield pumping units or compressor drive systems.
- Other Heavy Industries: Equipment requiring centralized control, such as large water pumps and papermaking machinery.
______________________________________________________________________________________________
Installation & Maintenance Guidelines
Installation
- Confirm insertion into the bracket (support) on the SDCC board.
- Properly connect interfaces such as 2PL (power), 3PL (input) and 10PL (LAN I/O).
- Use KPPL to connect the programmer keyboard for parameter setting.
Maintenance
- Jumper Settings: The board may be equipped with hardware jumpers (Berg type or WJ/JP type) for setting isolated and non-isolated circuits, which must be configured in accordance with the manual (GEI-100162).
- Program Update: If the control program needs to be replaced, replace the EPROM card or use a programmer to download a new program through the KPPL interface.
- Environment Inspection: Regularly check the contact status of the connectors, ensure that the operating temperature (-40℃ to +70℃) does not exceed the range, so as to prevent communication failures caused by overheating or overcooling of the environment.
————————————————————————————————————-
