GE DS200TBQCG1A Analog I/O Board
GE DS200RTBAG2A
Product Overview

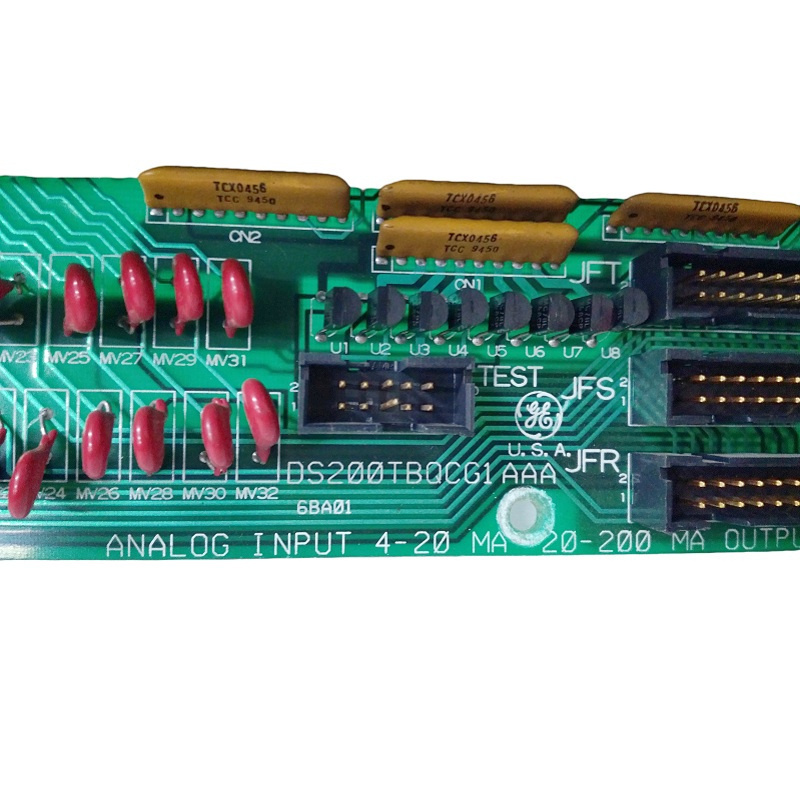

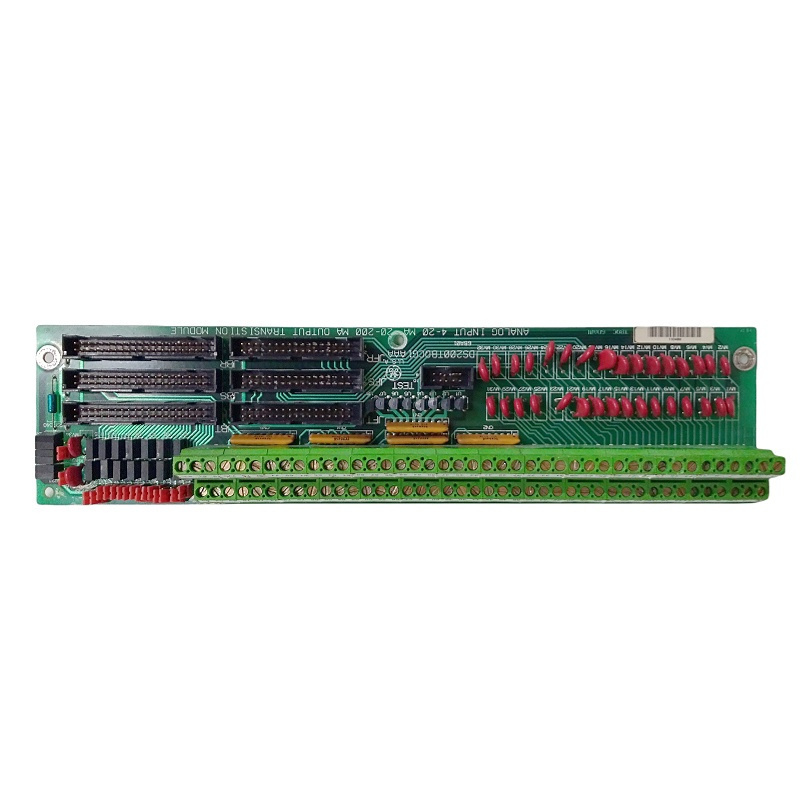

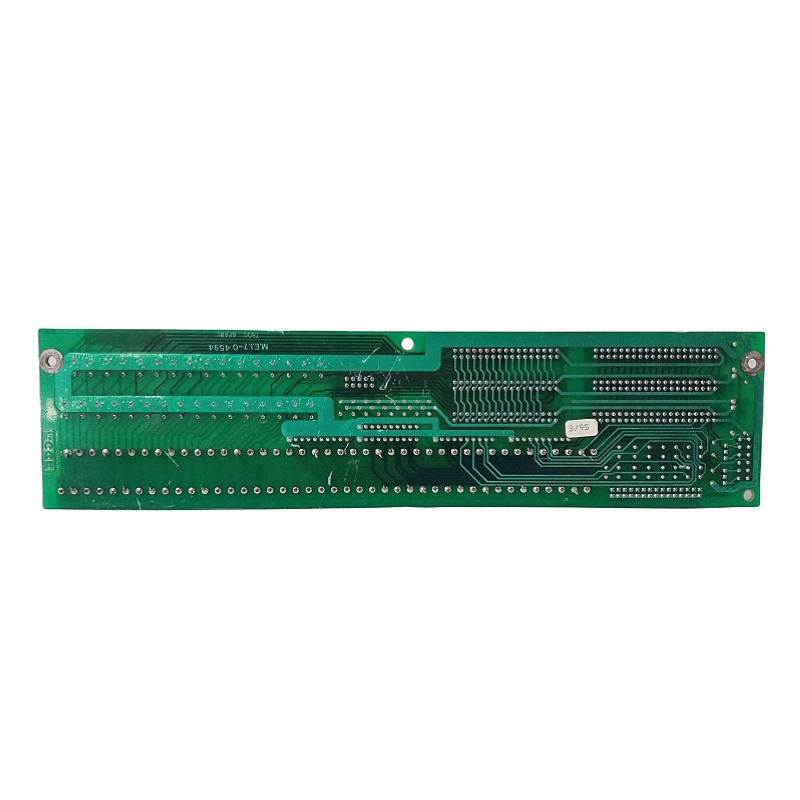

The GE DS200TBQCG1A is an analog input/output termination board designed for the GE Mark V SPEEDTRONIC turbine control system. It provides an interface between field wiring and the TCQA analog processing boards, supporting signal transmission for turbine monitoring and control.
The board handles 4–20 mA analog inputs, LVDT/R position feedback signals, and milliamp output connections. Its terminal arrangement helps organize field wiring and supports reliable integration within turbine control cabinets.
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | General Electric (GE) |
| Product Type | Analog I/O Termination Board |
| Series | Mark V SPEEDTRONIC |
| Functional Acronym | TBQC |
| Terminal Blocks | 2 |
| Terminals per Block | 83 |
| Total Terminals | 166 |
| Connectors | Three 40-pin and three 34-pin connectors |
| Configuration | Hardware jumpers |
Key Features
- Analog signal interfacing: Supports 4–20 mA inputs and compatible milliamp outputs.
- Position feedback connections: Interfaces with LVDT/R position signals.
- High-density termination: Provides 166 field wiring connection points.
- Flexible configuration: Jumpers support specific current-range settings.
- Control system integration: Connects field signals with compatible TCQA boards.
Applications
This board is used in gas turbine and steam turbine control systems, particularly in power generation facilities. It supports analog instrumentation, valve-position feedback, and related control signal routing in compatible GE Mark V installations.
Installation and Maintenance
Verify the board revision, terminal assignments, jumper positions, and TCQA compatibility before installation. Label existing wires before removal, inspect connectors for damage, and follow the system wiring diagrams. Qualified personnel should perform replacement and testing according to approved maintenance procedures.
